Electrical Component Locations
ELECTRICAL COMPONENT LOCATIONS
| Component | Location | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Central Processing Unit | Behind Left Kick Panel, On Joint Box | ||||||||
| Door Lock Link Switch | Integral Part Of Door Lock Actuator | ||||||||

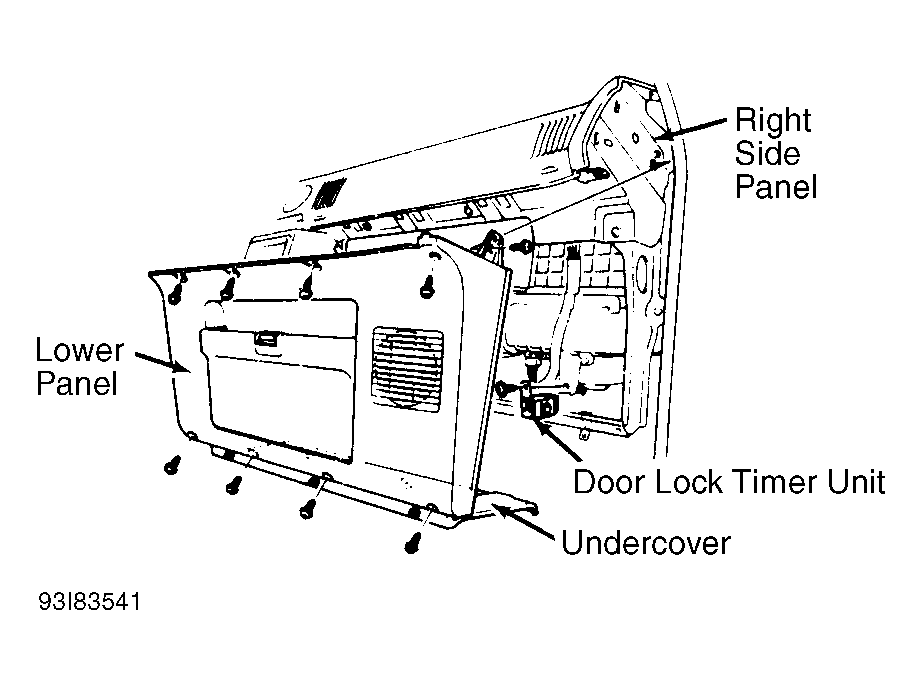

| Door Lock Timer Unit | (1) On Blower Motor Case | ||||||||
| Keyless Unit | |||||||||
| 1995 Models | |||||||||
| Front | (2) Above Rear View Mirror, In Light Assembly | ||||||||
| Rear | (3) Behind Right "D" Pillar Trim | ||||||||
| 1996 Models | Behind Glove Box | ||||||||
|
|||||||||
