Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

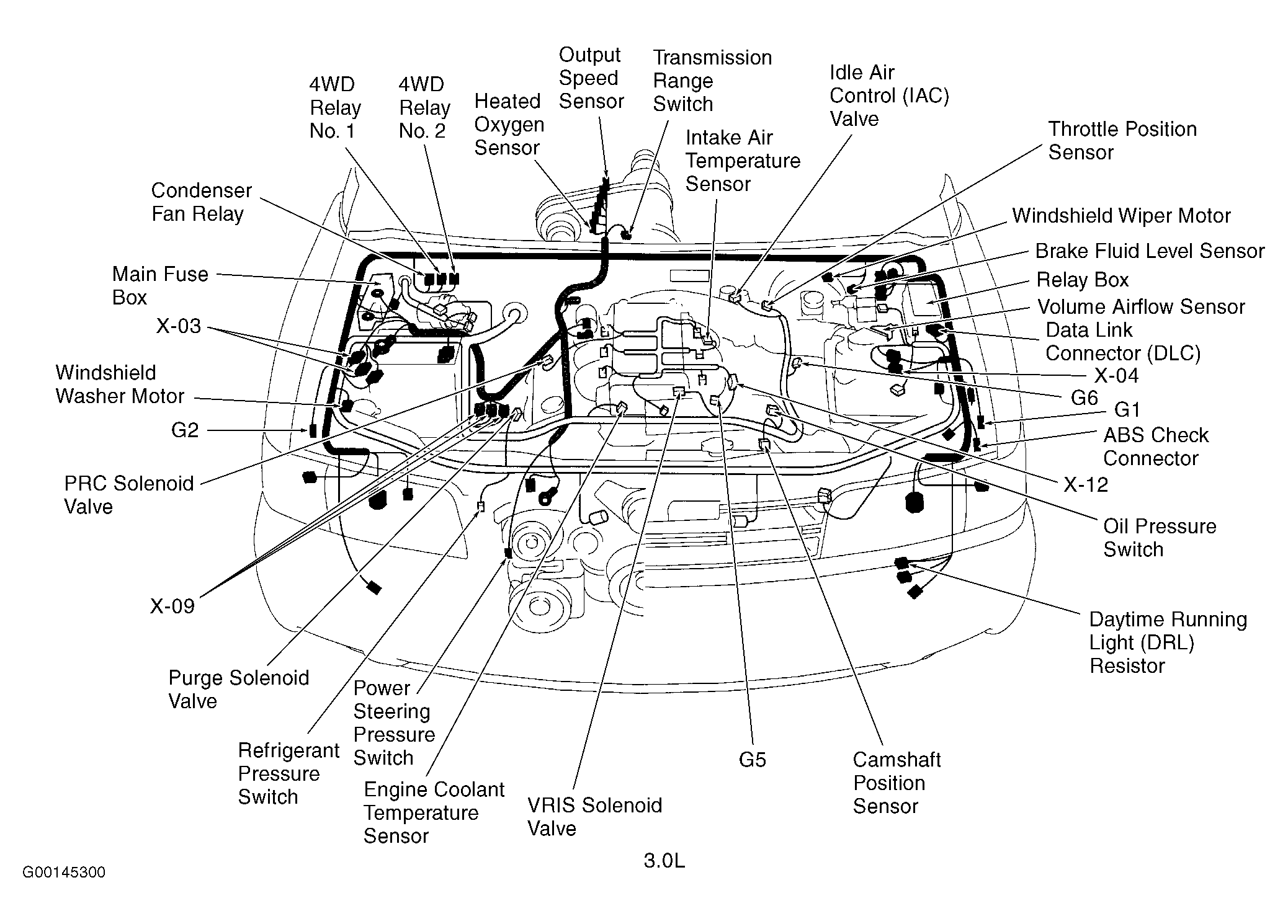

Fig 1: Engine Compartment (3.0L) (1995)
G00145300

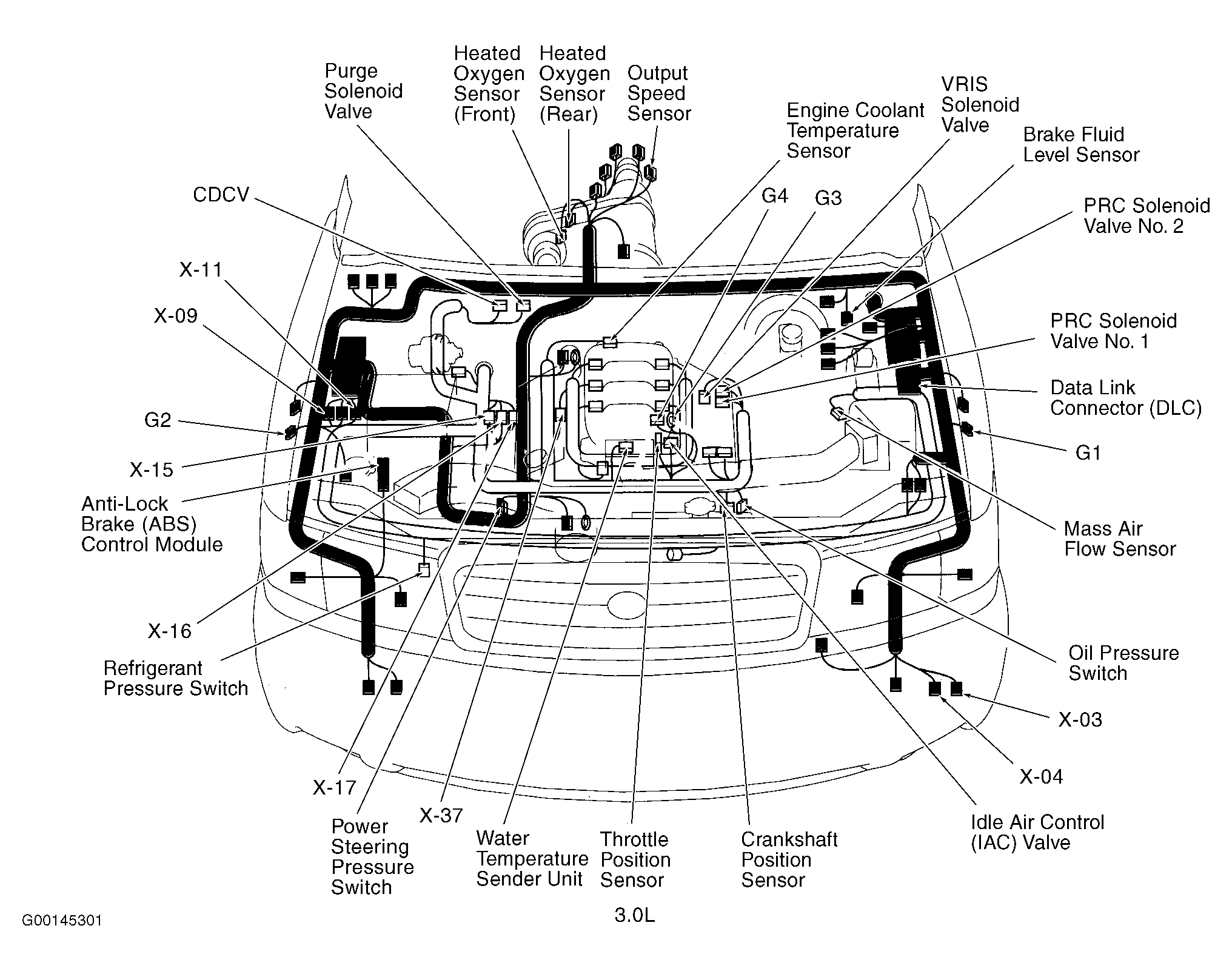

Fig 2: Engine Compartment (3.0L) (1996)
G00145301

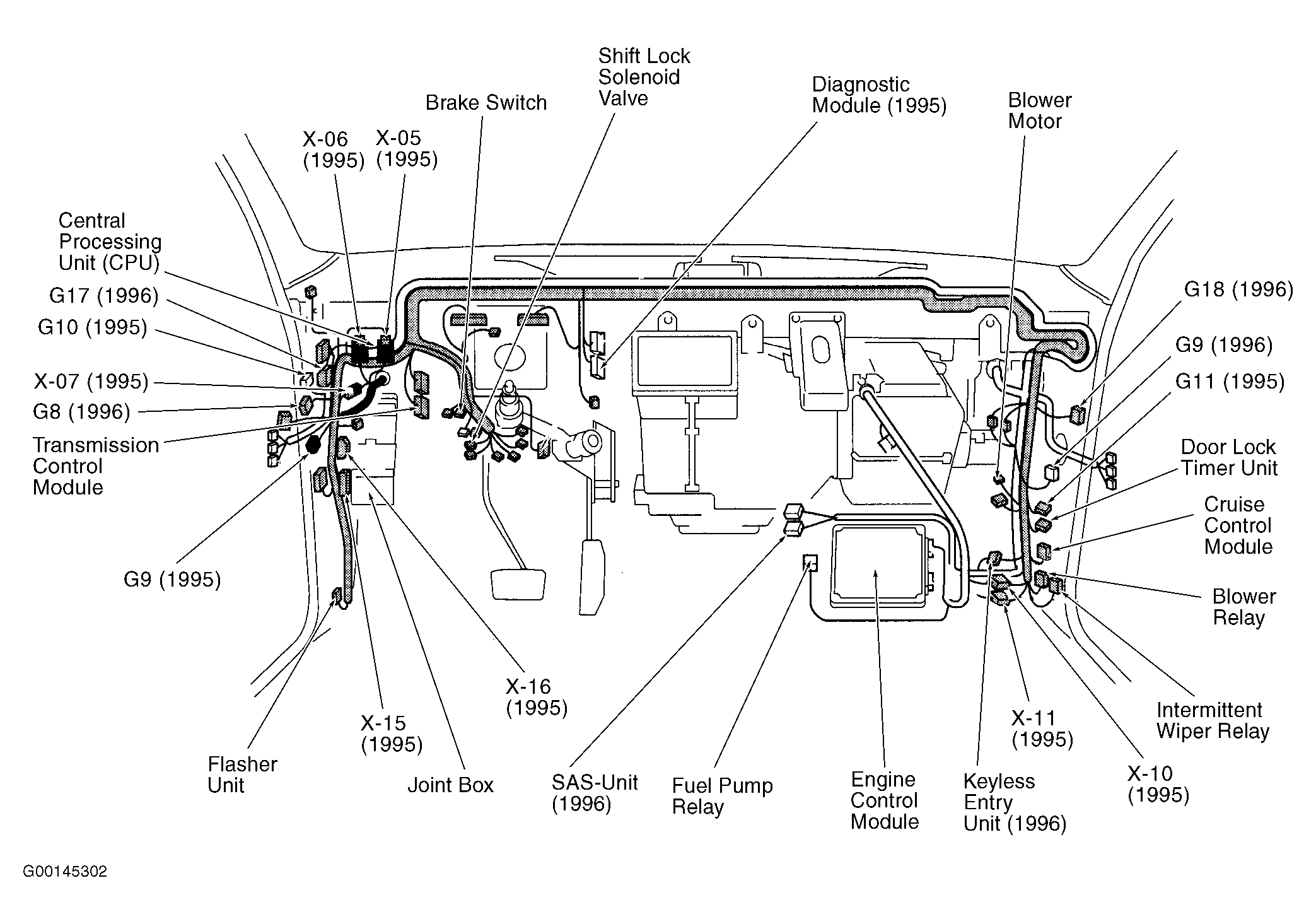

Fig 3: Dash
G00145302

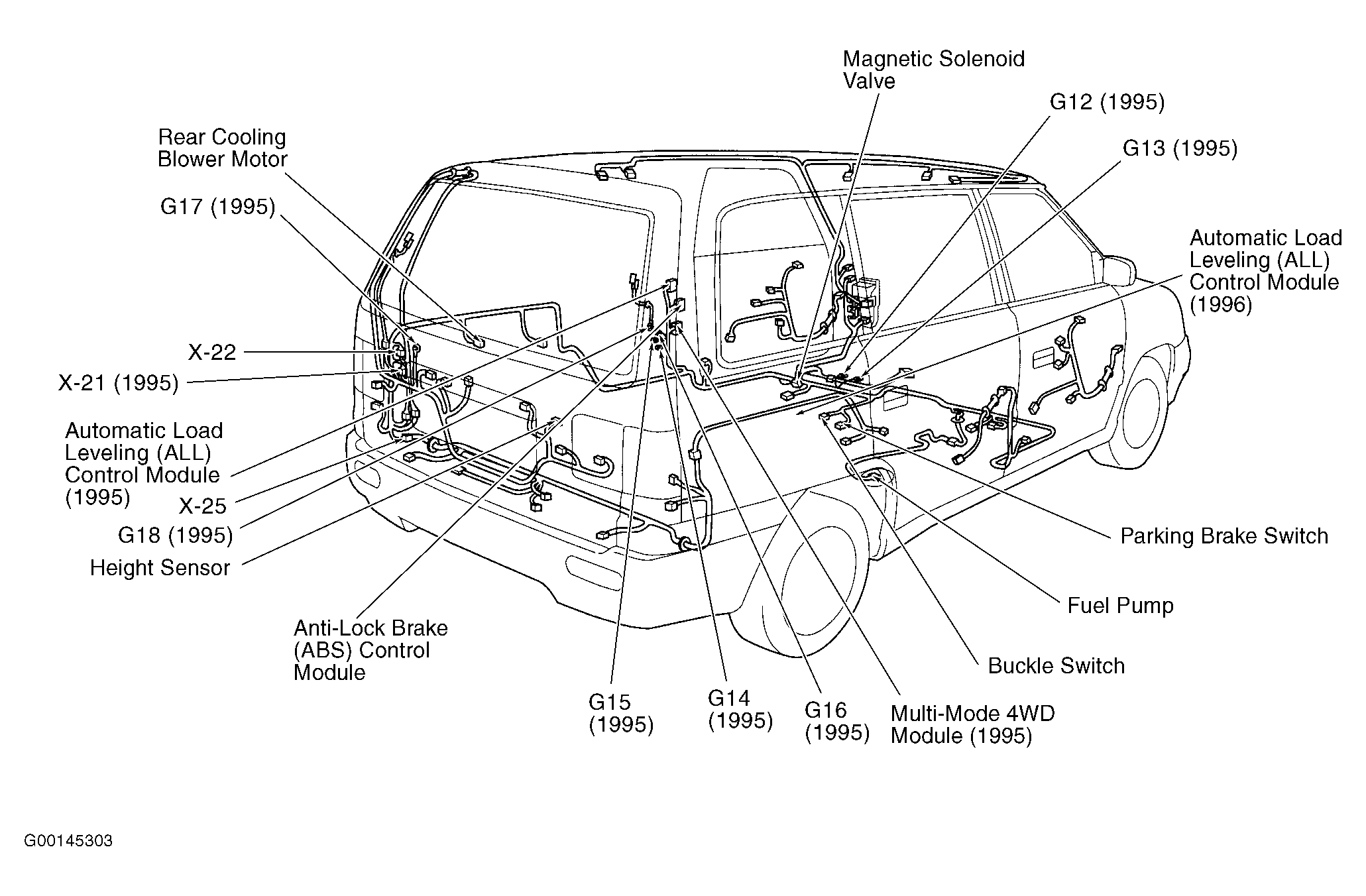

Fig 4: Right Side Of Vehicle
G00145303
