A/C Compressor

Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS  . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

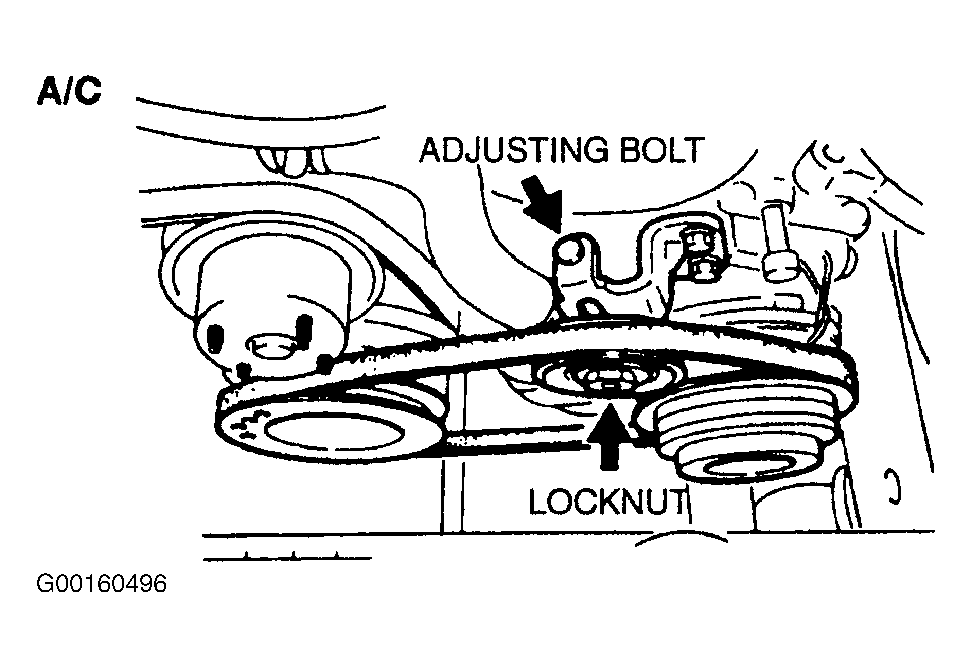

Fig 1: Adjusting A/C Compressor Belt

Courtesy of MAZDA MOTORS CORP.
