DTC P0110: Intake Air Temperature CKT Malfunction
DTC P0110: Intake Air Temperature CKT Malfunction

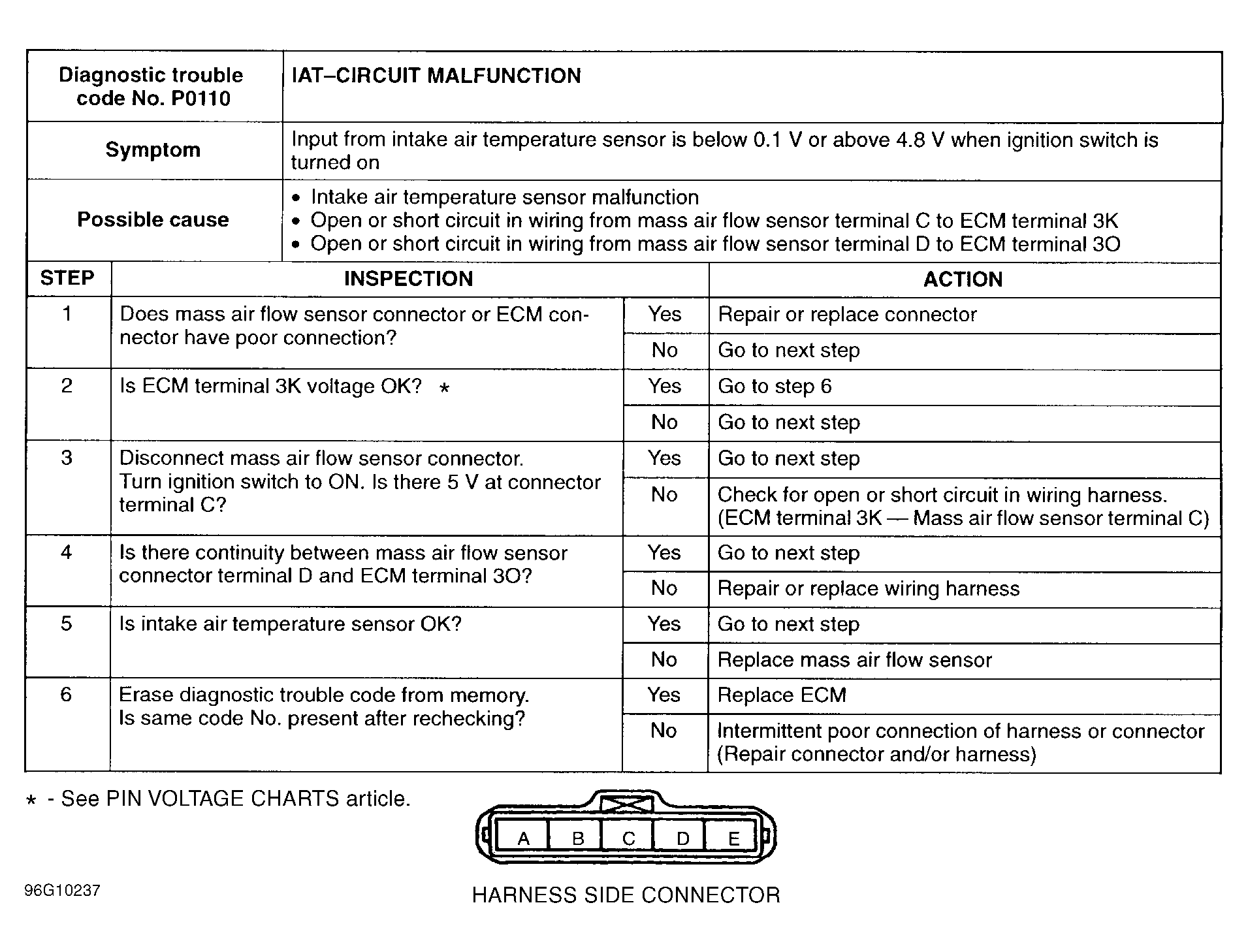

Fig 1: DTC P0110 Intake Air Temperature CKT Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
