Mazda
›
1996
›
MPV DX
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Diagnostic Trouble Code Charts
›
DTC P0130: Oxygen Sensor CKT Malfunction
DTC P0130: Oxygen Sensor CKT Malfunction

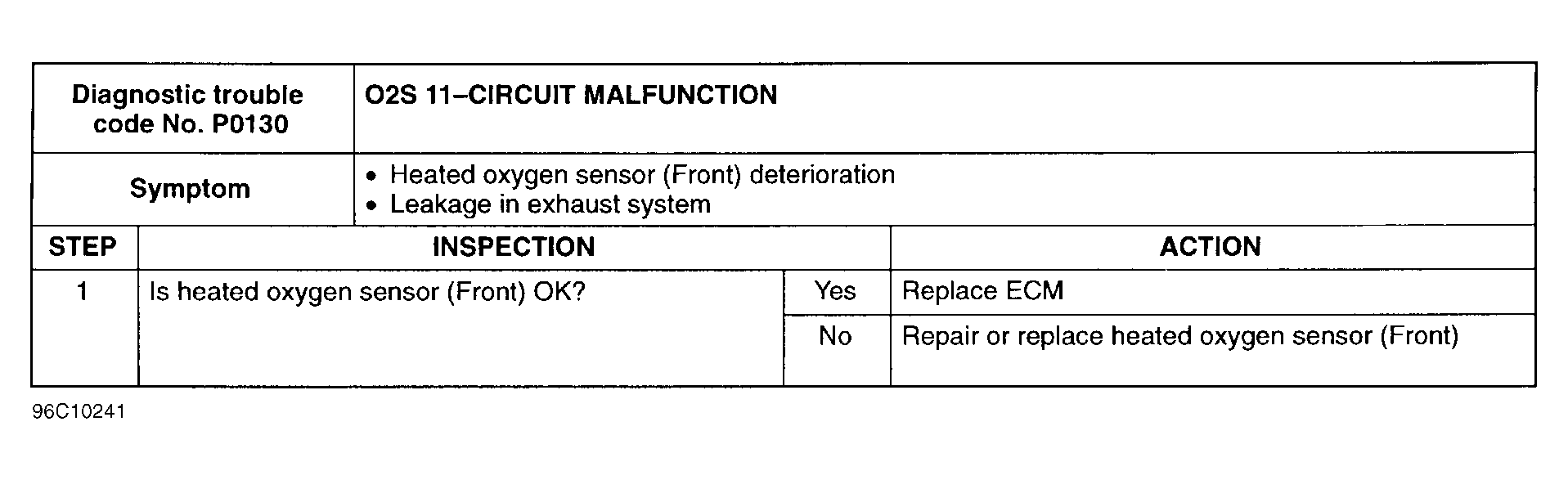

Fig 1: DTC P0130 Oxygen Sensor CKT Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
