DTC P0170: Fuel Trim Malfunction
DTC P0170: Fuel Trim Malfunction

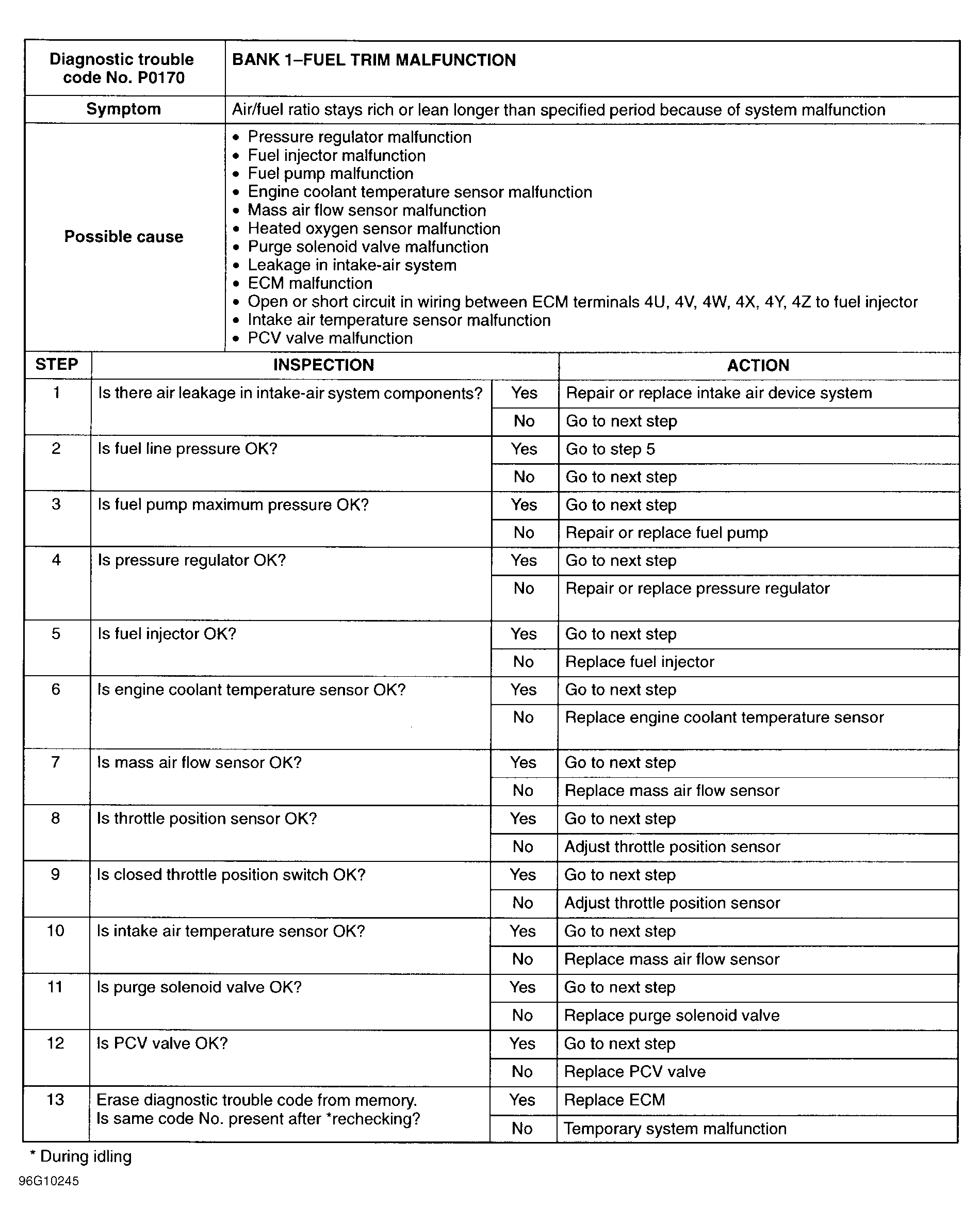

Fig 1: DTC P0170 Fuel Trim Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
