DTC P1110: Intake Air Temperature Sensor - Dynamic Chamber
DTC P1110: Intake Air Temperature Sensor - Dynamic Chamber

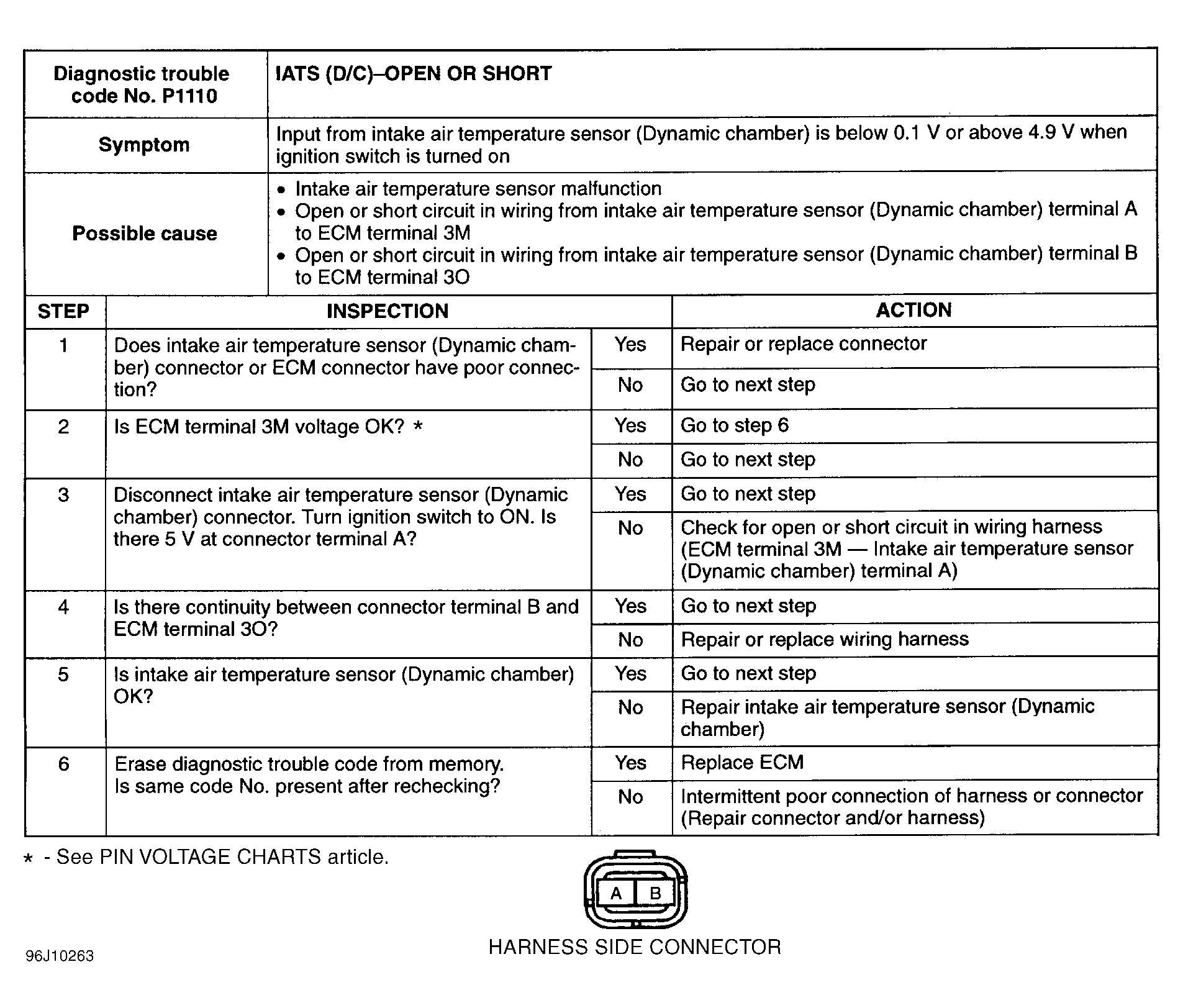

Fig 1: DTC P1110 Intake Air Temperature Sensor - Dynamic Chamber
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
