DTC P1170: Front Heated Oxygen Sensor - Inversion
DTC P1170: Front Heated Oxygen Sensor - Inversion

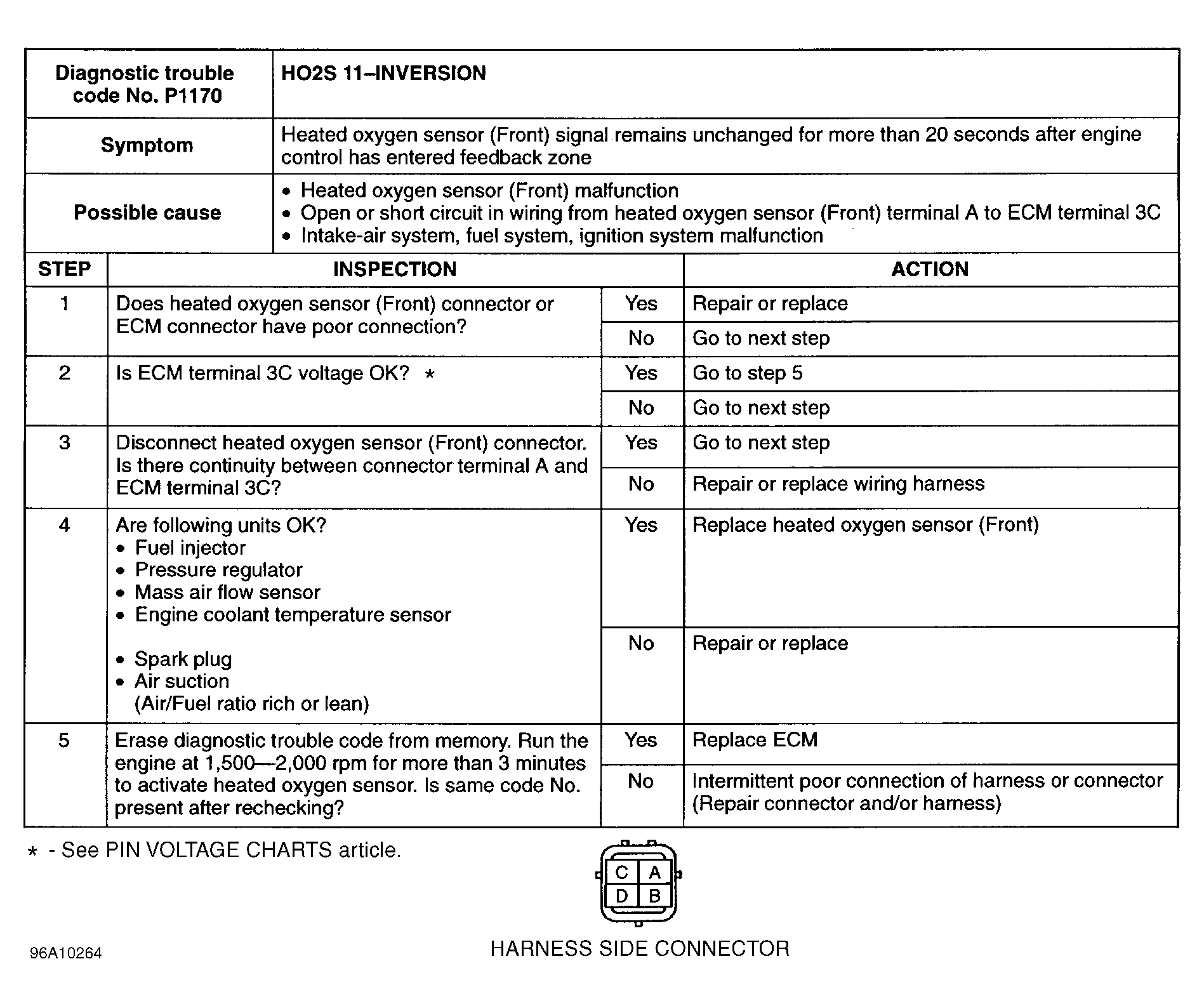

Fig 1: DTC P1170 Front Heated Oxygen Sensor - Inversion
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
