DTC P1196: Ignition Switch - Starter
DTC P1196: Ignition Switch - Starter

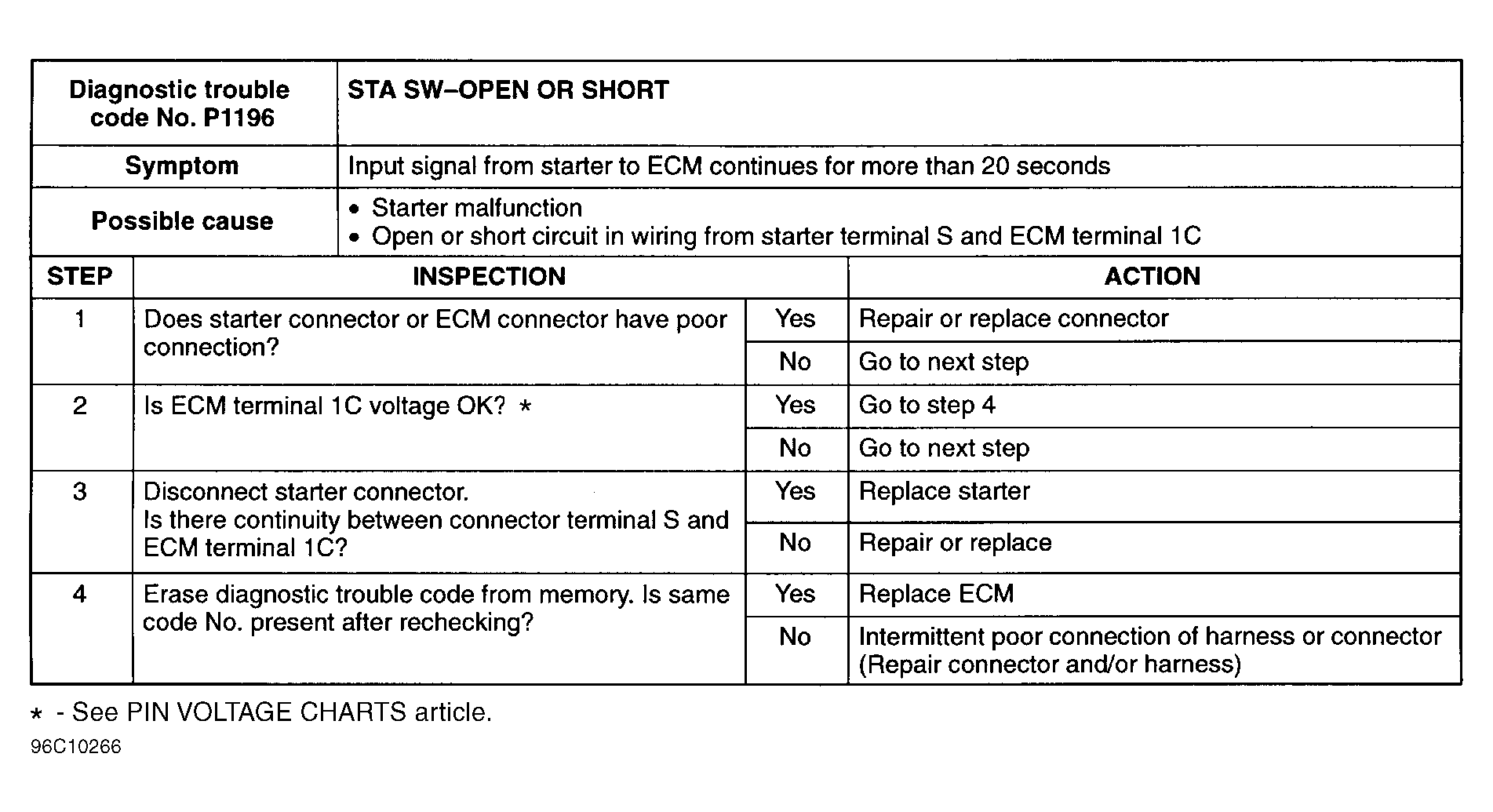

Fig 1: DTC P1196 Ignition Switch - Starter
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
