Outer Scuff Plate Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

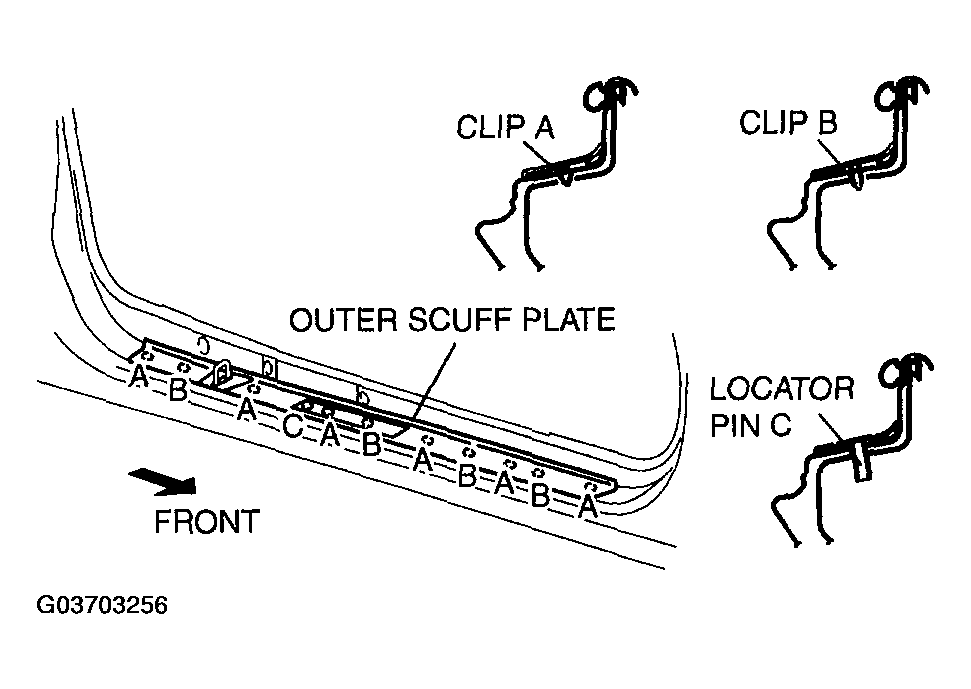

- Pull the outer scuff plate upward, detach clips A, B, and locator pin C from the body, and then remove the outer scuff plate.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
