Service Point Locations

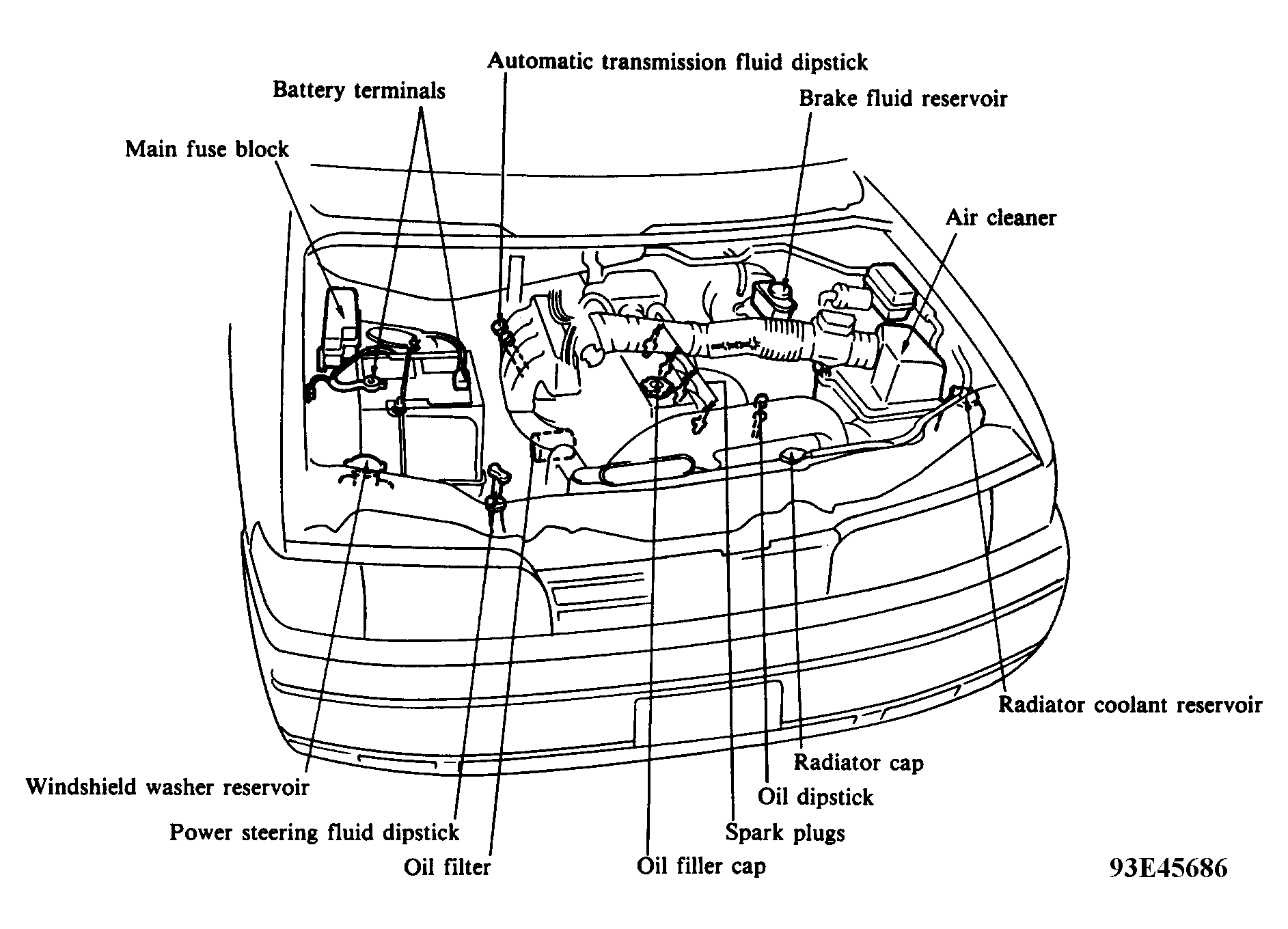

Fig 1: Service Point Locations (3.0L V6 Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

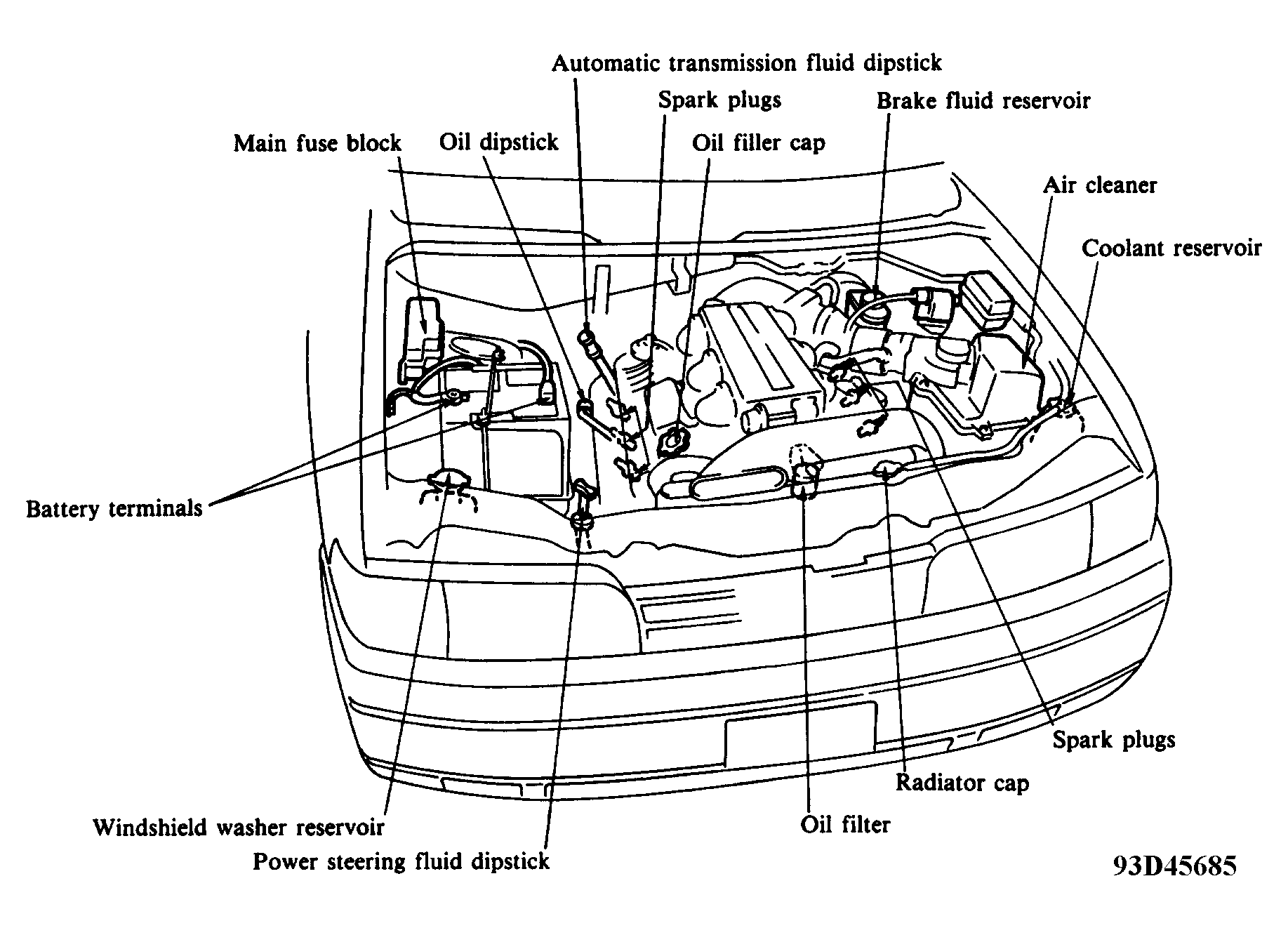

Fig 2: Service Point Locations (2.6L 4-Cylinder Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

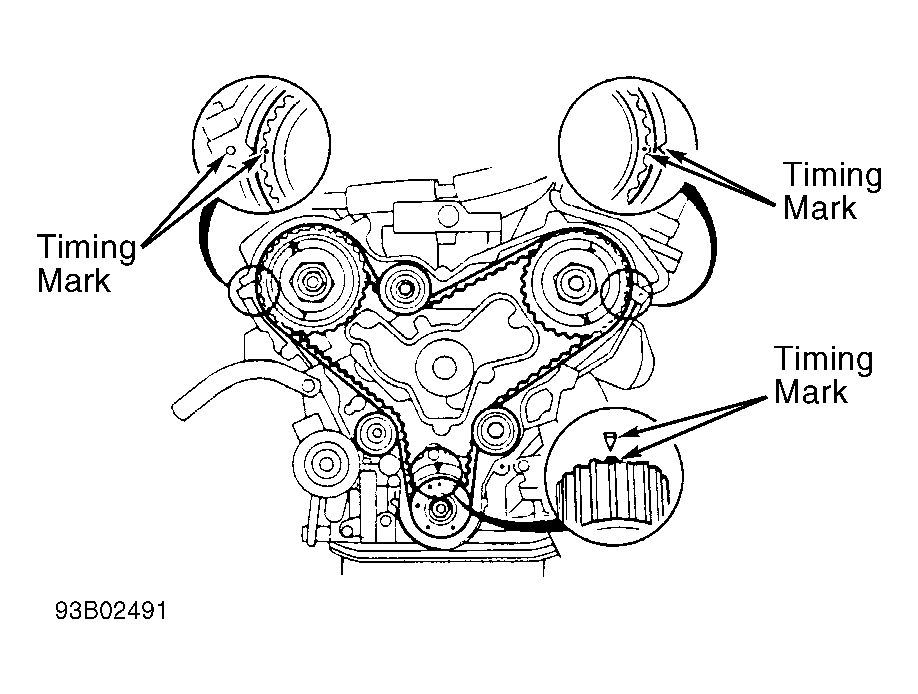

Fig 3: Camshaft Timing Belt Alignment Marks (3.0L V6)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

NOTE: For more information regarding camshaft timing belt service refer to the 3.0L V6 article in the ENGINE MECHANICAL section.
