DTC P0420: Catalyst System Efficiency Below Threshold
DTC P0420: Catalyst System Efficiency Below Threshold

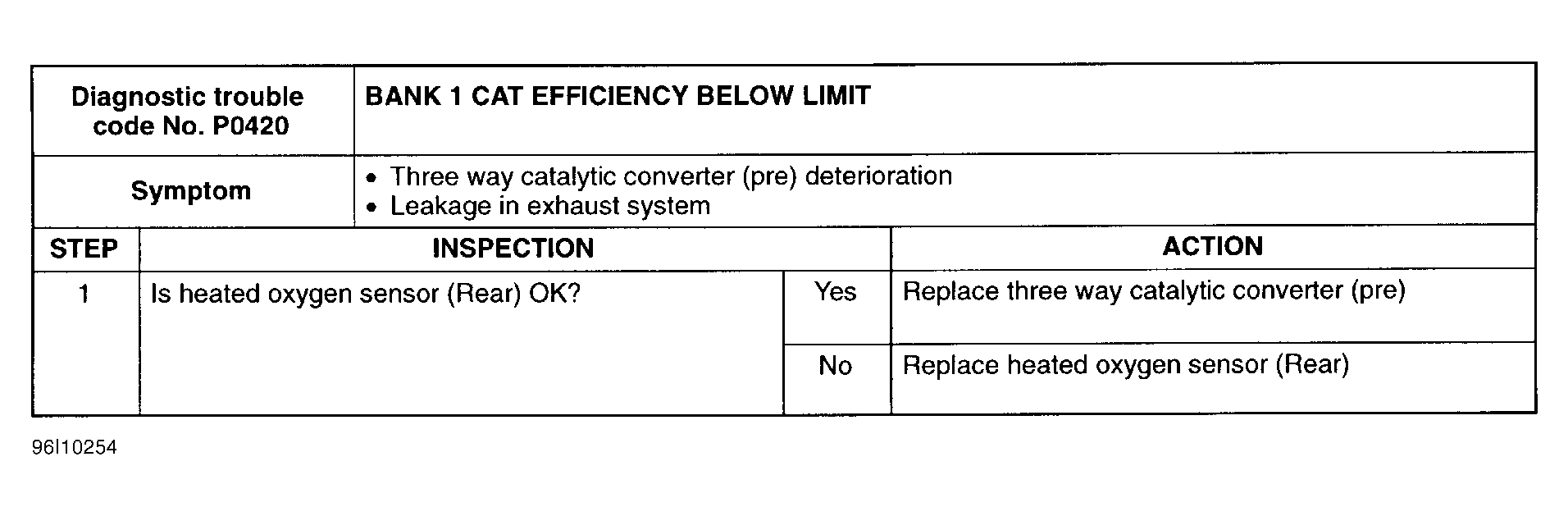

Fig 1: DTC P0420 Catalyst System Efficiency Below Threshold
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
