Engine Controls - Pin Voltage Charts
›
Pin Voltage Charts
Pin Voltage Charts

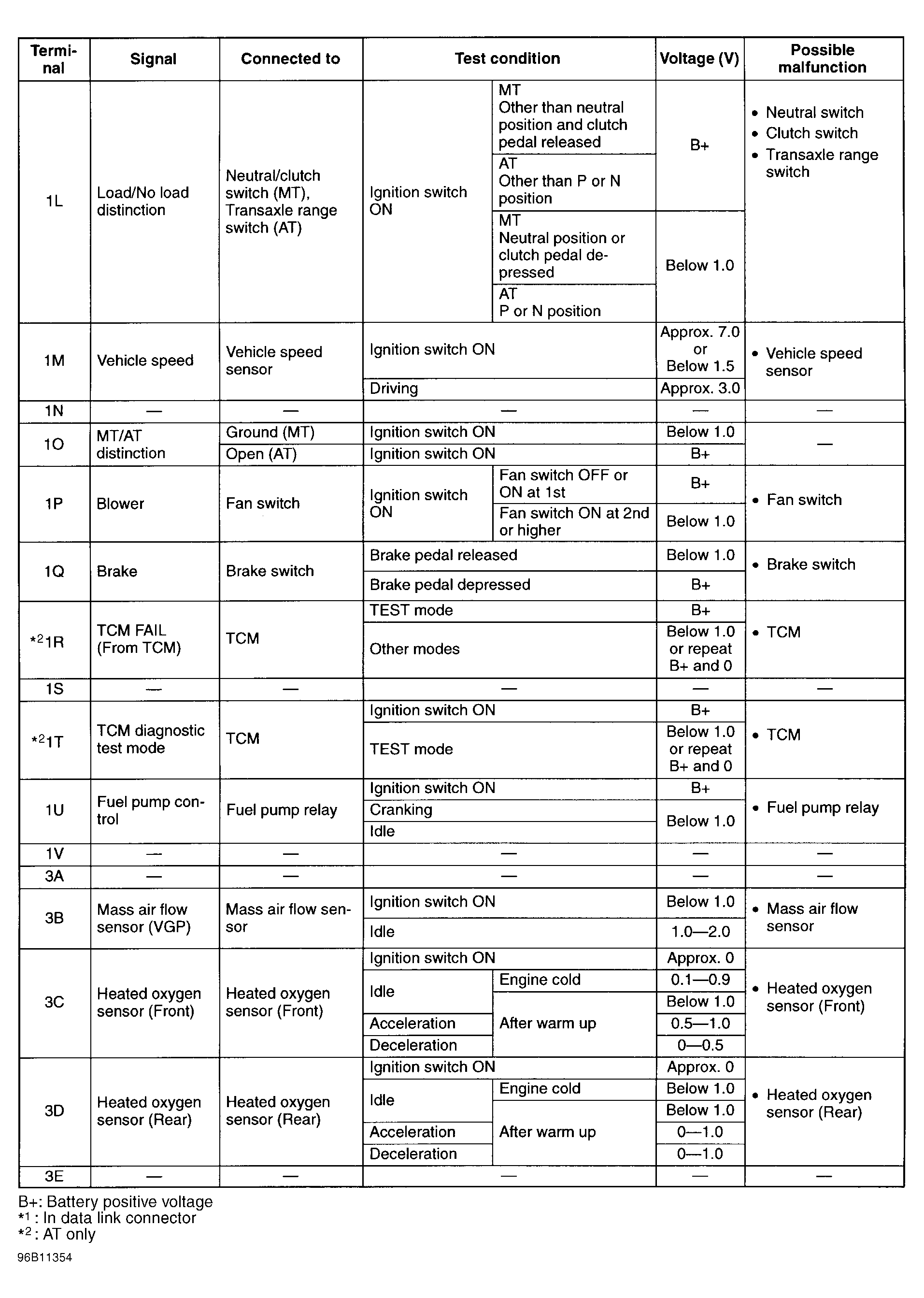

Fig 1: ECM Pin Voltage Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

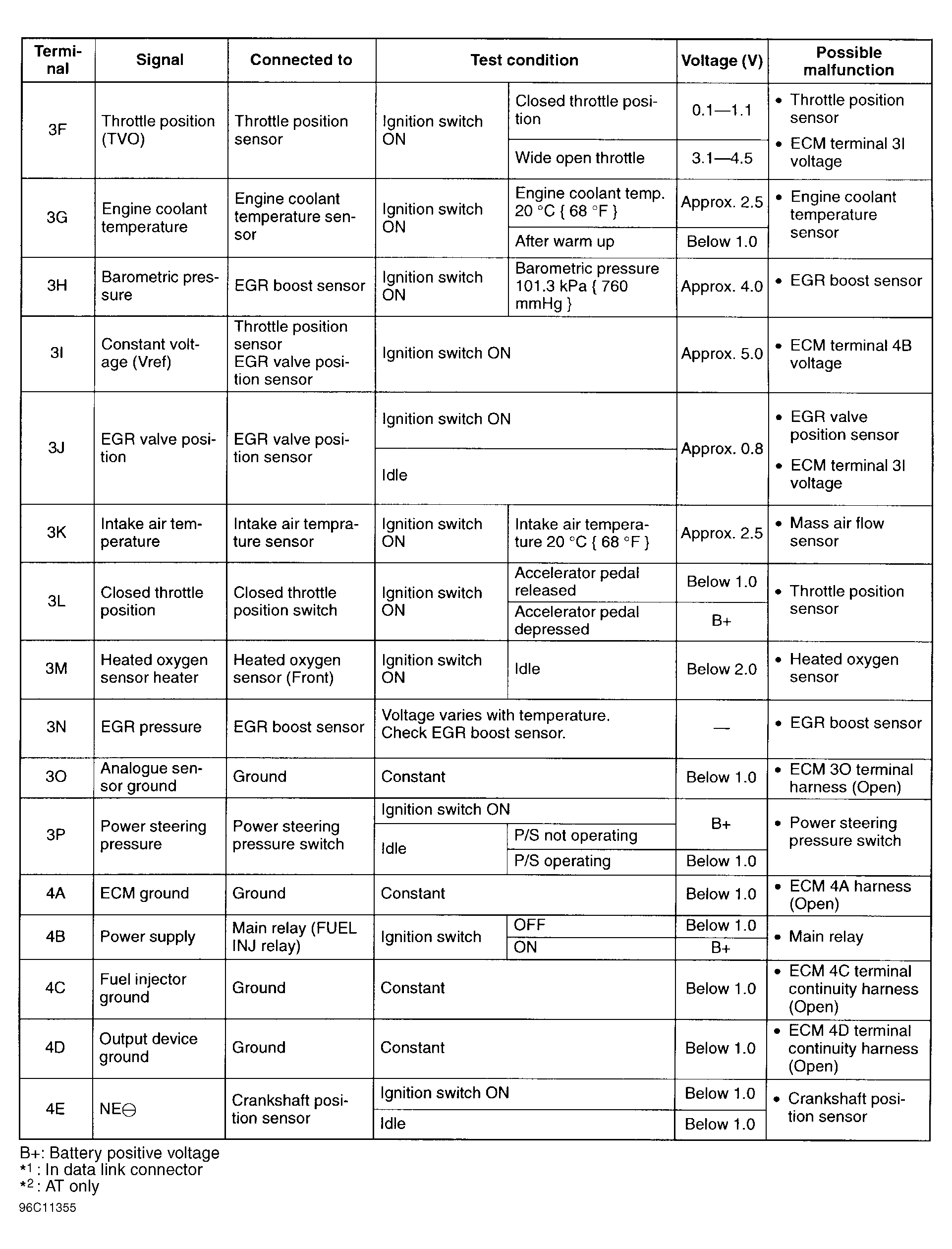

Fig 2: ECM Pin Voltage Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 3: ECM Pin Voltage Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: ECM Pin Voltage Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 5: ECM Connector Terminal Identification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
