DTC P0505: (Idle Control System Malfunction)
DTC P0505: (Idle Control System Malfunction)

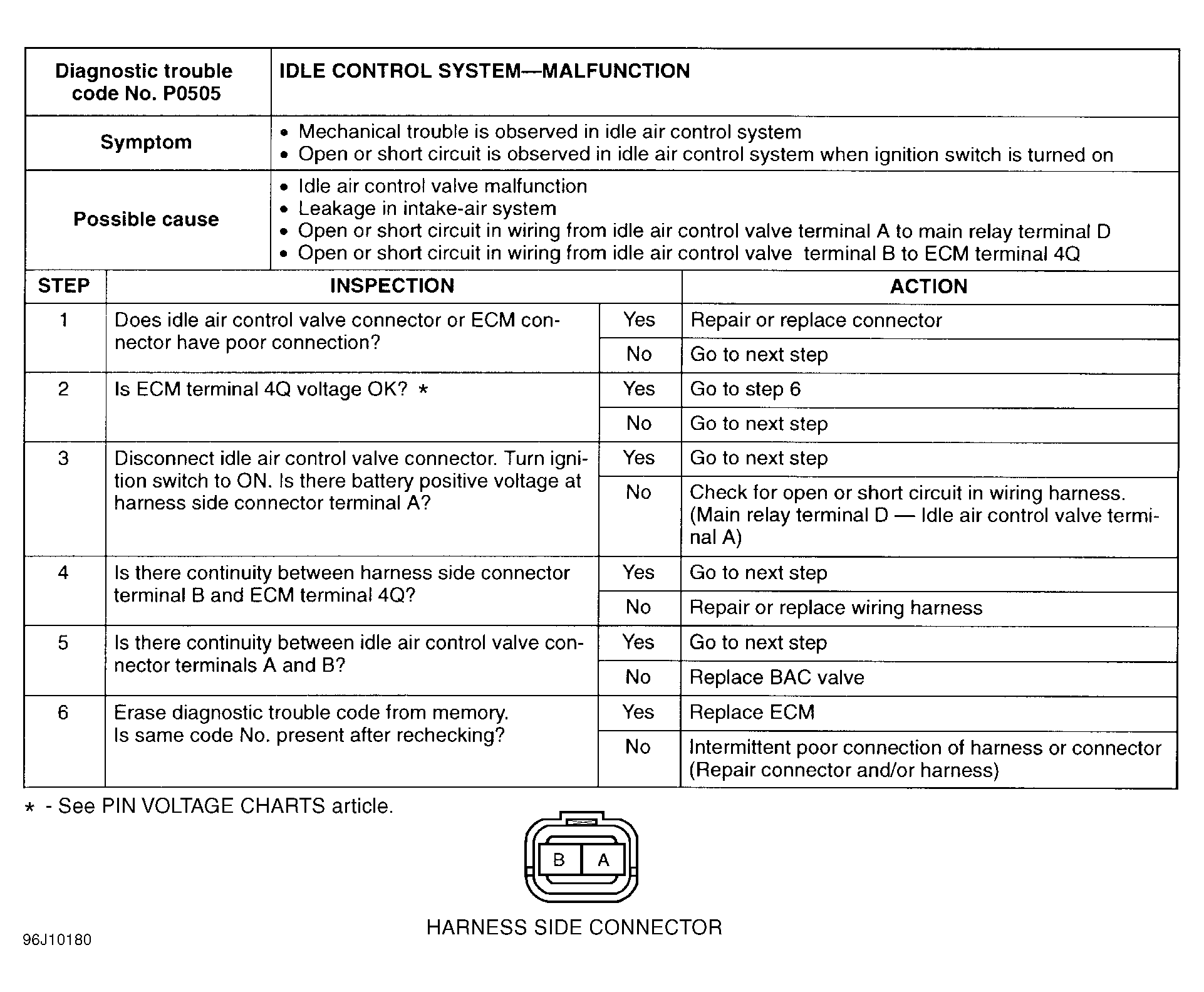

Fig 1: DTC P0505: (Idle Control System Malfunction)
