DTC P1601: (ECM - TCM Communication Error)
DTC P1601: (ECM - TCM Communication Error)

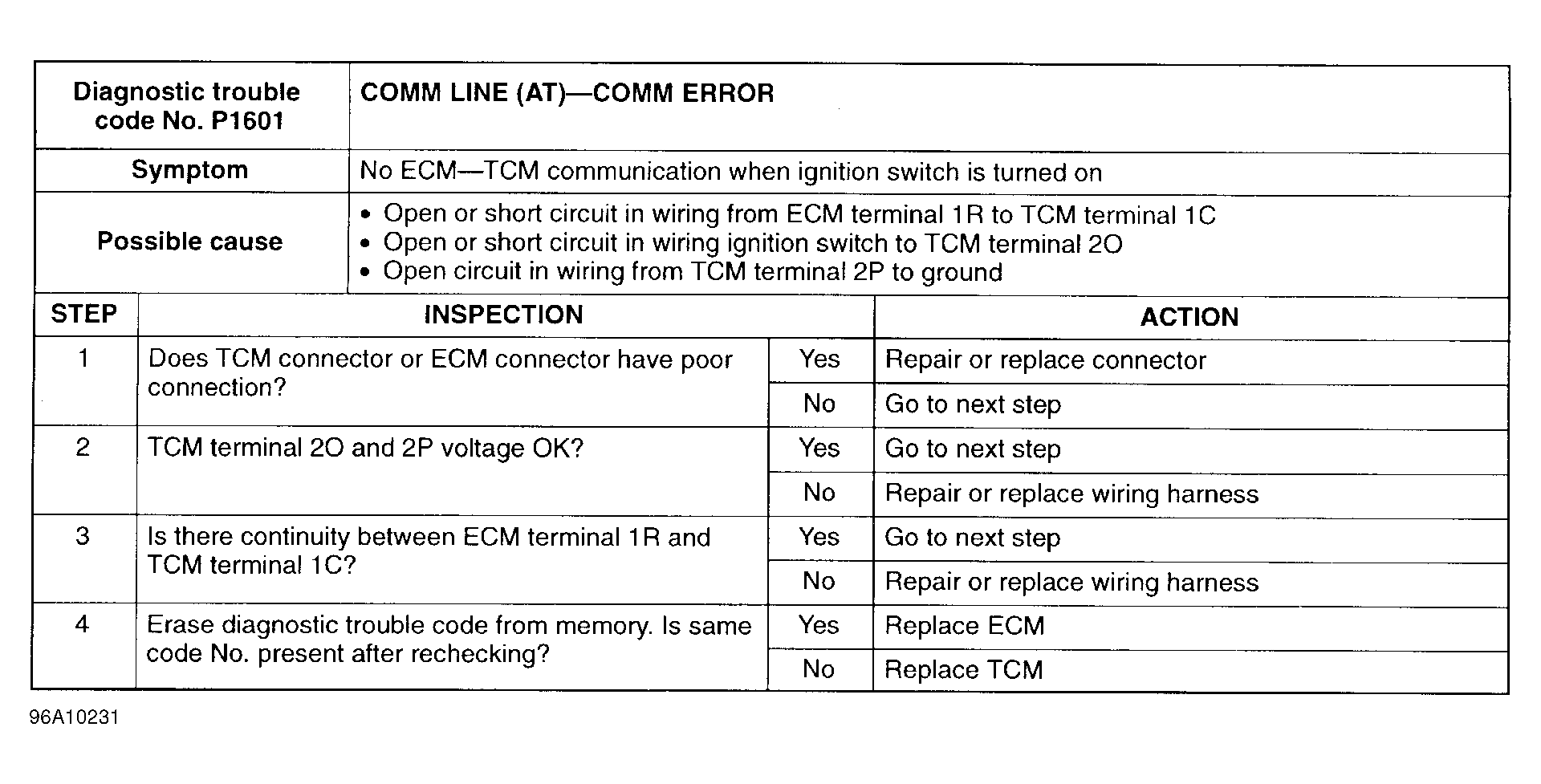

Fig 1: DTC P1601: (ECM - TCM Communication Error)
