Engine Controls - Tests W/Codes - 2.5L
›
Diagnostic Trouble Code Charts
›
DTC P0505: Idle Control System Malfunction
DTC P0505: Idle Control System Malfunction

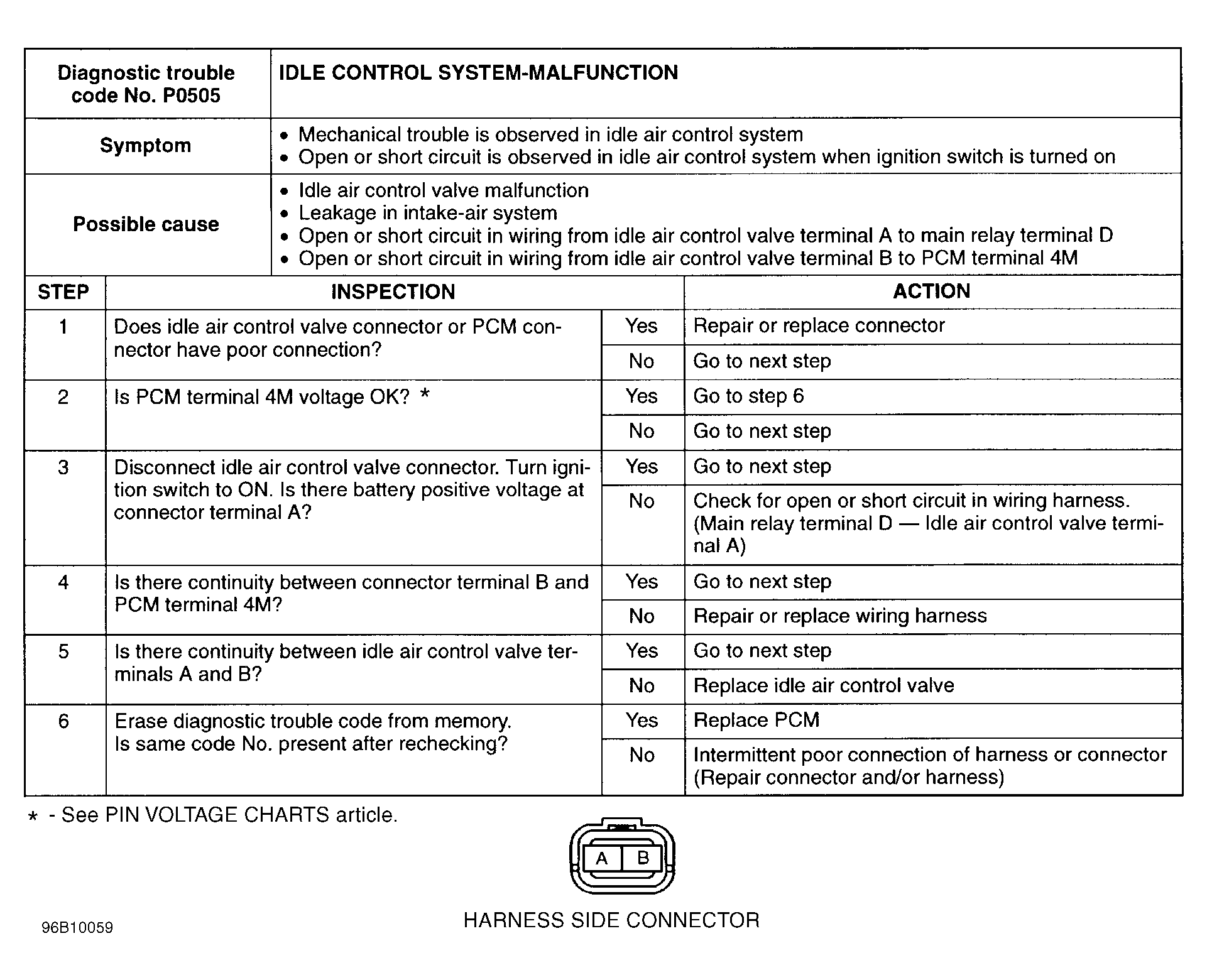

Fig 1: DTC P0505 Idle Control System Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
