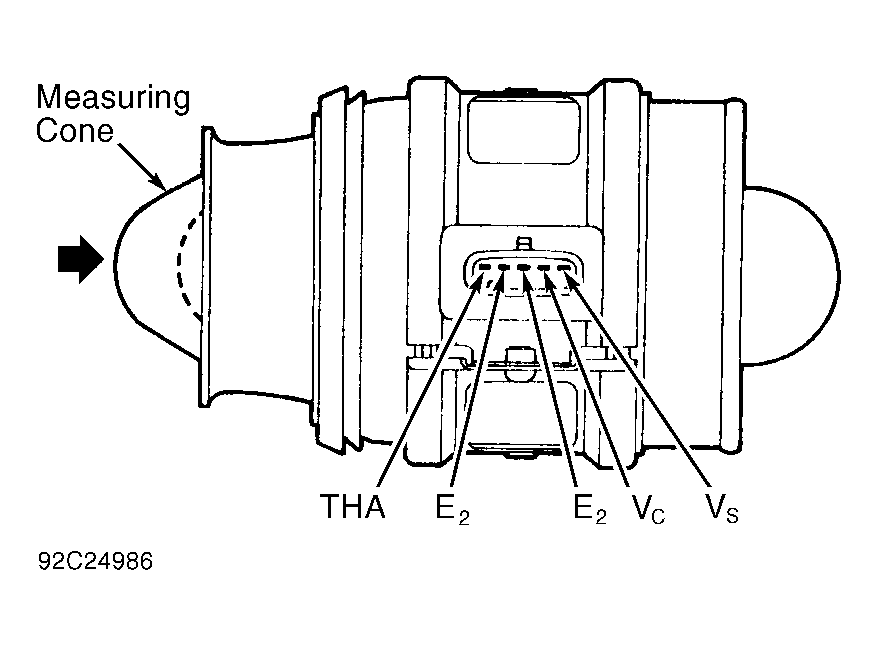

Volume Airflow Sensor
VOLUME AIRFLOW SENSOR TERMINAL RESISTANCE
| Terminals | Fully Closed Ohms | Fully Open Ohms | |||
|---|---|---|---|---|---|
| E2 & Vs | |||||
| 68°F (20°C) | 20-600 | 20-1000 | |||
| E2 & Vc | |||||
| 68°F (20°C) | 200-400 | 200-400 | |||
| E2 & THA (1) | |||||
| -4°F (-20°C) | 10,000-20,000 | 10,000-20,000 | |||
| 68°F (20°C) | 2000-3000 | 2000-3000 | |||
| 140°F (60°C) | 400-700 | 400-700 | |||
|
|||||
