Component Disassembly & Reassembly: Differential: Disassembly

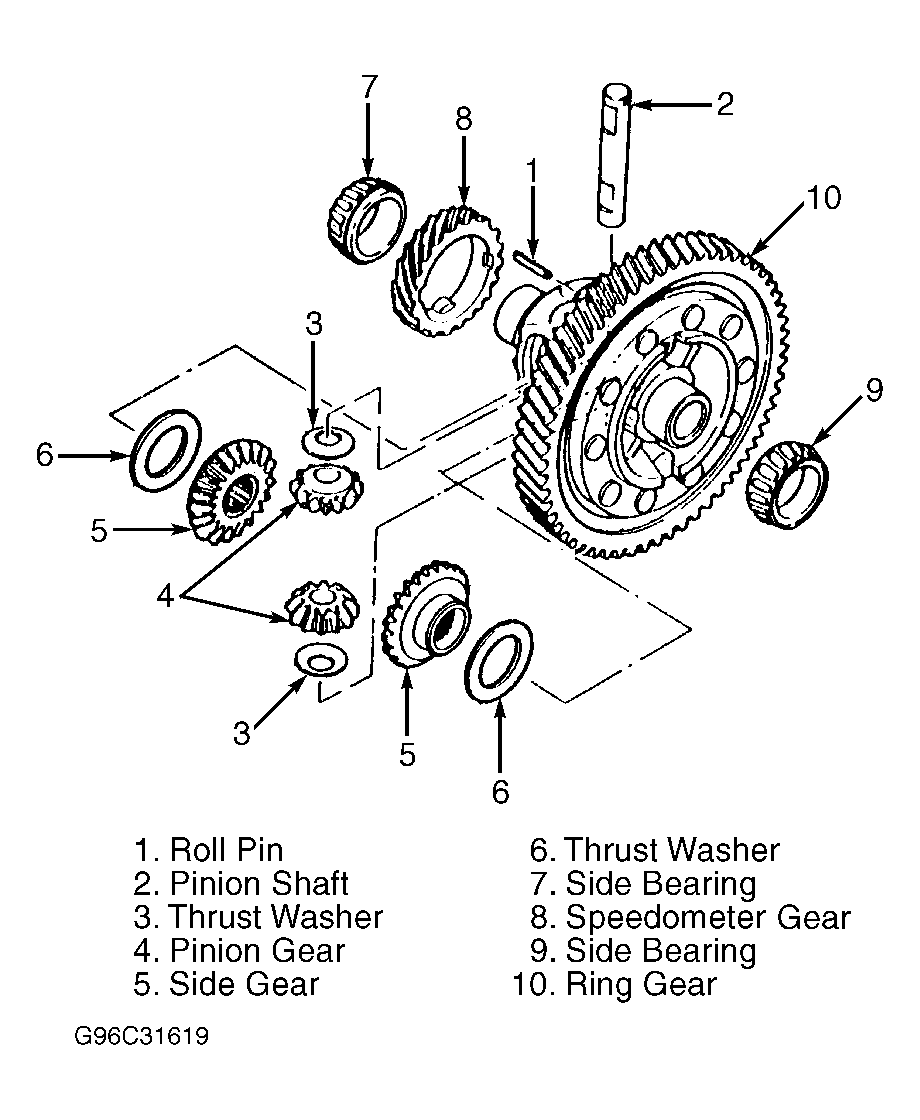

Remove roll pin and pinion shaft. See Figure . Remove pinion gears and rotate thrust washers out of differential housing.
Remove side gears and thrust washers. Using appropriate bearing puller, remove side bearings. DO NOT remove speedometer drive gear unless damaged.
