One Mirror Does Not Operate
- Remove door trim panel. Check power mirror motor harness connector for proper connection. Repair damaged connector if necessary and retest power mirror operation. If connection is okay, go to next step.

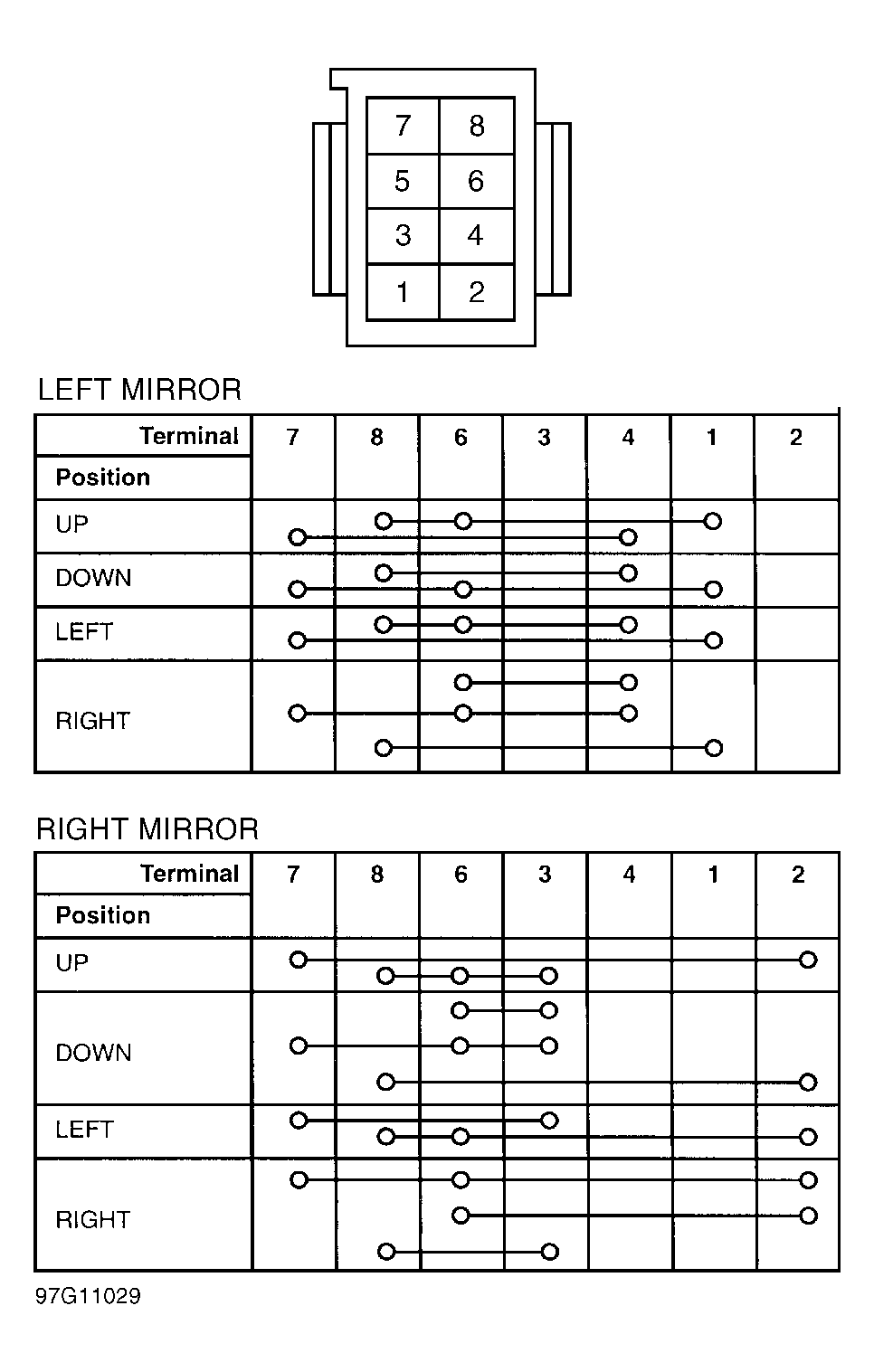

- Disconnect negative battery cable. Check for continuity between terminals of power mirror switch connector and power mirror motor connector. See WIRING DIAGRAMS . If continuity exists, check for continuity between specified terminals of power mirror switch. SeeFigure . Replace power mirror switch as necessary. If continuity does n ot exist, check continuity of power mirror motor. Replace power mirror assembly as necessary.
