Instrument Panel Fuse Block

Instrument panel fuse block is located on driver's side end of instrument panel. See Fig 1 .

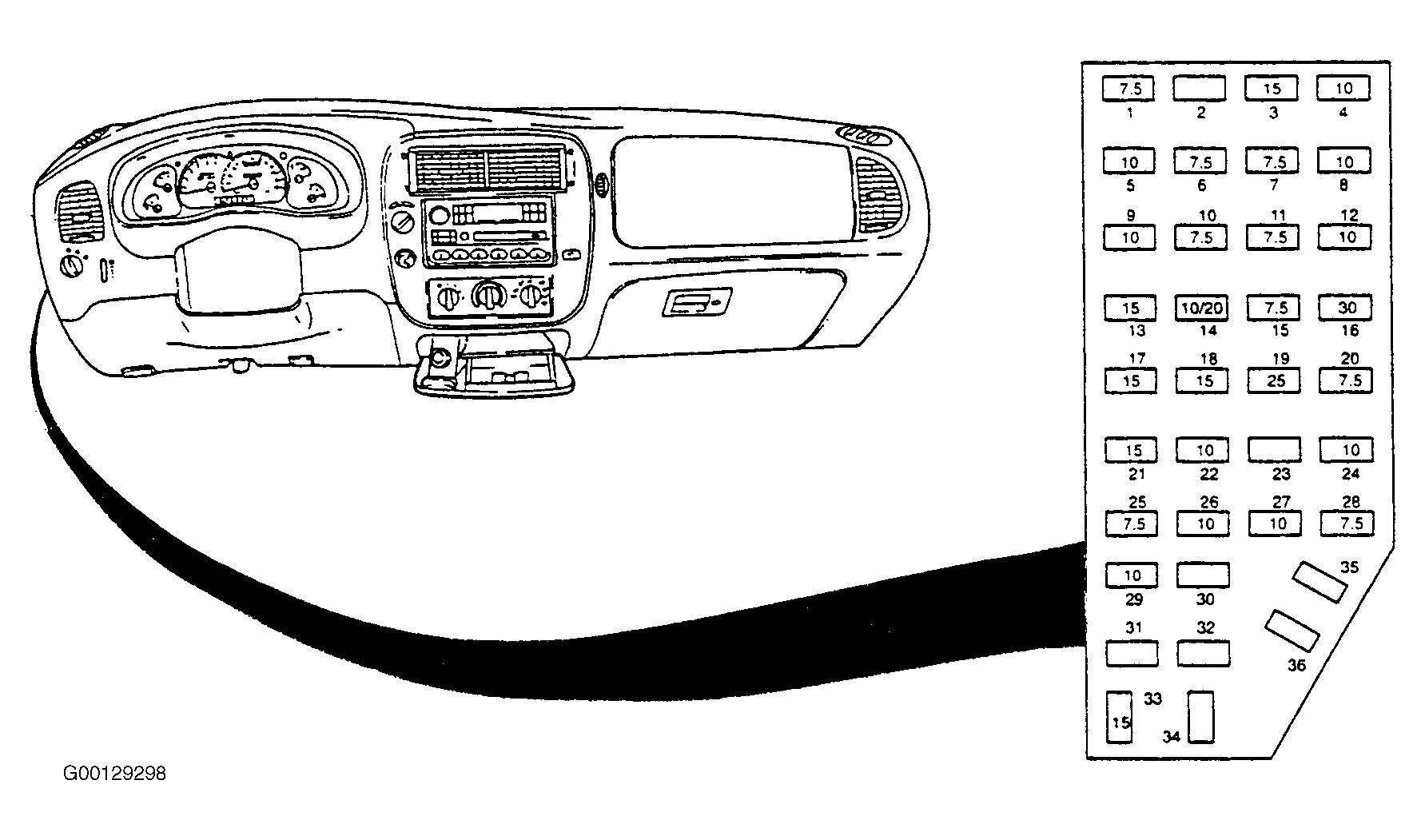

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of MAZDA MOTORS CORP.

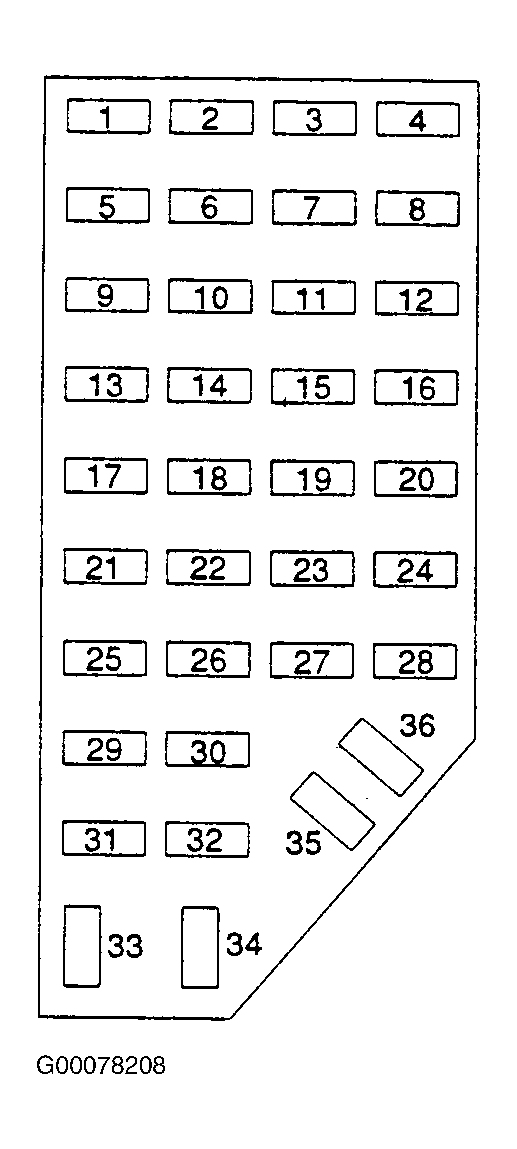

Fig 2: Identifying Instrument Panel Fuse Block Components

Courtesy of MAZDA MOTORS CORP.

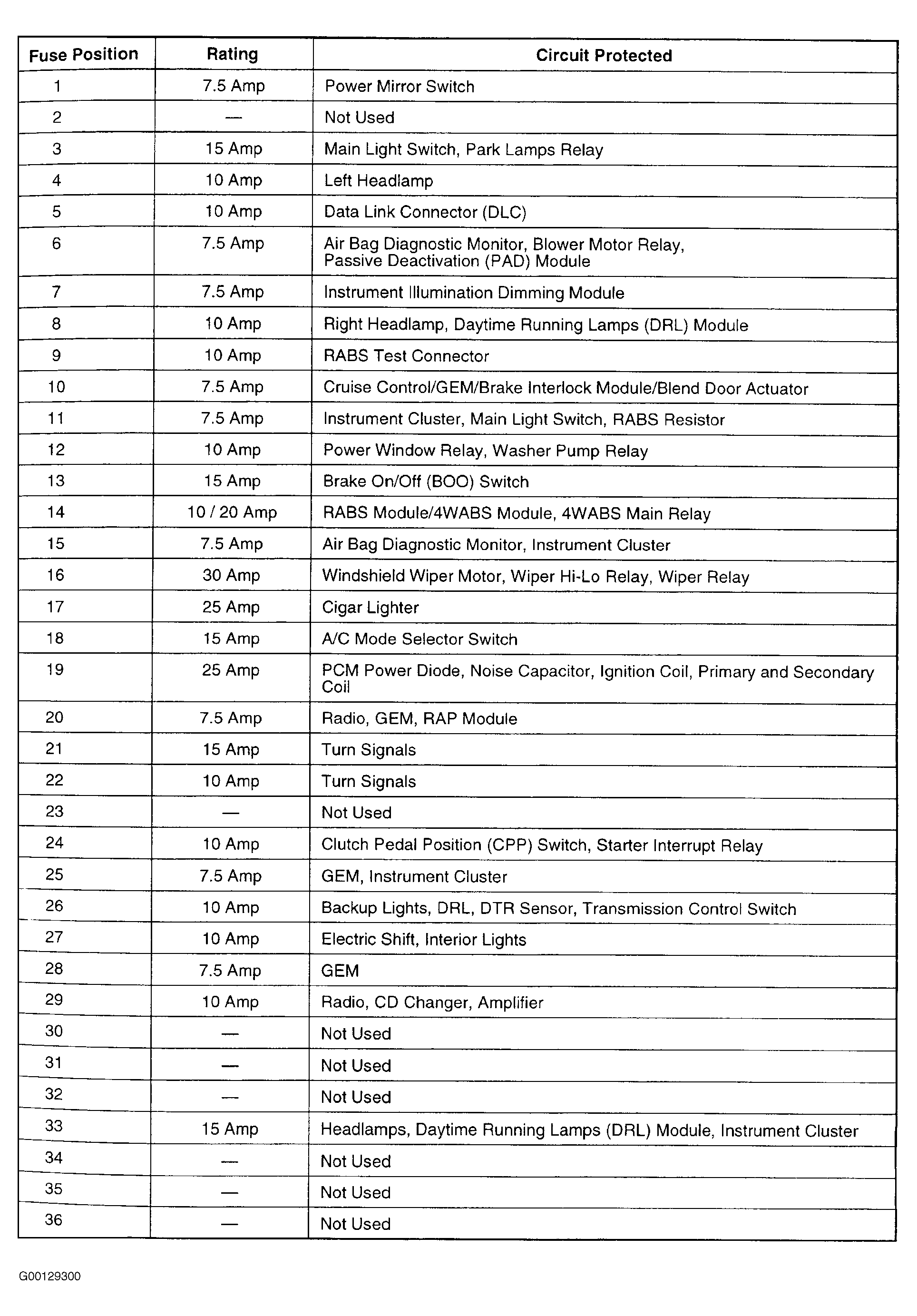

Fig 3: Instrument Panel Fuse Block Legend

Courtesy of MAZDA MOTORS CORP.
