Removal & Installation

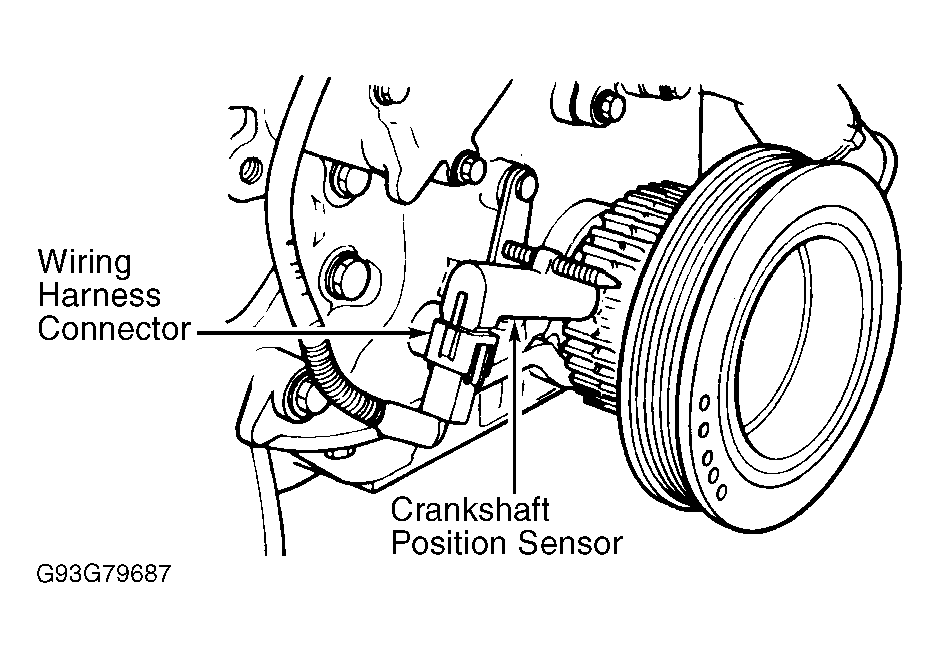

Disconnect negative battery cable. Disconnect crankshaft position sensor connector. See Fig 1 . Remove crankshaft position sensor mounting screws and remove sensor. To install, reverse removal procedure. Tighten screws to specification. See TORQUE SPECIFICATIONS .
