Power Mirror Switch

Disconnect power mirror switch connector (remove power mirror switch if necessary). See POWER MIRROR SWITCH R & I  . With power mirror switch in specified position, check continuity between specified terminals of switch connector. SeeFig 1 or Fig 2 . If continuity is not as specified, replace power mirror switch.

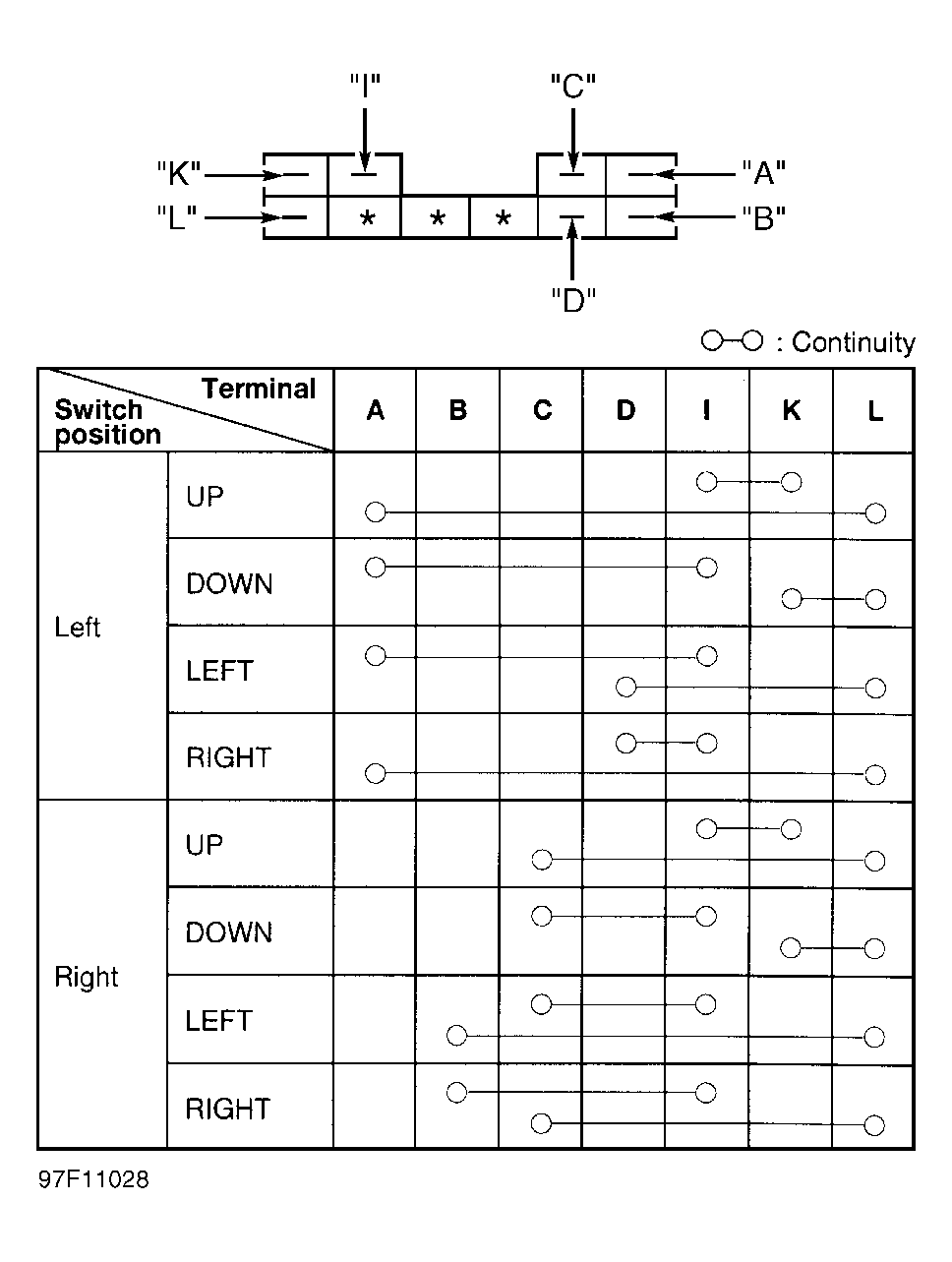

Fig 1: Testing Power Mirror Switch (MX-6)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing Power Mirror Switch (626)

Courtesy of MAZDA MOTORS CORP.
