Maintenance Information
›
Service Point Locations
Service Point Locations

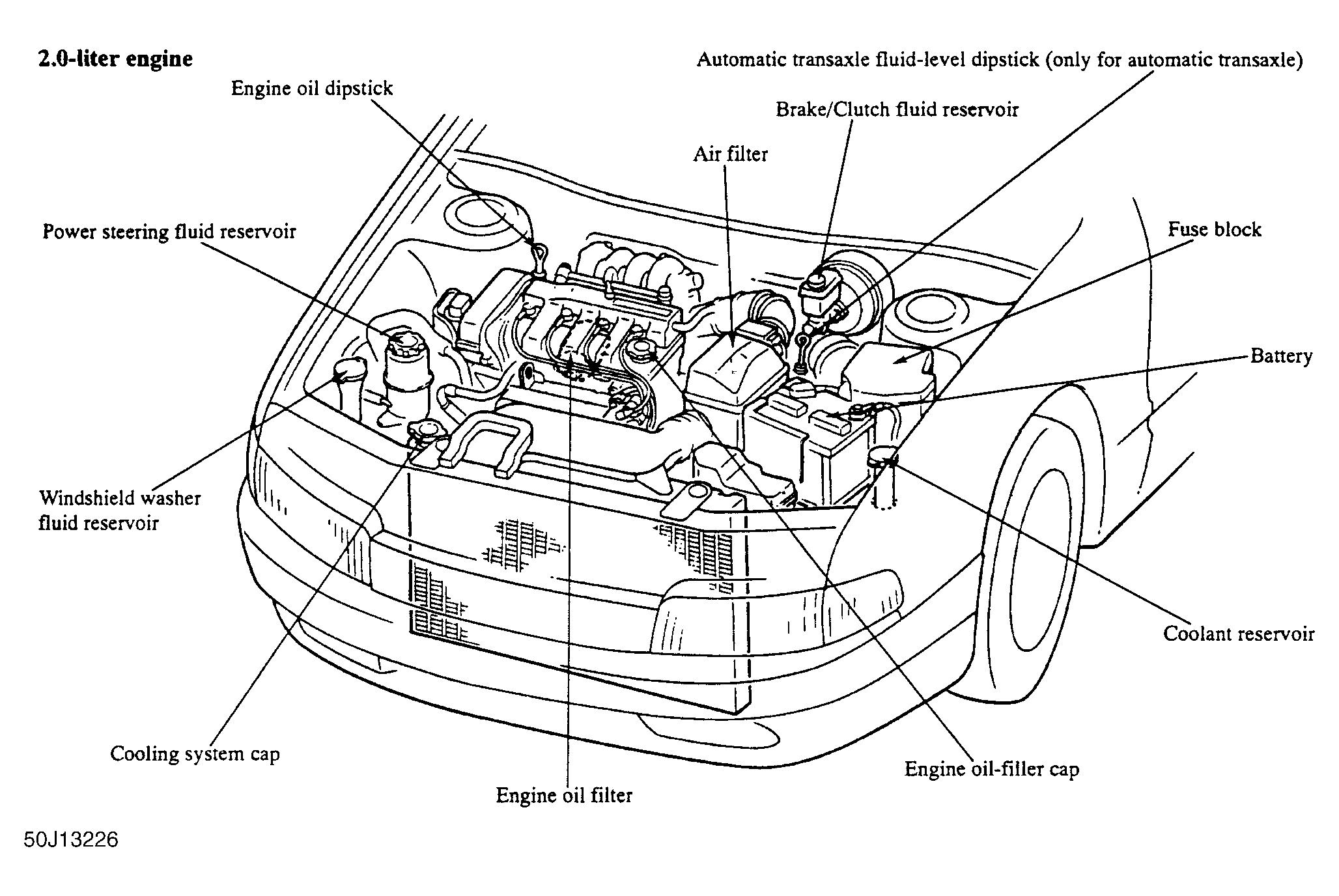

Fig 1: Service Point Locations - 2.0L
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Service Point Locations - 2.5L
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
