Central Processing Unit (CPU)

Locate CPU unit behind left kick panel. Leave CPU connector attached. Using DVOM, measure voltage at specified terminals of CPU connector (backprobe connector). SeeFig 1 . See CPU CONNECTOR PIN VOLTAGES & CONTINUITY  . Disconnect CPU connector and check continuity at specified terminals. If voltage measurements or continuity are not as specified, check related components and wiring harnesses. If related components amd wiring harnesses are okay, but system is still not functioning properly, replace CPU.

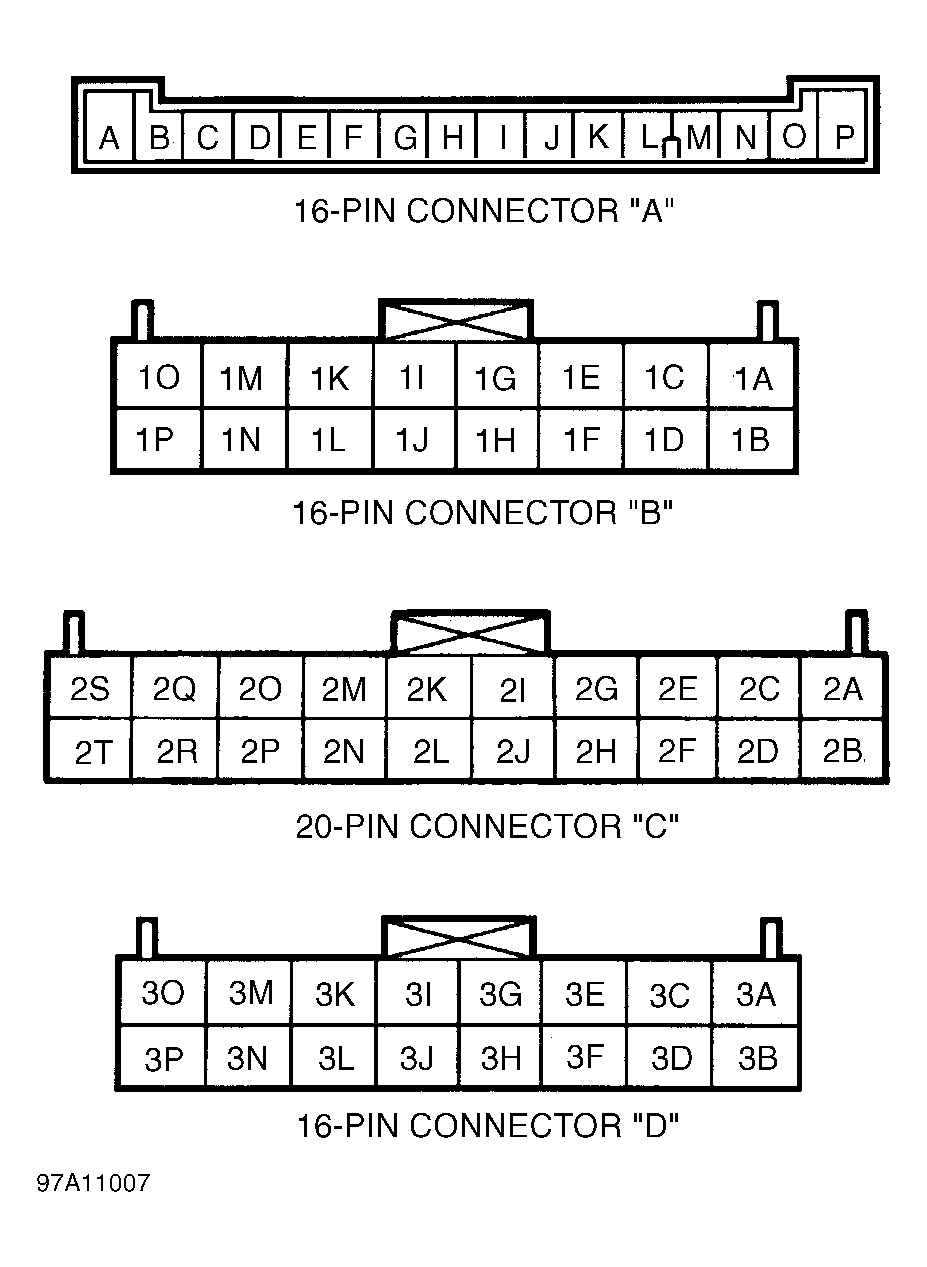

Fig 1: Identifying CPU Connector Terminals
G97A11007Courtesy of MAZDA MOTORS CORP.
CPU CONNECTOR PIN VOLTAGES & CONTINUITY

Terminal Desired Condition
16-Pin Connector "A"
"A" (Hood Switch) (1)
Hood Closed No Continuity
Hood Open Continuity
"B" (Starter Cut Relay), Constant (2) Battery Voltage
"E" (Rear Door Switch) (1)
Rear Doors Closed No Continuity
Any Rear Door Open Continuity
"F" (Horn Relay), Constant (2) Battery Voltage
"G" (CPU Ground), Constant (1) Continuity
"H" (Key Reminder Switch) (2)
Key Inserted Battery Voltage
Key Removed No Voltage
"J" (15-Amp ROOM Fuse), Constant (2) Battery Voltage
16-Pin Connector "B"
1B (Trunk Key Cylinder Switch) (1)
Locked No Continuity
Unlocked Continuity
1C (Headlight Relay) (2)
Headlights Off Battery Voltage
Headlights On No Voltage
1D (Trunk Compartment Light Switch) (2)
Trunk Lid Closed Battery Voltage
Trunk Lid Open No Voltage
1E (Flasher Unit) (2)
Hazard Switch Off Battery Voltage
Hazard Switch On No Voltage
1G (Door Lock Timer Unit) (2)
.4 Sec. After Door Locked No Voltage
Other Battery Voltage
1I (Door Lock Timer Unit) (2)
.4 Sec. After Door Unlocked No Voltage
Other Battery Voltage
1P (Keyless Unit), Not Operating (2) 5 Volts
20-Pin Connector "C"
2D (Passenger's Door Switch) (1)
Door Closed No Continuity
Door Open Continuity
2G (Trunk Lid Opener Relay) (2)
.27 Sec. After TRUNK Pressed No Voltage
Other Battery Voltage
2H (Driver's Door Lock Link Switch) (2)
Locked 5 Volts
Unlocked No Voltage
2L (Door Lock Switch) (2)
Locked 2.5 Volts
Unlocked (3) No Voltage
Other 5 Volts
2M (Security Light) (2)
Light Off Battery Voltage
Light On No Voltage
2P (Passenger's Door Key Cylinder Switch) (2)
Locked 2.5 Volts
Unlocked (3) No Voltage
Other 5 Volts
2R (Driver's Door Key Cylinder Switch) (2)
Locked 2.5 Volts
Unlocked (3) No Voltage
Other 5 Volts
2T (Driver's Door Switch) (1)
Door Closed No Continuity
Door Open Continuity
16-Pin Connector "D"
3B (Keyless Unit), Not Operating (2) 5 Volts
3C (Door Lock Timer Unit) (2)
.4 Sec. After UNLOCK (Driver) Pressed No Voltage
Other Battery Voltage
(1) Check continuity with ignition off and CPU connector disconnected.
(2) Measure voltage with CPU connector connected and ignition on, unless specified otherwise.
(3) Hold key cylinder in UNLOCKED position.
