Dashboard Garnish Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

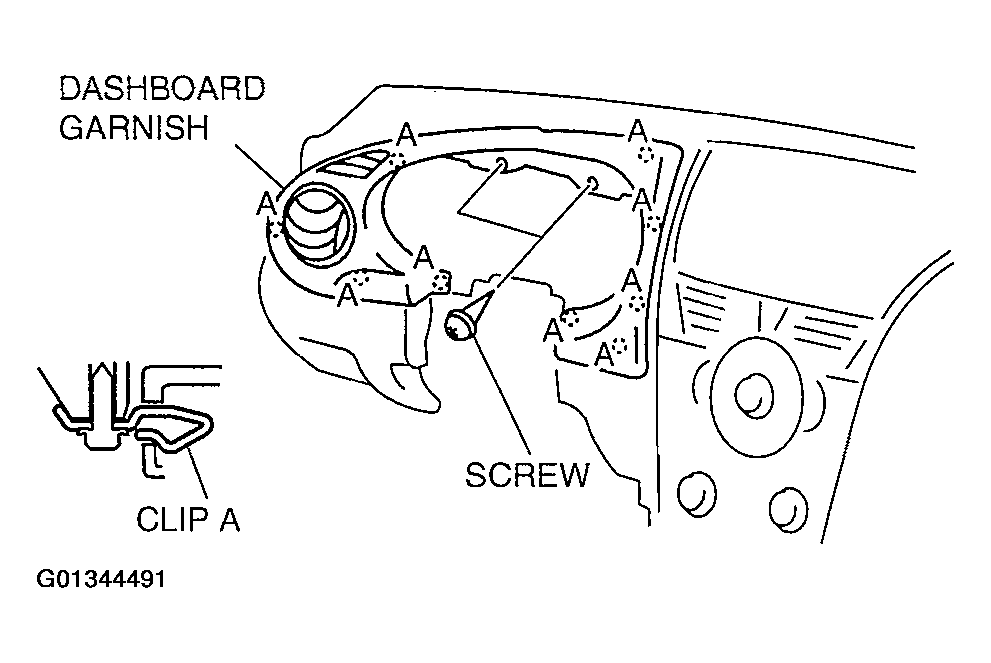

- Remove the screws.
- Pull the dashboard garnish outward, and detach clips A.
- Remove the dashboard garnish.
- Install in the reverse order of removal.
