Abs Control Module

NOTE: ABS control module and ABS hydraulic unit are replaced as an assembly.

To diagnose ABS control module, turn ignition off. Disconnect ABS control module harness connector. Insert a thin isolation plate to short bar of connector. Attach a wire to tester lead to avoid damaging connector terminals. Check resistance, voltage or continuity. See Fig 1 & Fig 2 . If measurements are not as specified, ABS control module is faulty.

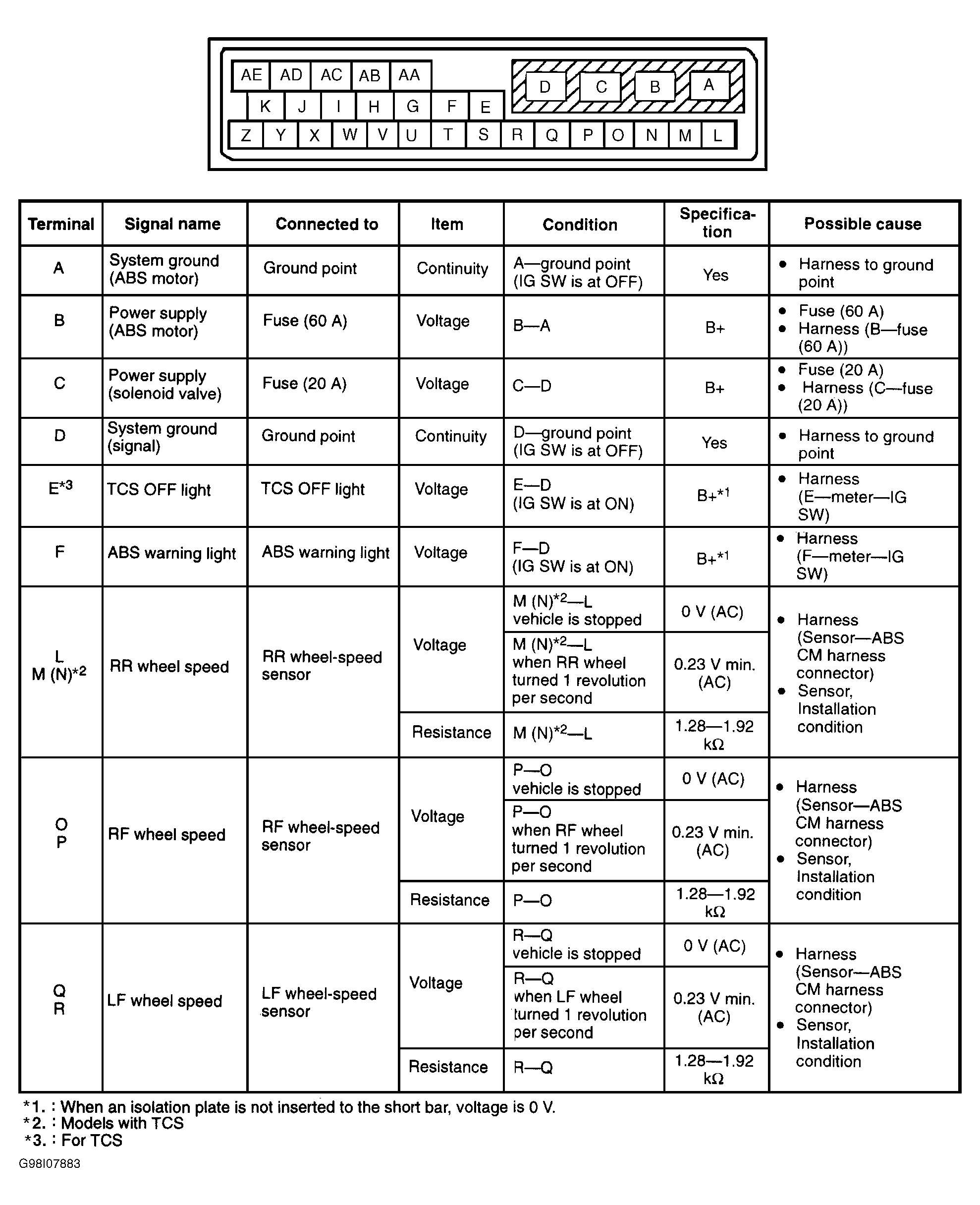

Fig 1: Testing ABS Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

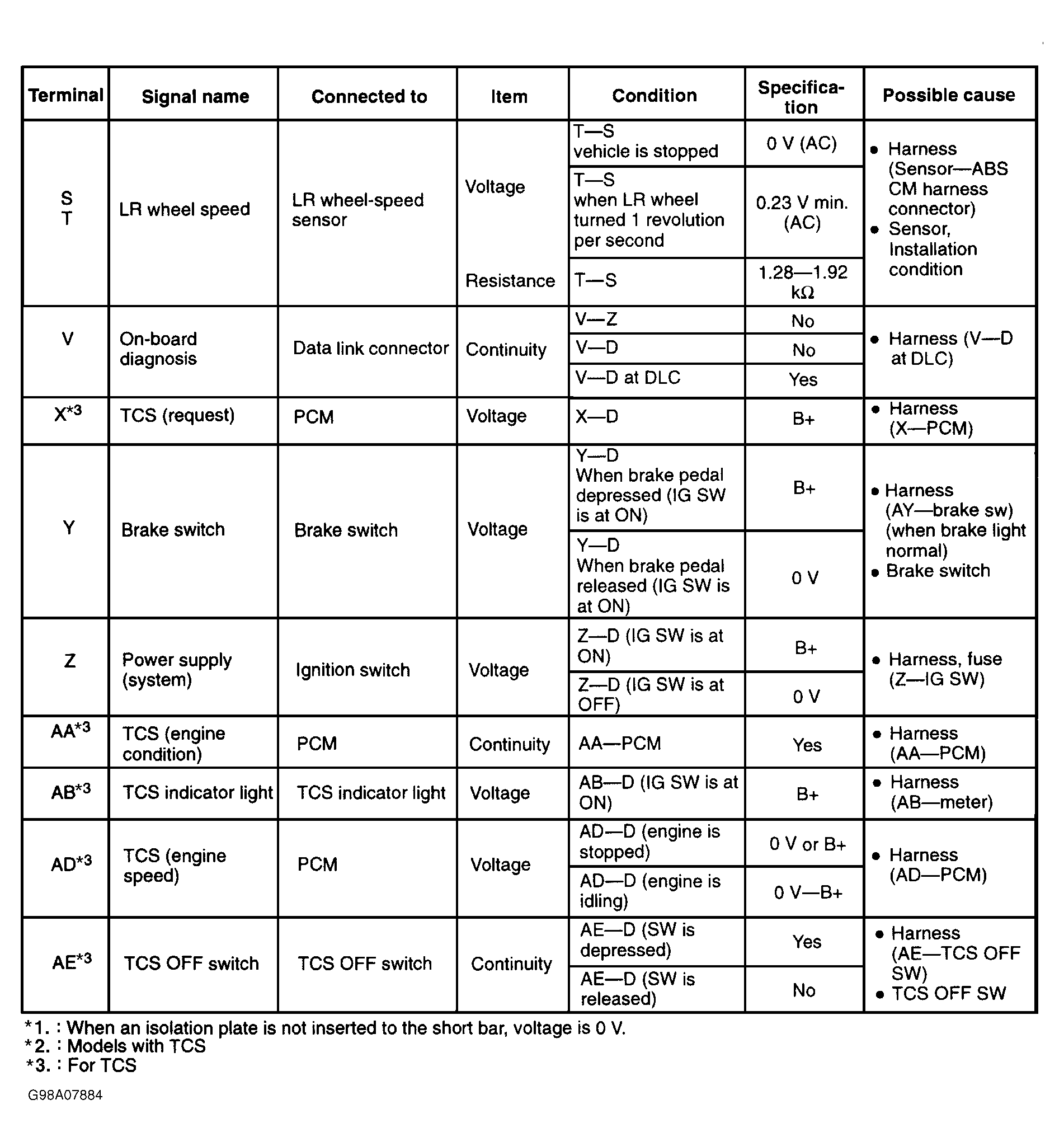

Fig 2: Testing ABS Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
