Floor Covering Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
- Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
- Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
- Ashtray illumination bulb (See ASHTRAY ILLUMINATION BULB REMOVAL/INSTALLATION .)
- Console (See CONSOLE REMOVAL/INSTALLATION .)
- Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
- Seat belt rail (See FRONT SEAT BELT REMOVAL/INSTALLATION .)

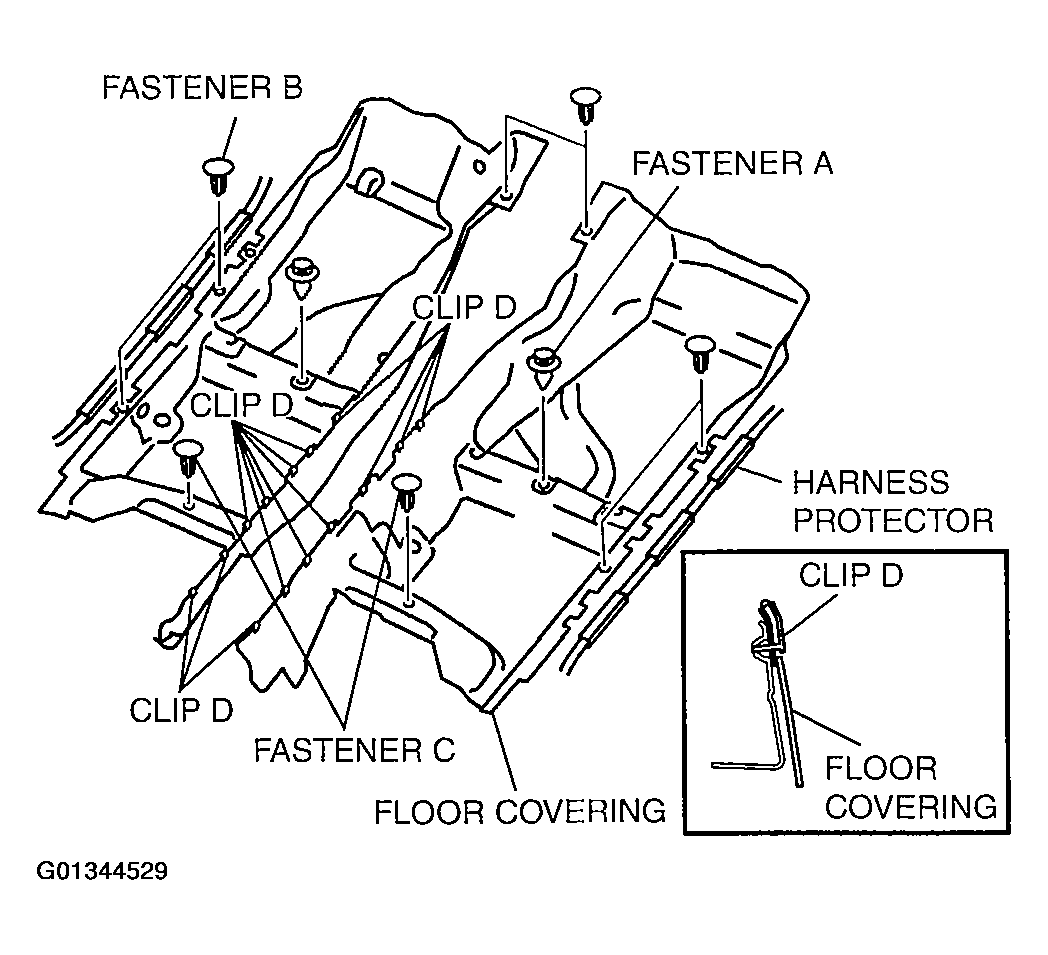

- Remove fasteners A, B, and C.
- Detach clip D and remove the floor covering.
- Take the floor covering out from the opened door.
- Install in the reverse order of removal.
