Trunk Lid Trim Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

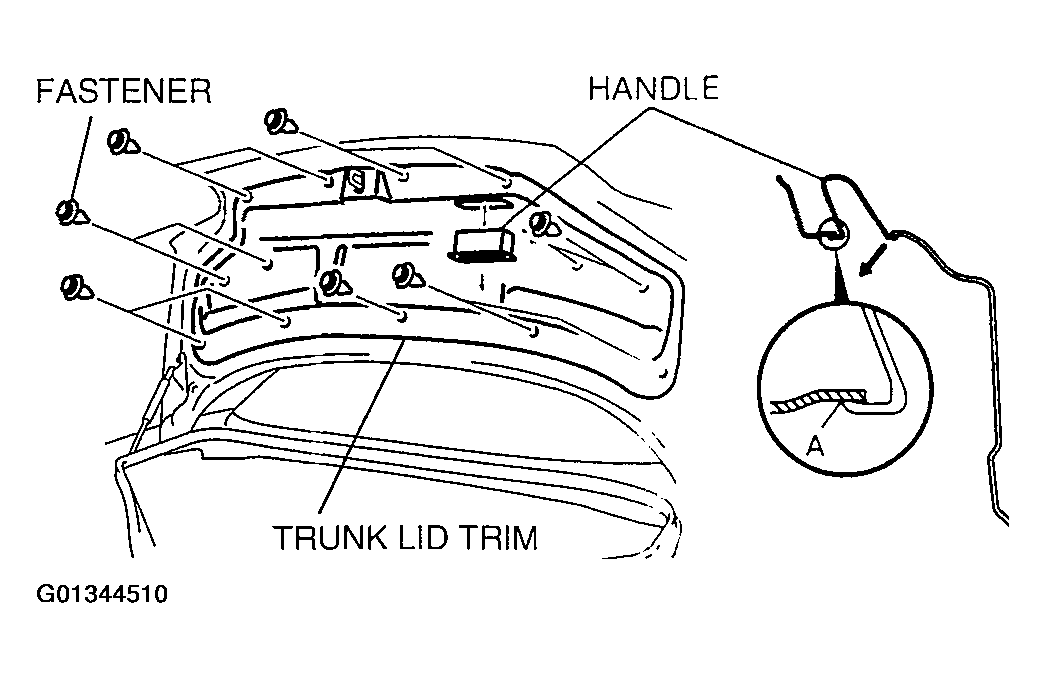

- While supporting at point A, pull the handle in the direction of the arrow and remove it.
- Remove the fasteners, then remove the trunk lid trim.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
