Door Lock Control Module (Timer Unit)

NOTE: Door lock control module (timer unit) has 2 configurations: unlocks all doors from driver's door lock switch or unlock driver's door only from driver's door lock switch. Ensure appropriate testing is used. See Fig 1 .

Locate door lock control module behind rear seat back. Leave door lock control module connector attached. Using DVOM, measure voltage at specified terminals of door lock control module connector (backprobe connector). See Fig 1 . Disconnect door lock control module connector. Using DVOM, measure continuity at specified terminals of door lock control module connector. If voltage or continuity are not as specified, replace door lock control module.

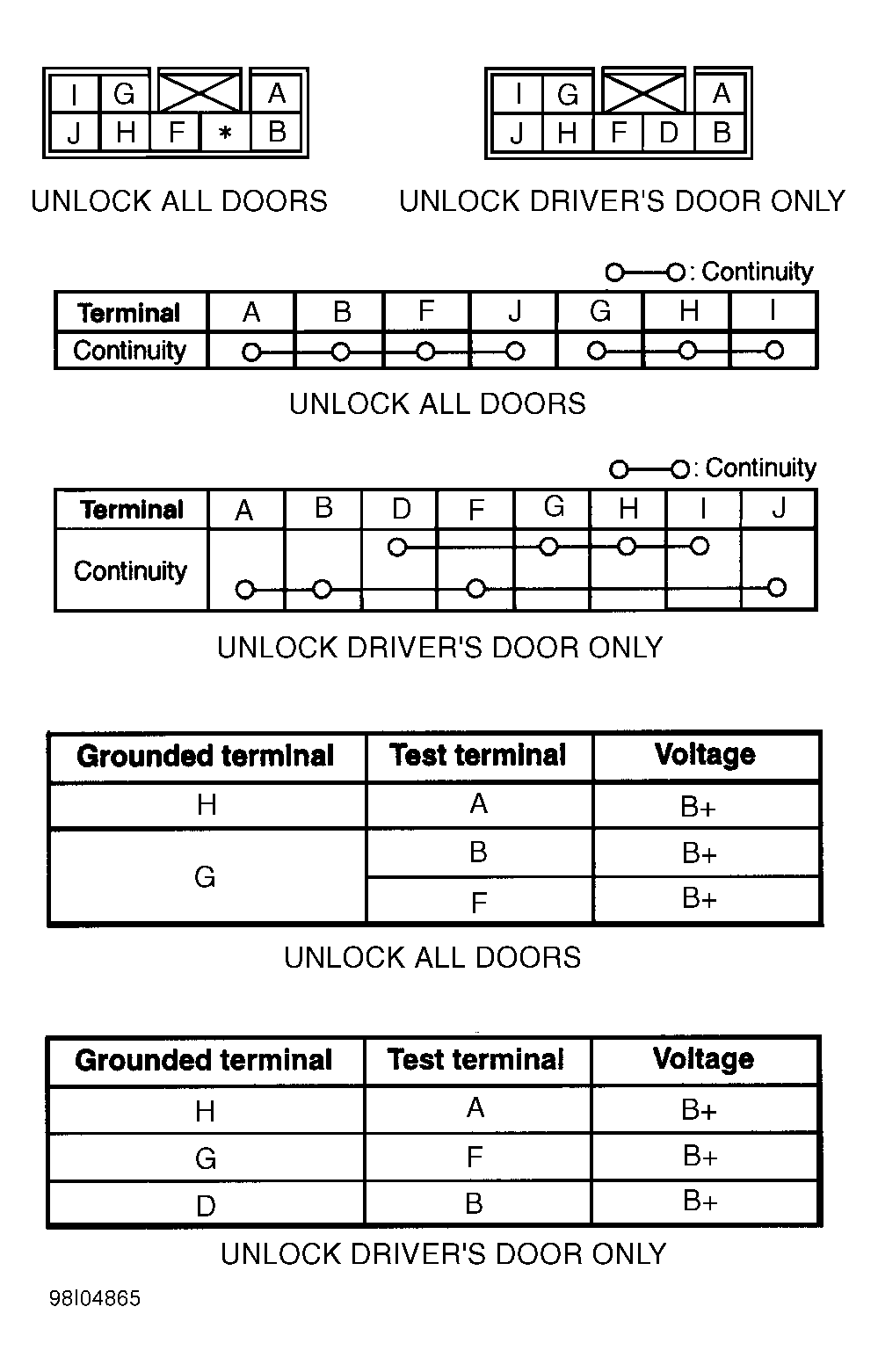

Fig 1: Door Lock Control Module (Timer Unit) Circuit Testing
G98I04865Courtesy of MAZDA MOTORS CORP.
