Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

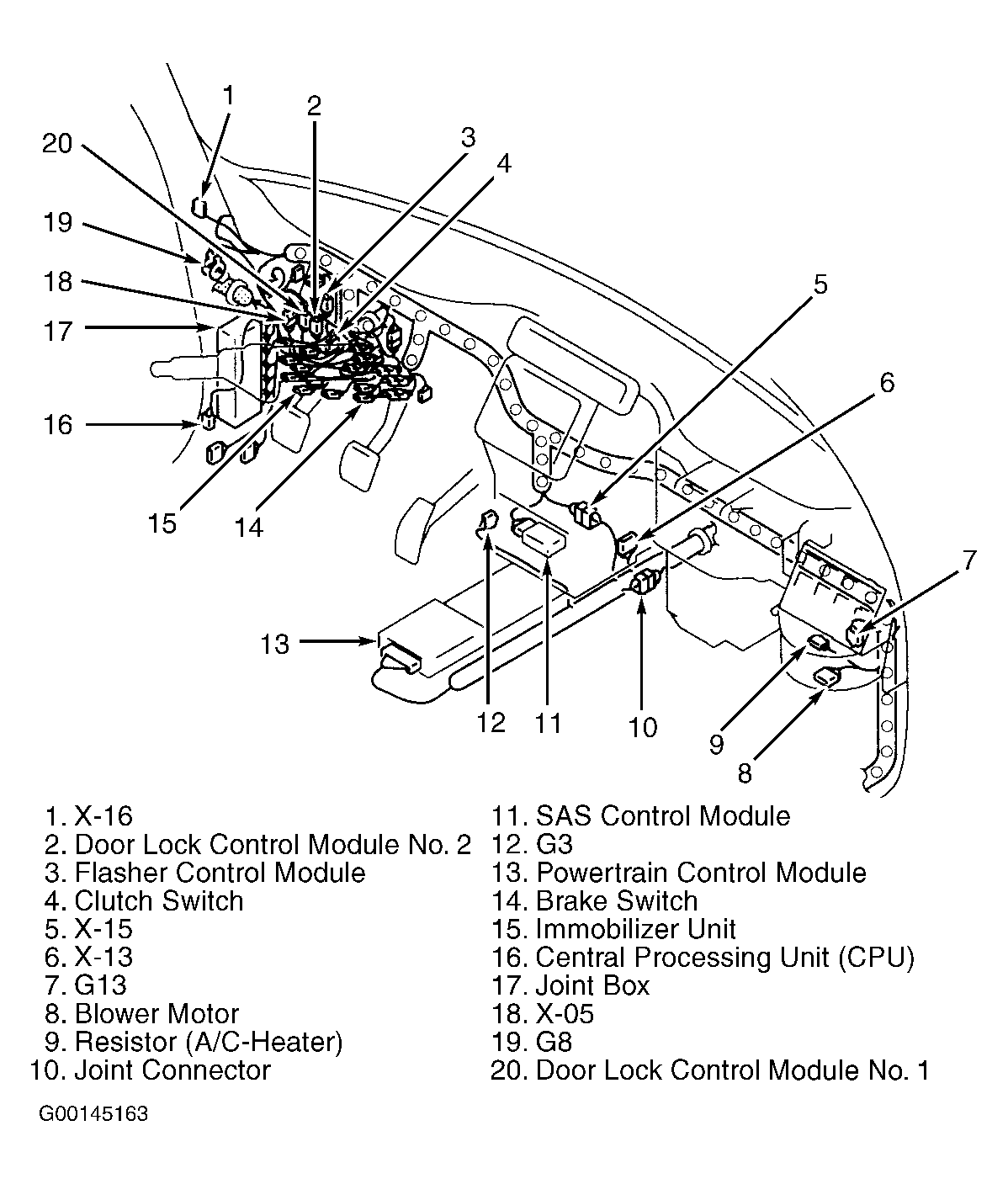

Fig 1: Dash

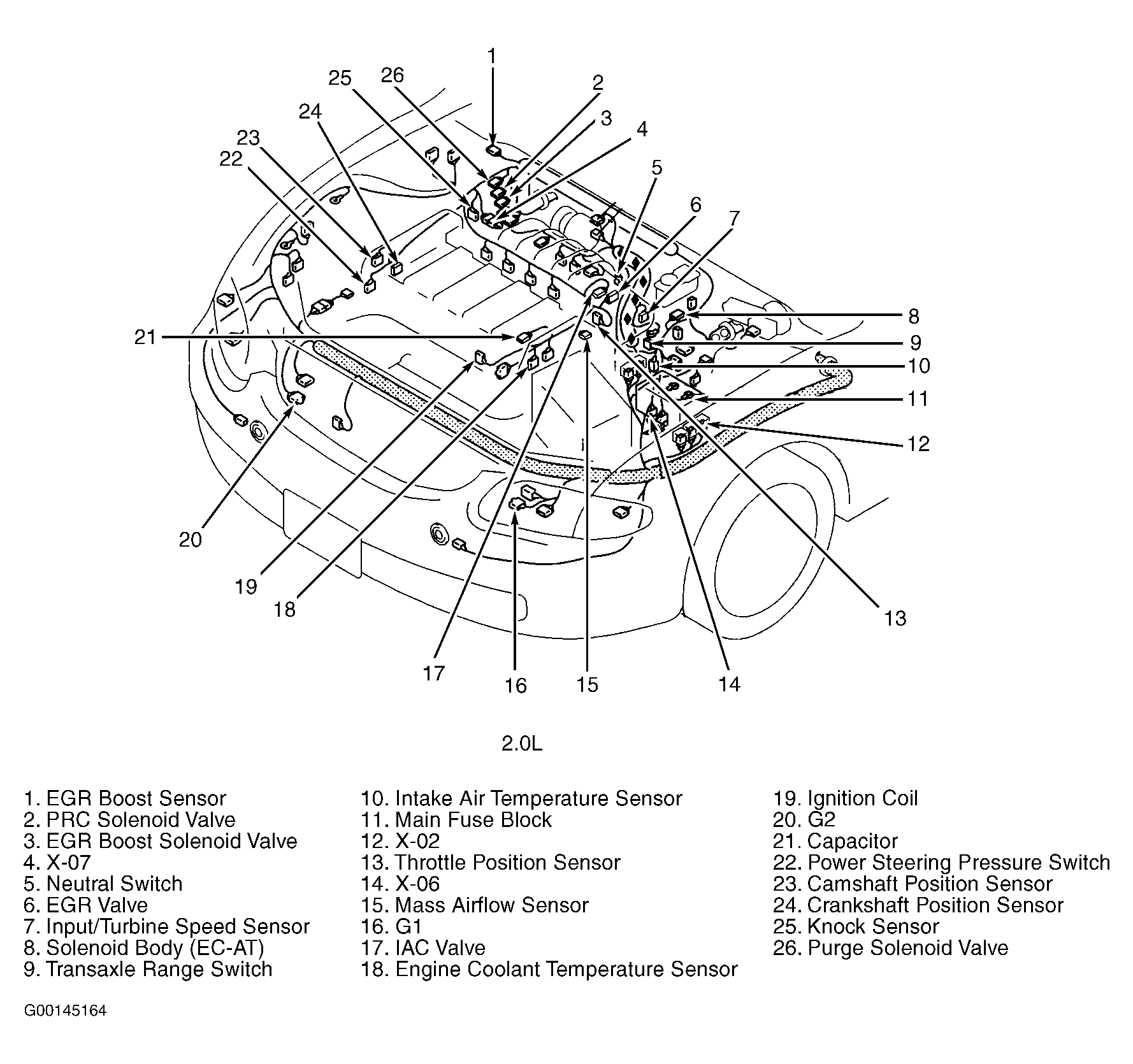

Fig 2: Engine Compartment (2.0L)

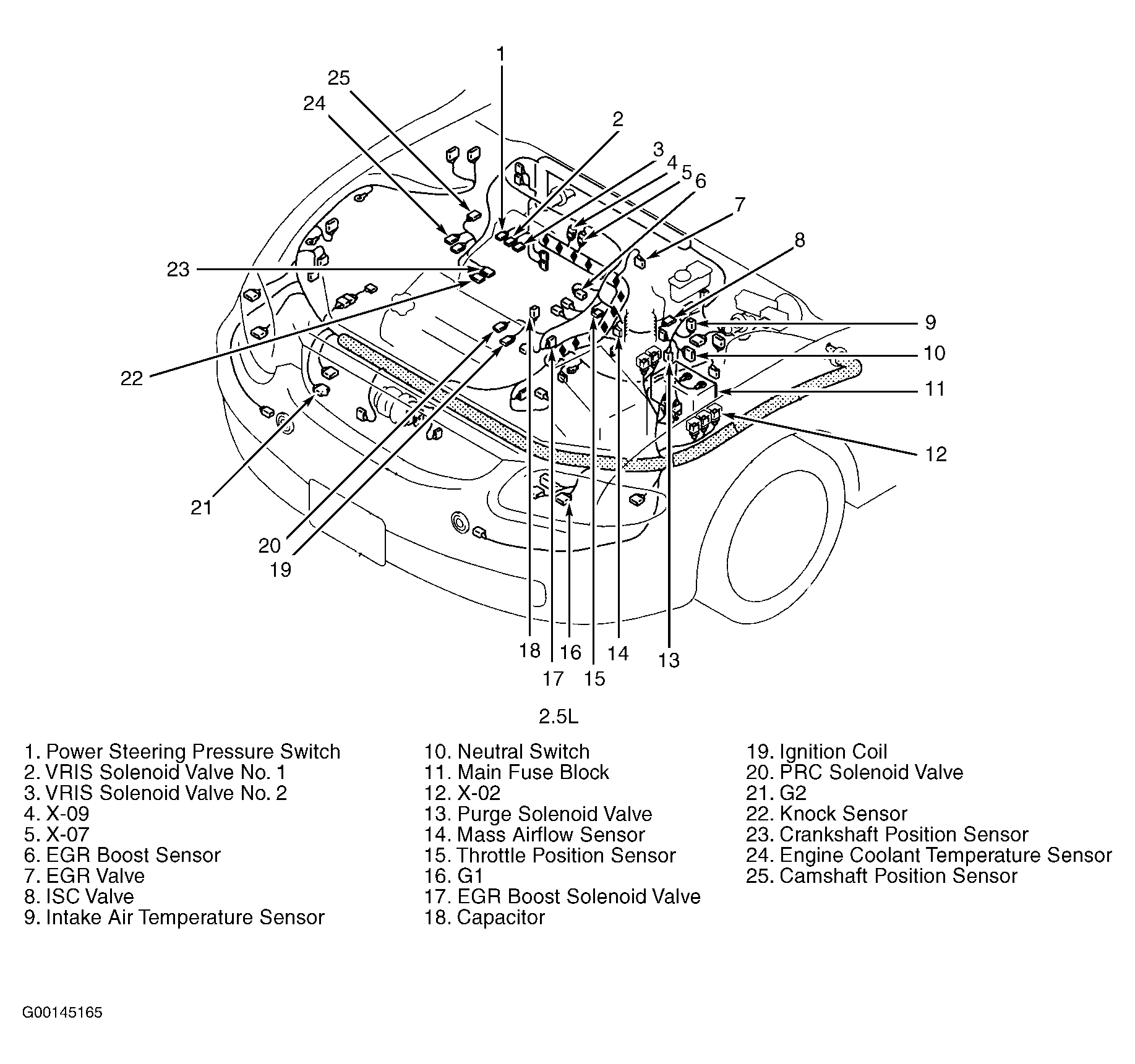

Fig 3: Engine Compartment (2.5L)
