Timing Belt - 2.5L

Refer to TIMING BELT in 2.5L 4-CYLINDER article in ENGINE for the removal and installation of the timing belt and sprockets. Make sure the timing marks are positioned as shown in the illustration.

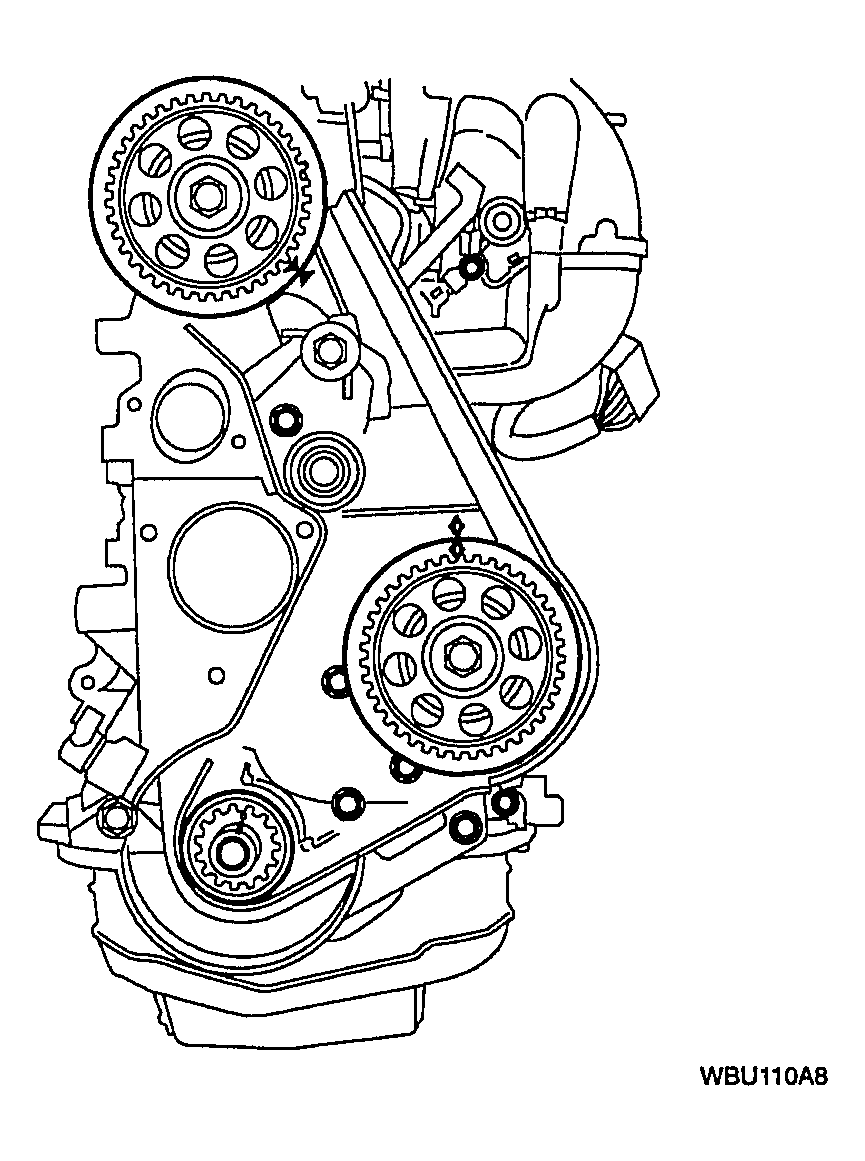

Fig 1: Installing Timing Belt And Sprockets

Courtesy of MAZDA MOTORS CORP.
