Engine Compartment Fuse/Relay Box

Engine compartment fuse/relay box is located on driver's side of engine compartment, next to battery. See Fig 1 .

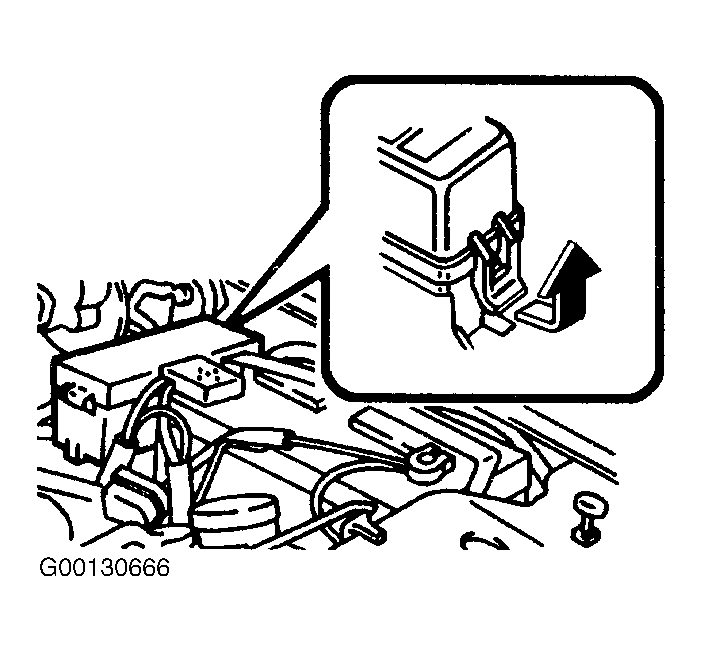

Fig 1: Locating Engine Compartment Fuse/Relay Box

Courtesy of MAZDA MOTORS CORP.

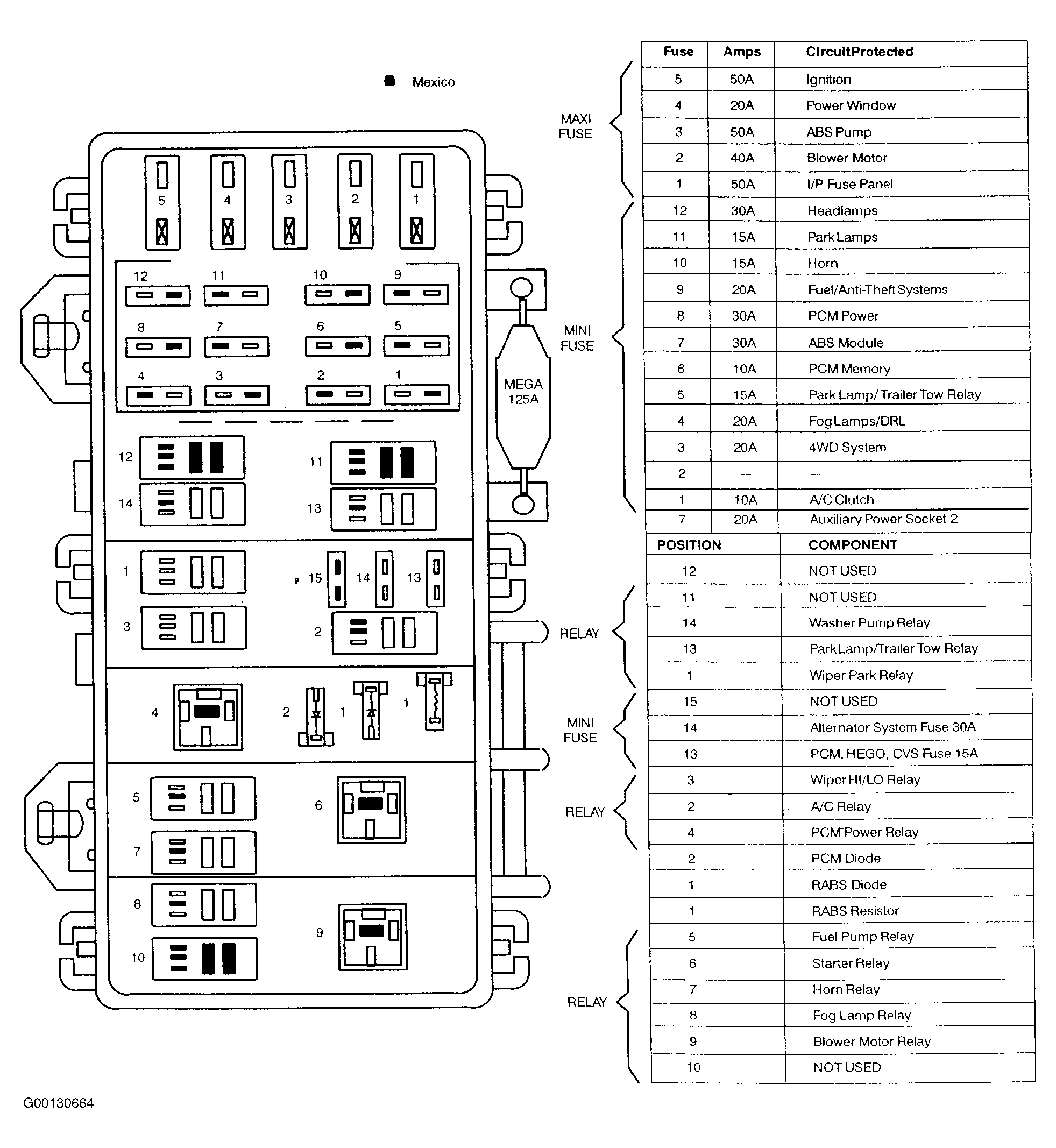

Fig 2: Identifying Engine Compartment Fuse/Relay Box Components

Courtesy of MAZDA MOTORS CORP.
