Instrument Panel Fuse Panel

Instrument panel fuse panel is located on driver's side end of instrument panel. See Fig 1 .

Fig 1: Locating Instrument Panel Fuse Panel

Courtesy of MAZDA MOTORS CORP.

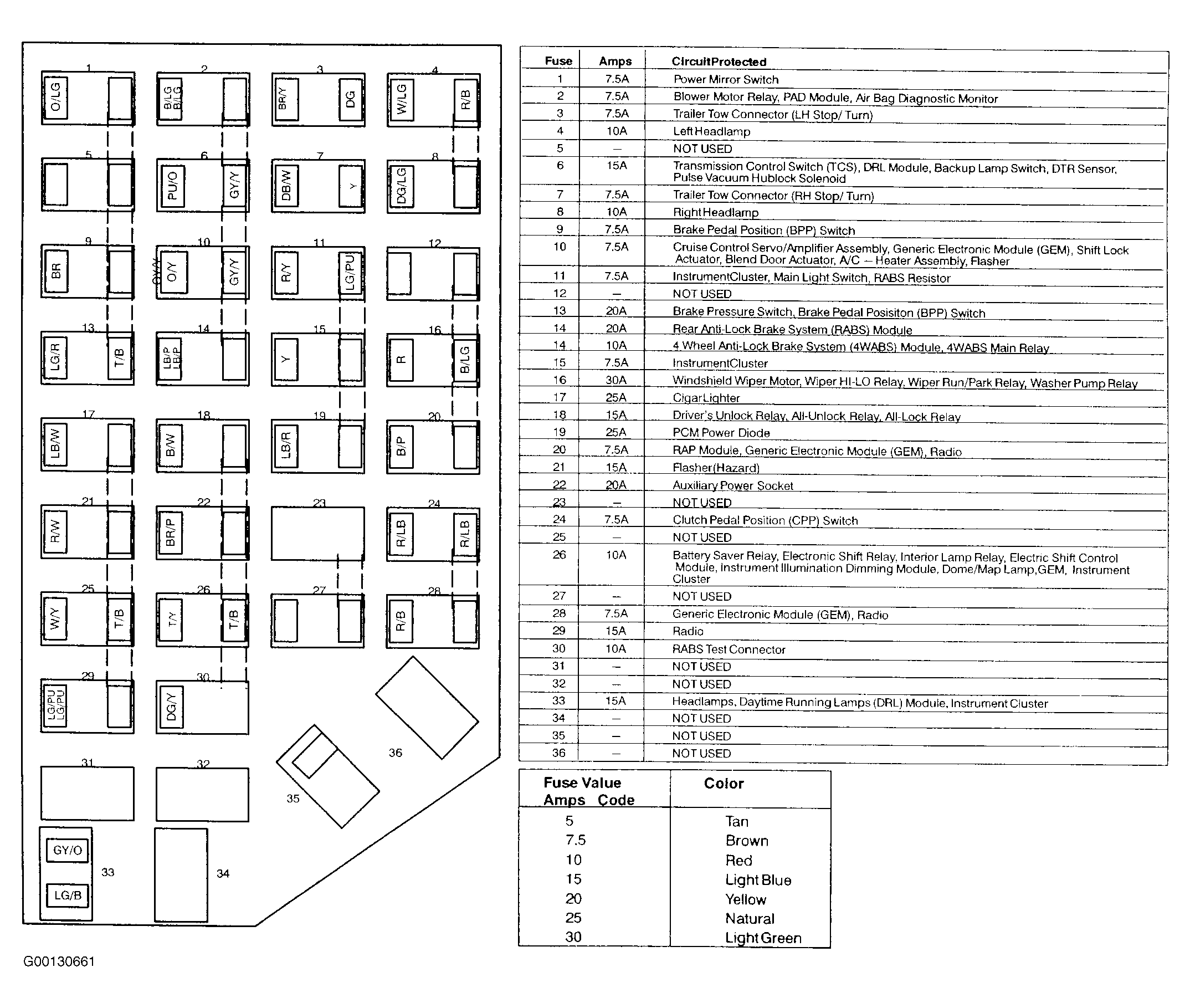

Fig 2: Identifying Instrument Panel Fuse Panel Components

Courtesy of MAZDA MOTORS CORP.
