Disassembly & Reassembly

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble components as shown in the illustration. See Fig 1 .
Reassemble in the reverse order of removal. Tighten bolts to specifications. See TORQUE SPECIFICATIONS .

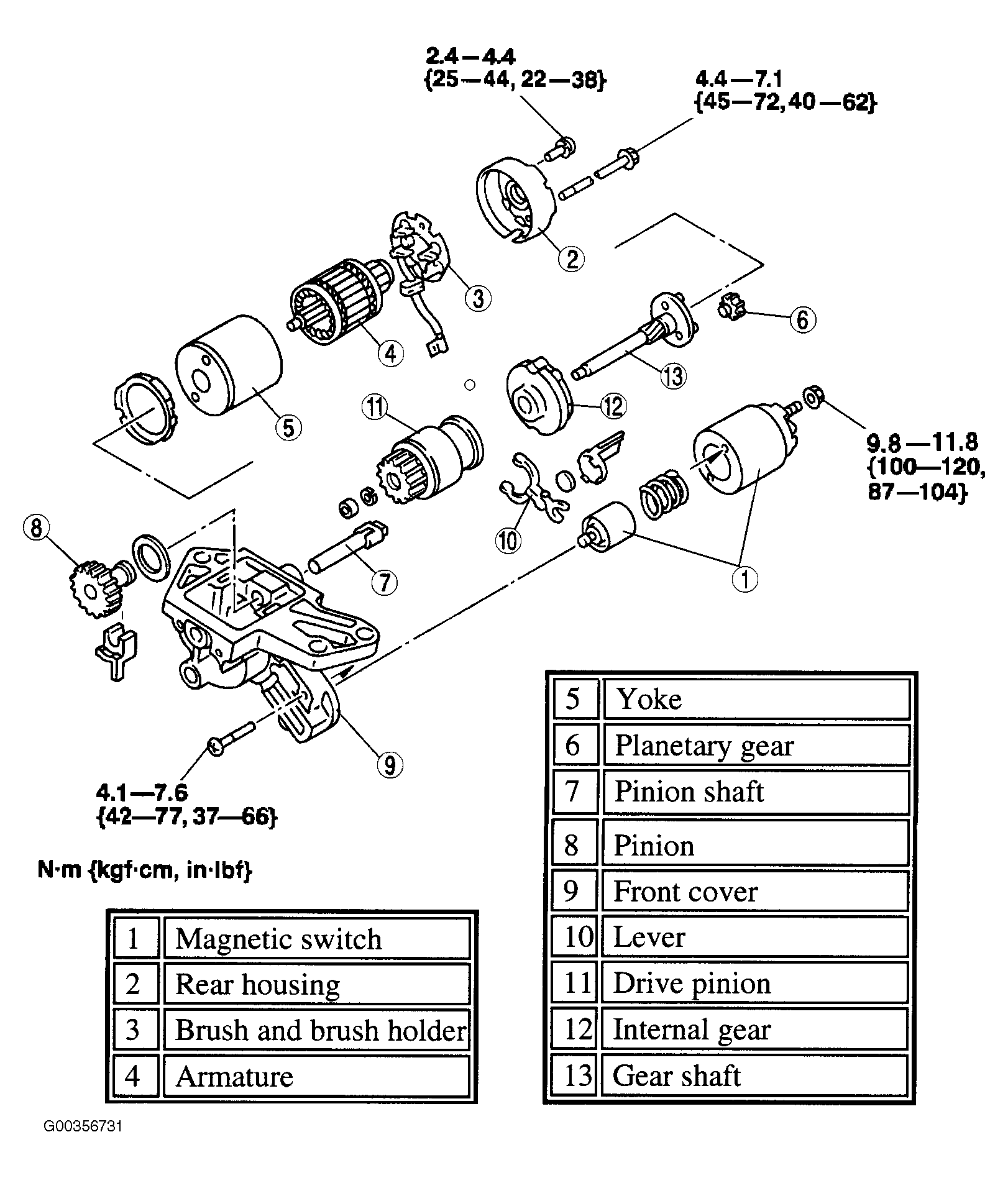

Fig 1: Exploded View Starter Assembly

Courtesy of MAZDA MOTORS CORP.
