Front Crossmember Bushing Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Set the bushings as shown in the illustration.
NOTE: The bushings must be installed with correct orientation as shown below, or increased noise and vibration may result.

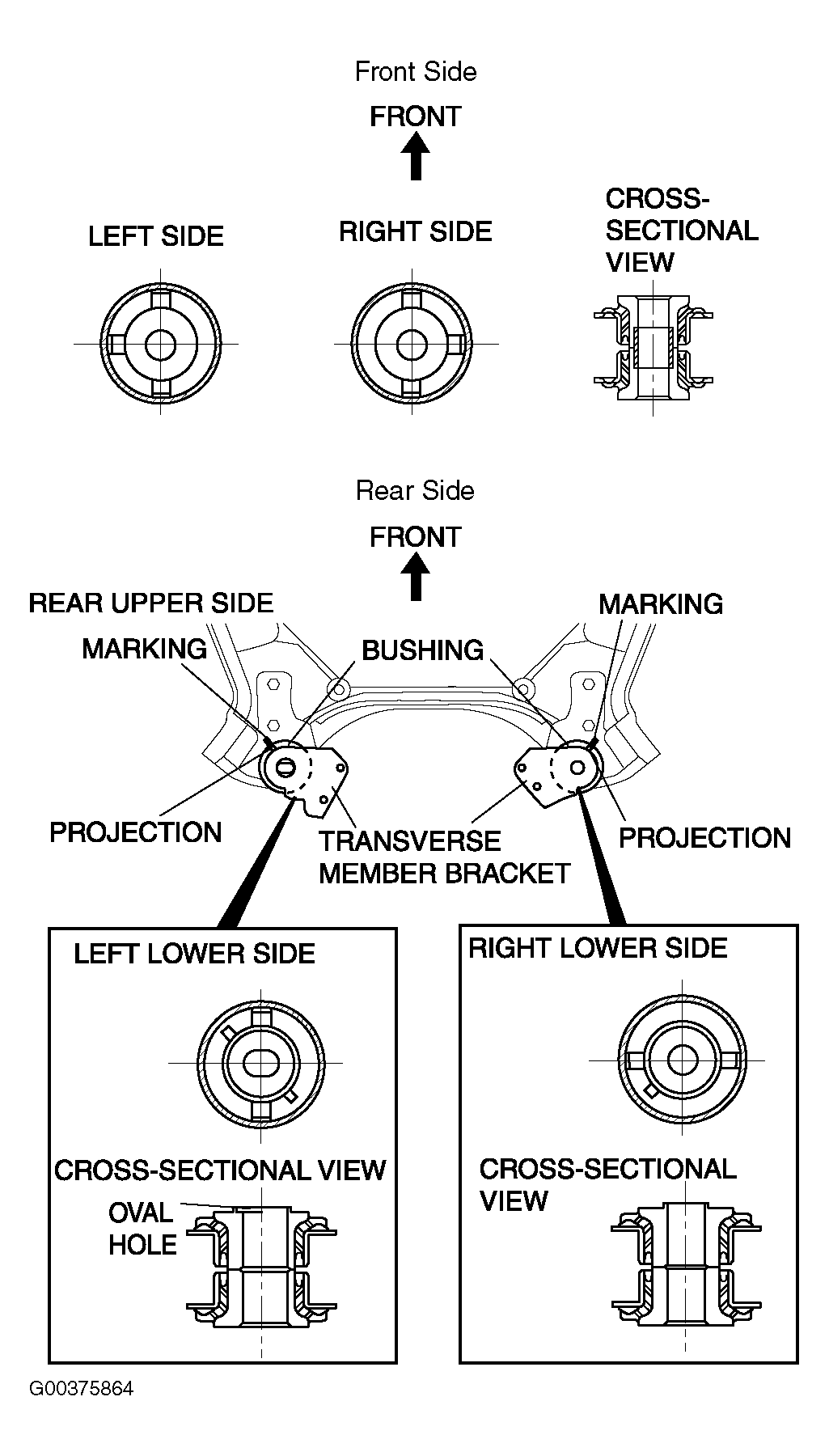

Fig 1: Installing Front Bushing (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install the bushing onto the crossmember using the SSTs.

Fig 2: Installing Front Bushing (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
