Front Crossmember Bushing Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

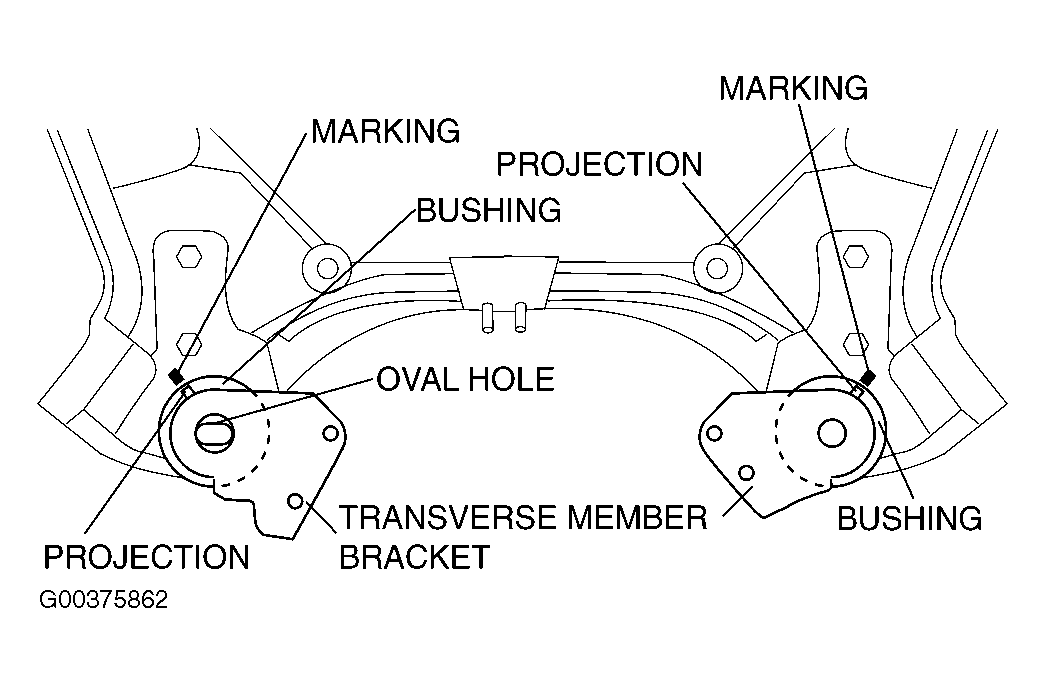

Mark the crossmember as shown in the illustration (rear upper side only).

Fig 1: Marking Crossmember
Courtesy of MAZDA MOTORS CORP.
Remove the bushings using flathead screwdriver, being careful not to damage the front crossmember.

Fig 2: Removing front Crossmember Bushings
Courtesy of MAZDA MOTORS CORP.
