Clip Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Wipe the grease off the ball stud.
Fill the inside of the new dust boot with grease.
Install the boot on the ball joint.
Install the new clip using the SST.

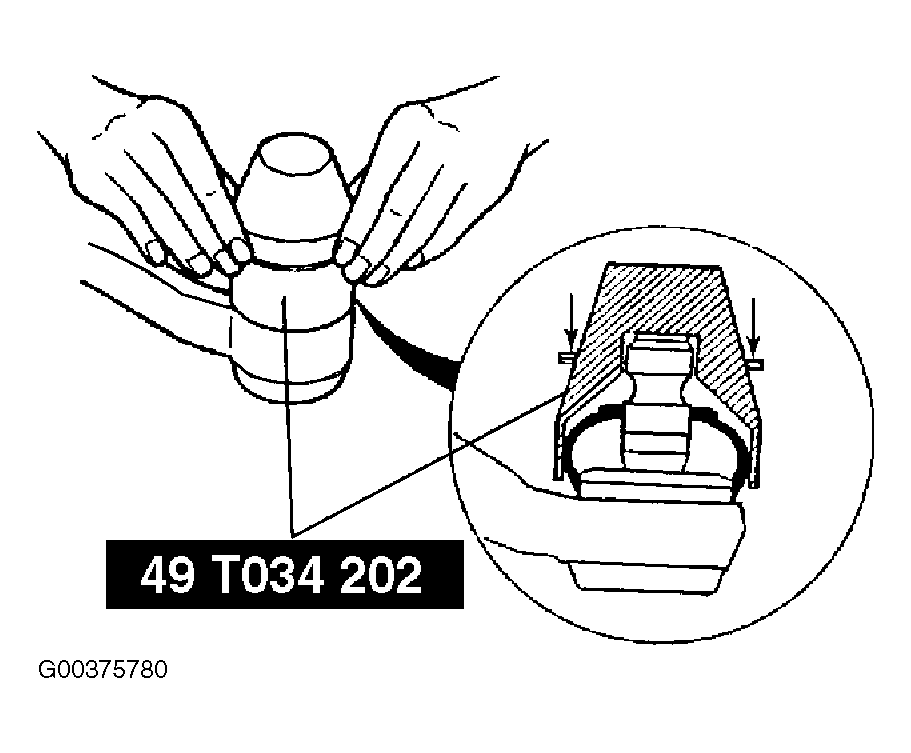

Fig 1: Installing Dust Boot & Clip
Courtesy of MAZDA MOTORS CORP.
Verify that the clip is installed securely to the groove.
Wipe away the excess grease.
