DTC P0564: Cruise Control Switch Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

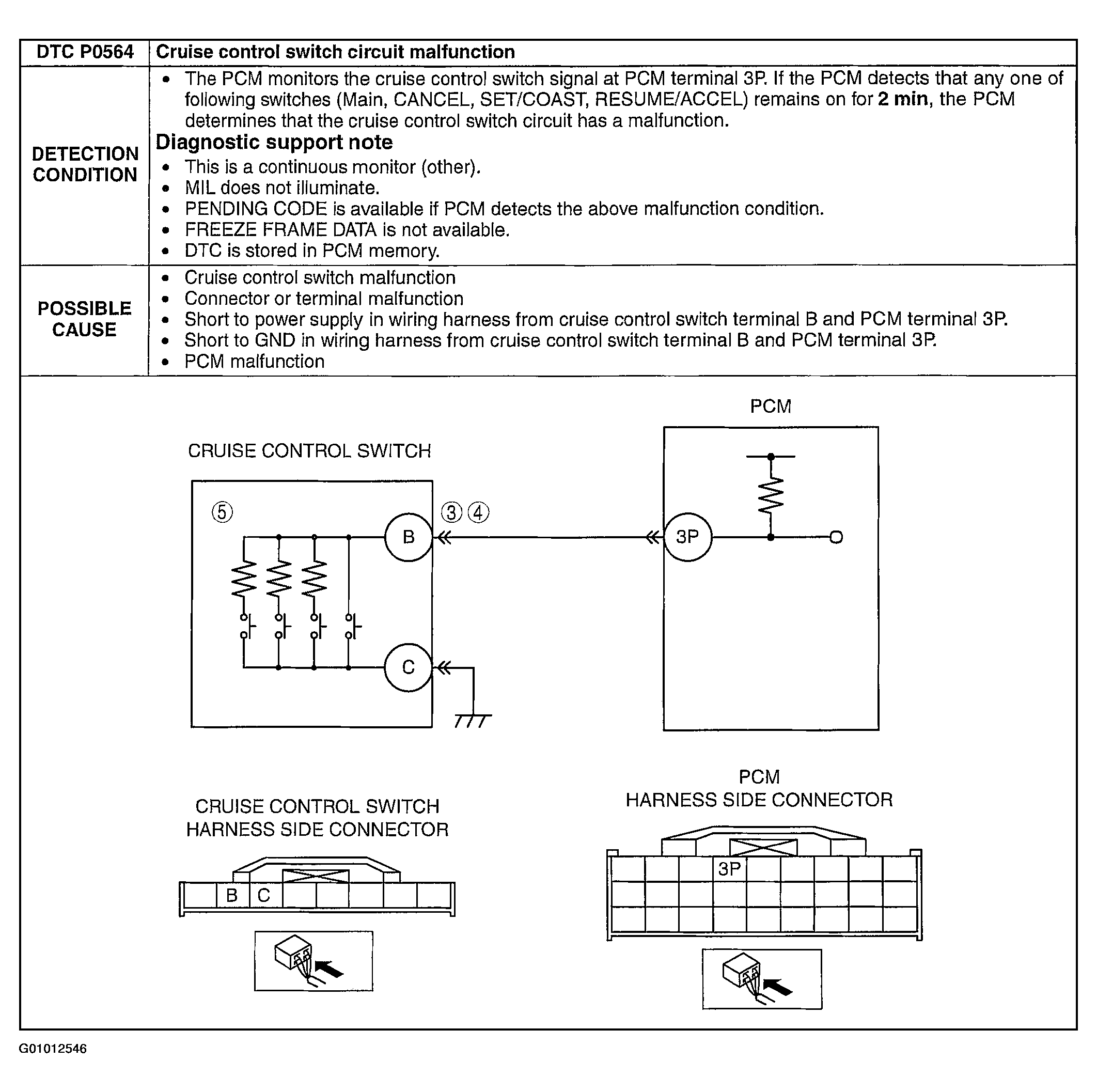

Fig 1: DTC P0564 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

Courtesy of MAZDA MOTORS CORP.
