DTC P2009: Variable Tumble Control Solenoid Valve Circuit Low Input: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

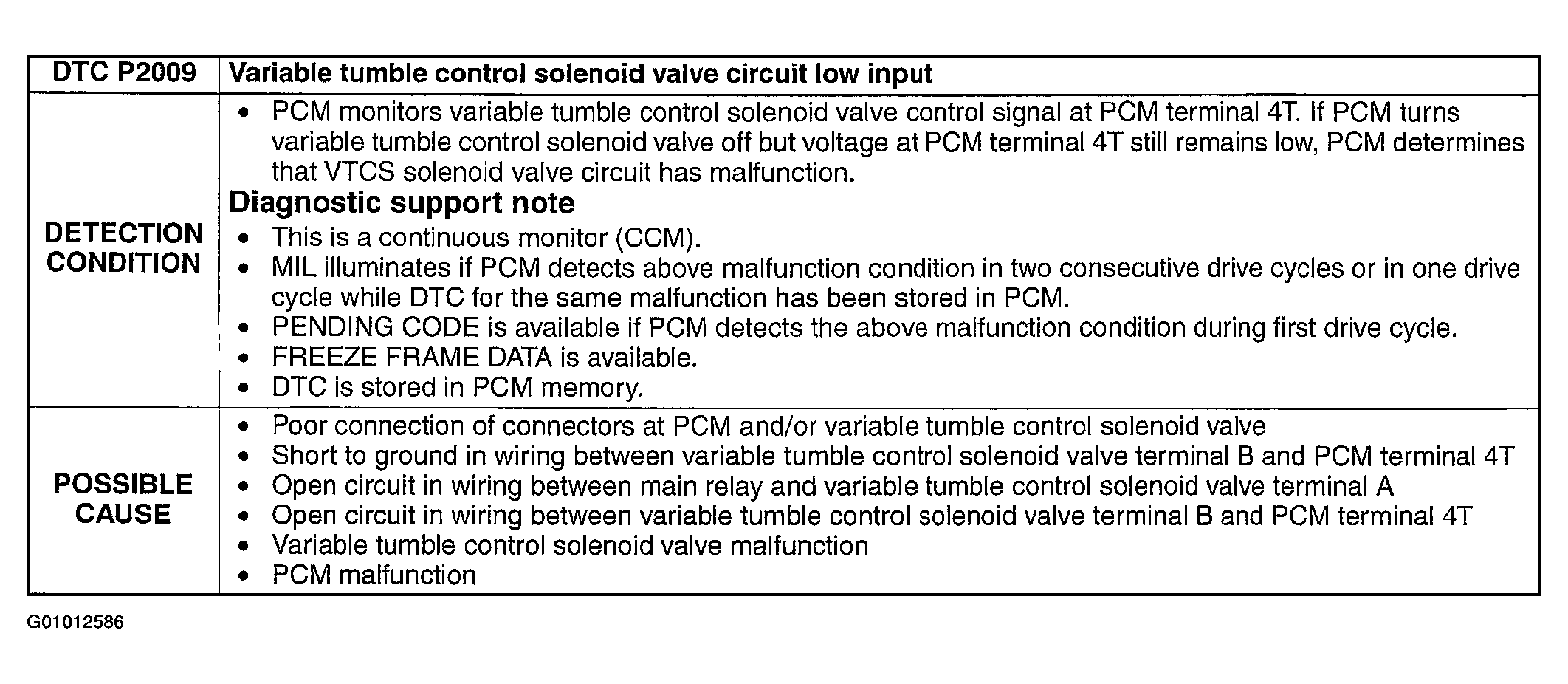

Fig 1: DTC P2009 - Detection Conditions & Possible Causes

Courtesy of MAZDA MOTORS CORP.

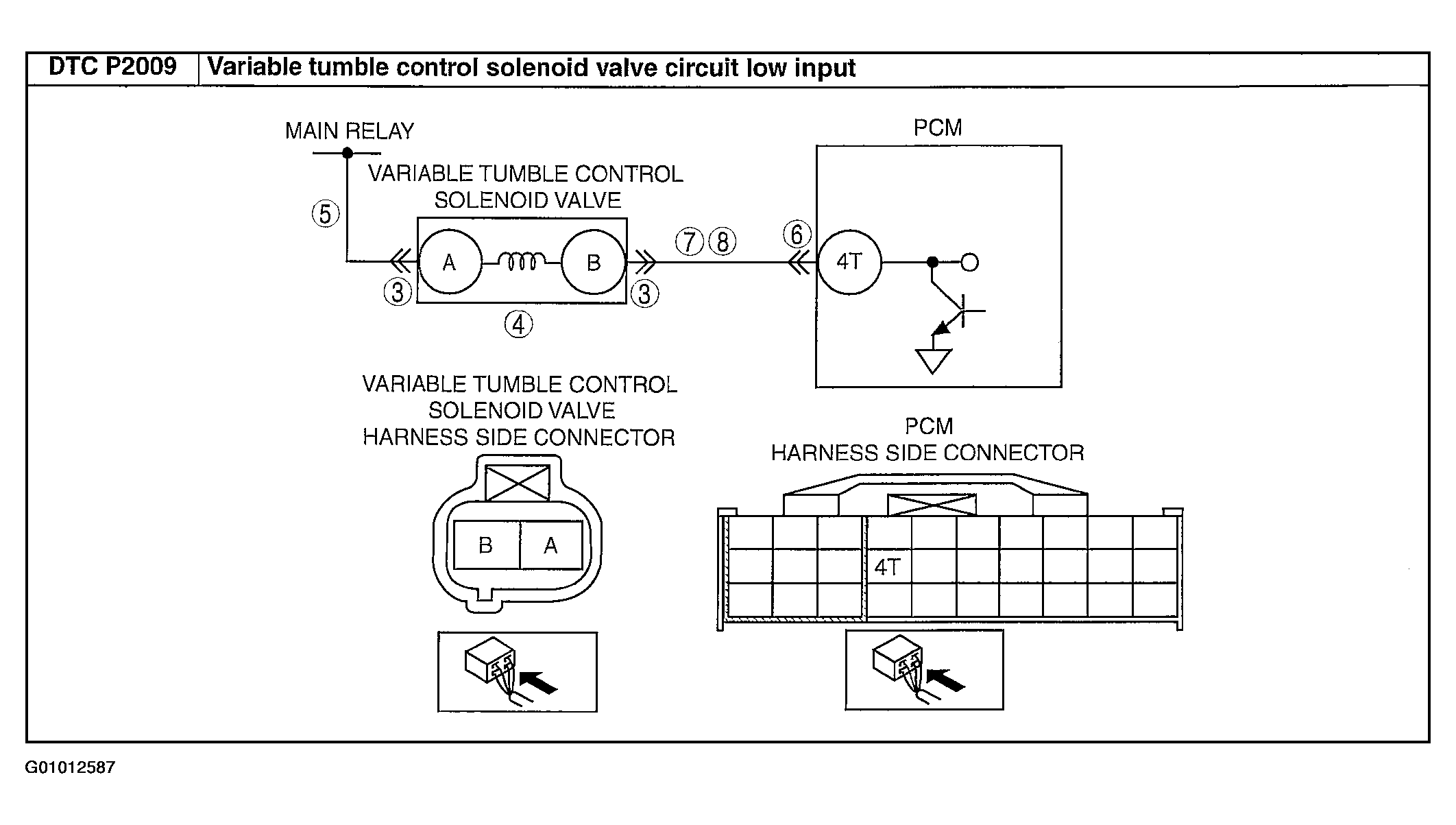

Fig 2: DTC P2009 - Circuit Identification & Connector Views

Courtesy of MAZDA MOTORS CORP.
