Locknut Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install a new locknut and stake it as shown.

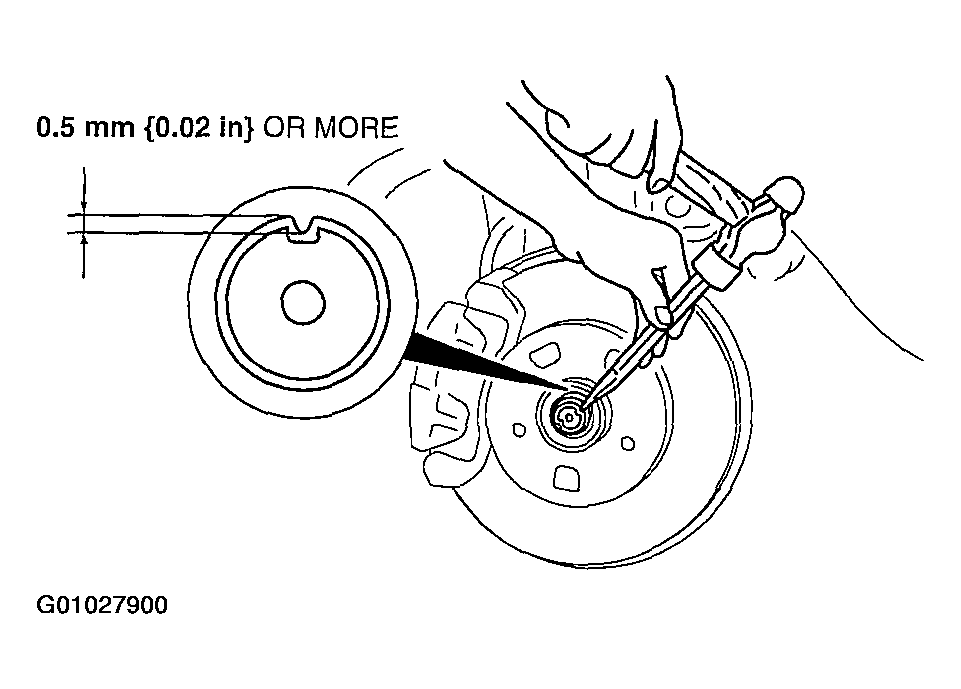

Fig 1: Staking NEW Locknut
Courtesy of MAZDA MOTORS CORP.
