G35M-R Manual Transaxle Models

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the SSTs .
Tighten the bolts evenly and gradually in a crisscross pattern.

Tightening torque

25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

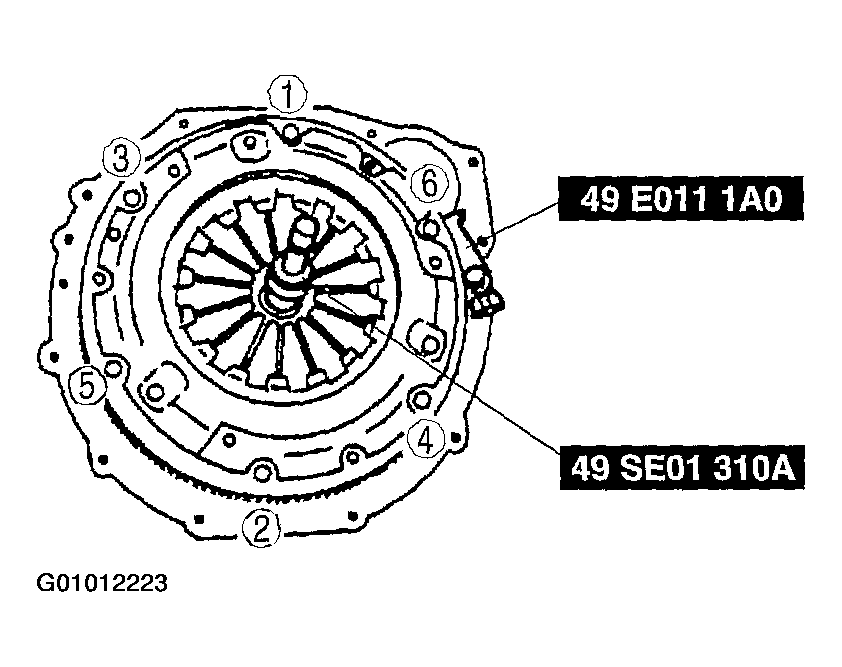

Fig 1: Installing Clutch Cover - G35M-R Manual Transaxle

Courtesy of MAZDA MOTORS CORP.
