Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

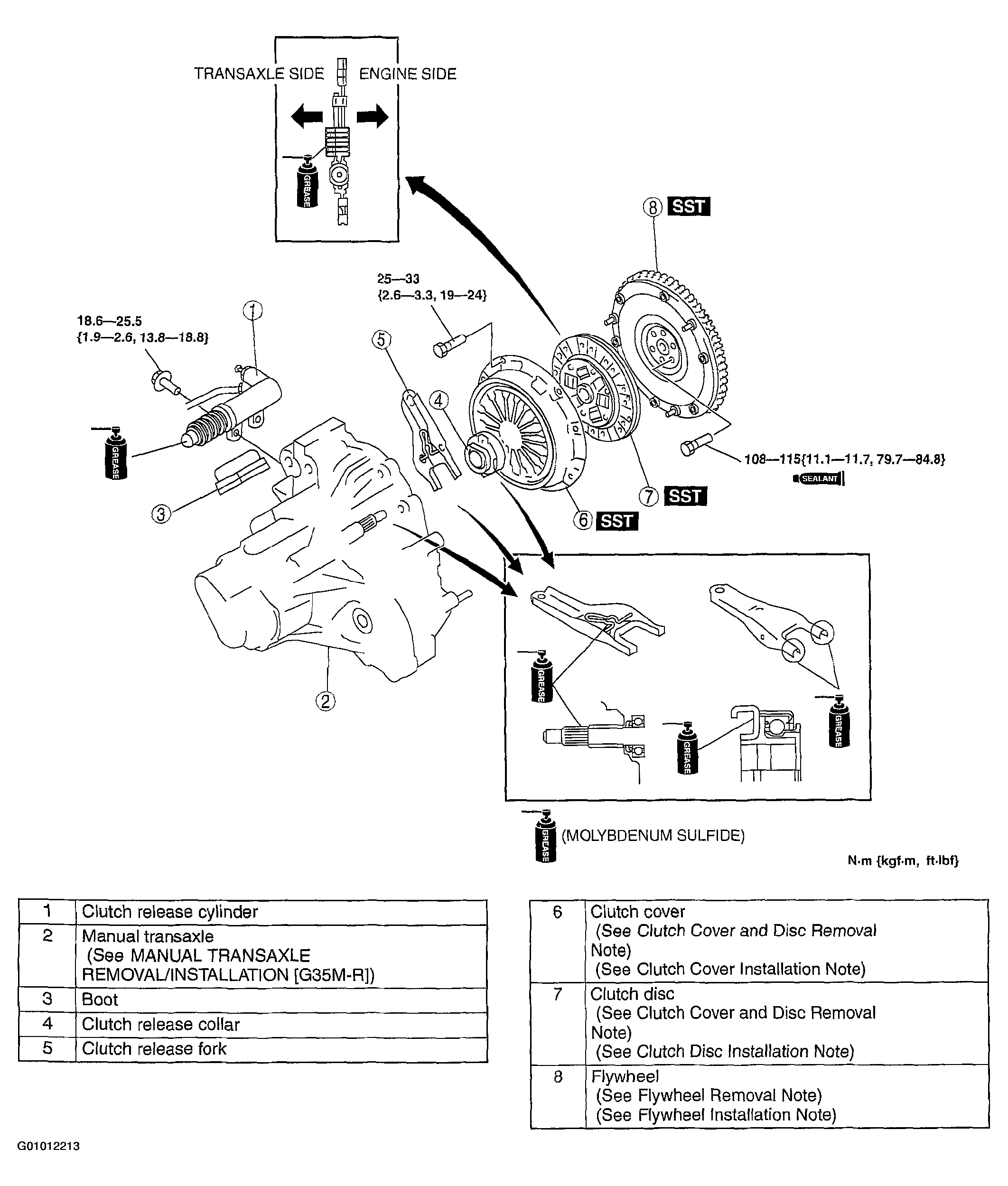

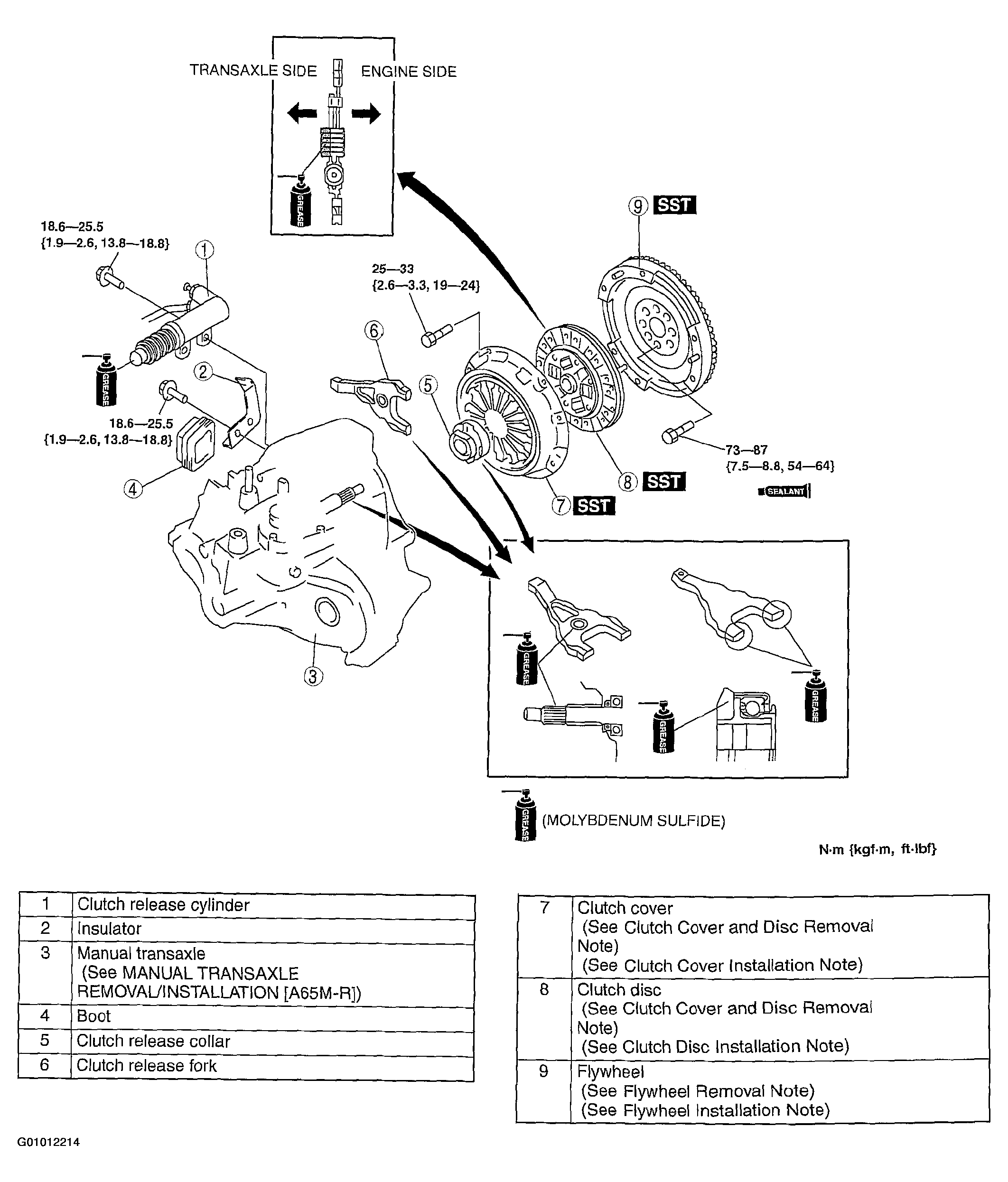

Remove in the order indicated in Figure or Figure .
Install in the reverse order removal.
