Front Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION .)
Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
Disconnect the front fog light connector.

Remove in the order indicated in the table.

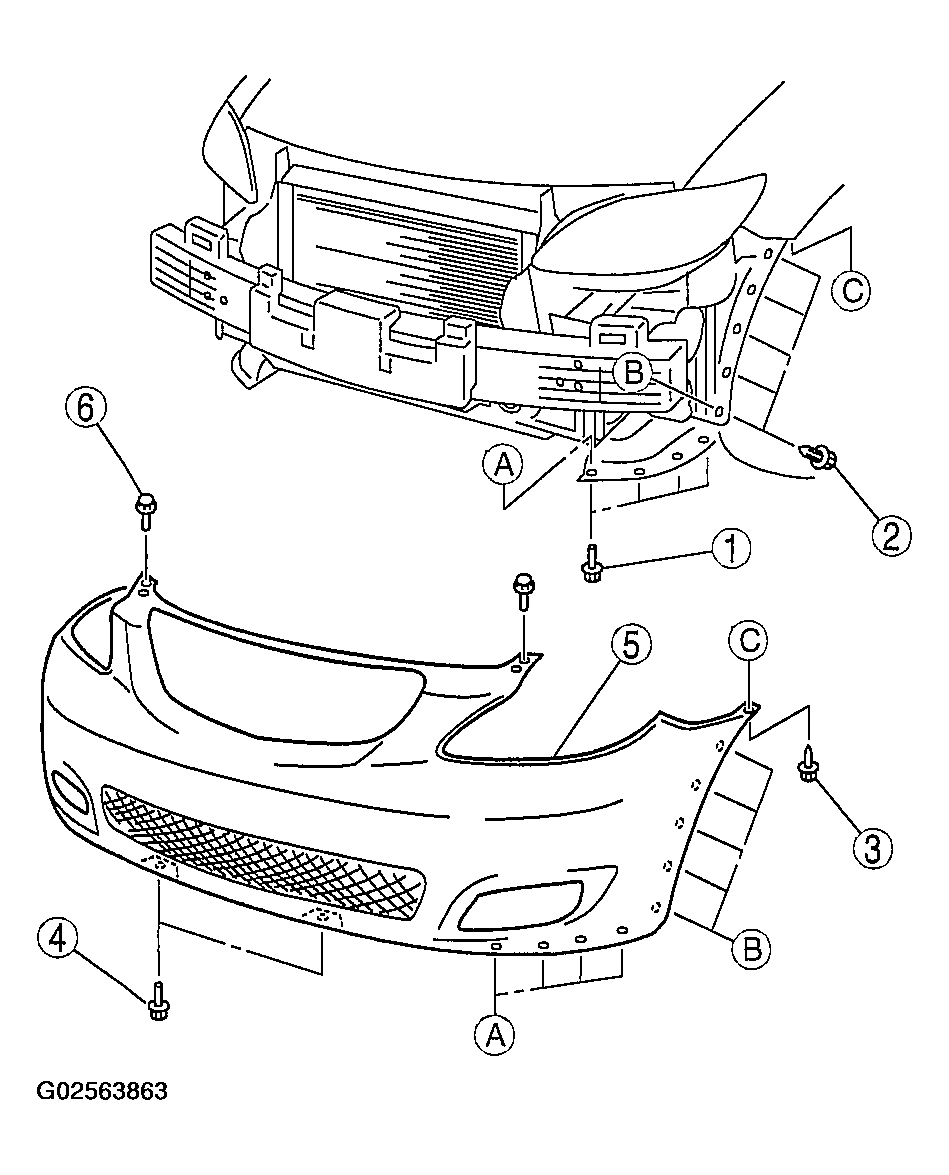

Fig 1: Removing/Installing Front Bumper - Standard

Courtesy of MAZDA MOTORS CORP.

REMOVAL ORDER OF FRONT BUMPER - SPORTS

1	Bolt A
2	Fastener
3	Screw
4	Bolt B
5	Front bumper (See Front Bumper Removal Note .) (See Front Bumper Installation Note .)
6	Bolt C

Install in the reverse order of removal.

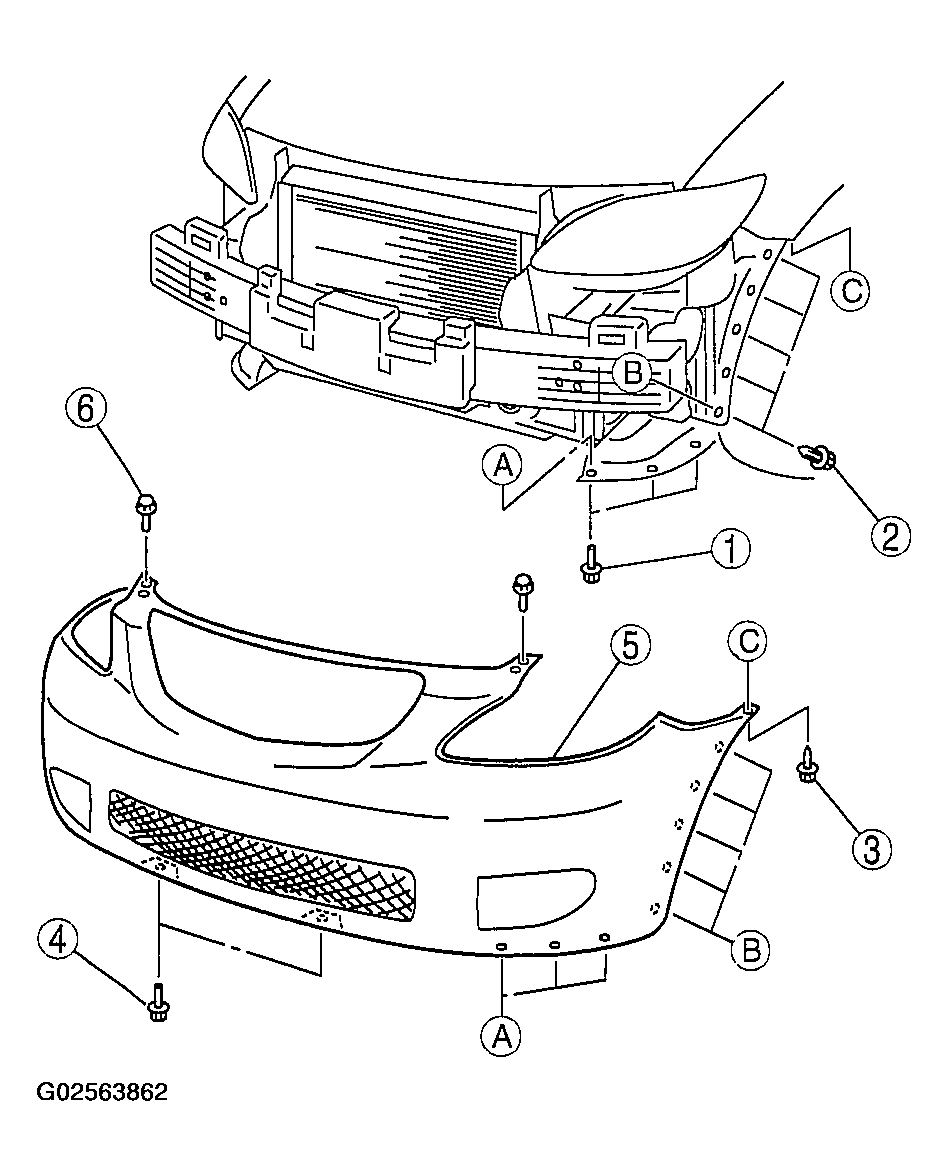

Fig 2: Removing/Installing Front Bumper - Sports
Courtesy of MAZDA MOTORS CORP.
