Sliding Door Open Stopper And Controller Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear side trim (LH). (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove the sliding door open stopper cable from the fuel-filler lid opener. (See FUEL-FILLER LID AND OPENER REMOVAL/INSTALLATION .)
Remove the bolts and nut, and then disconnected the rod.

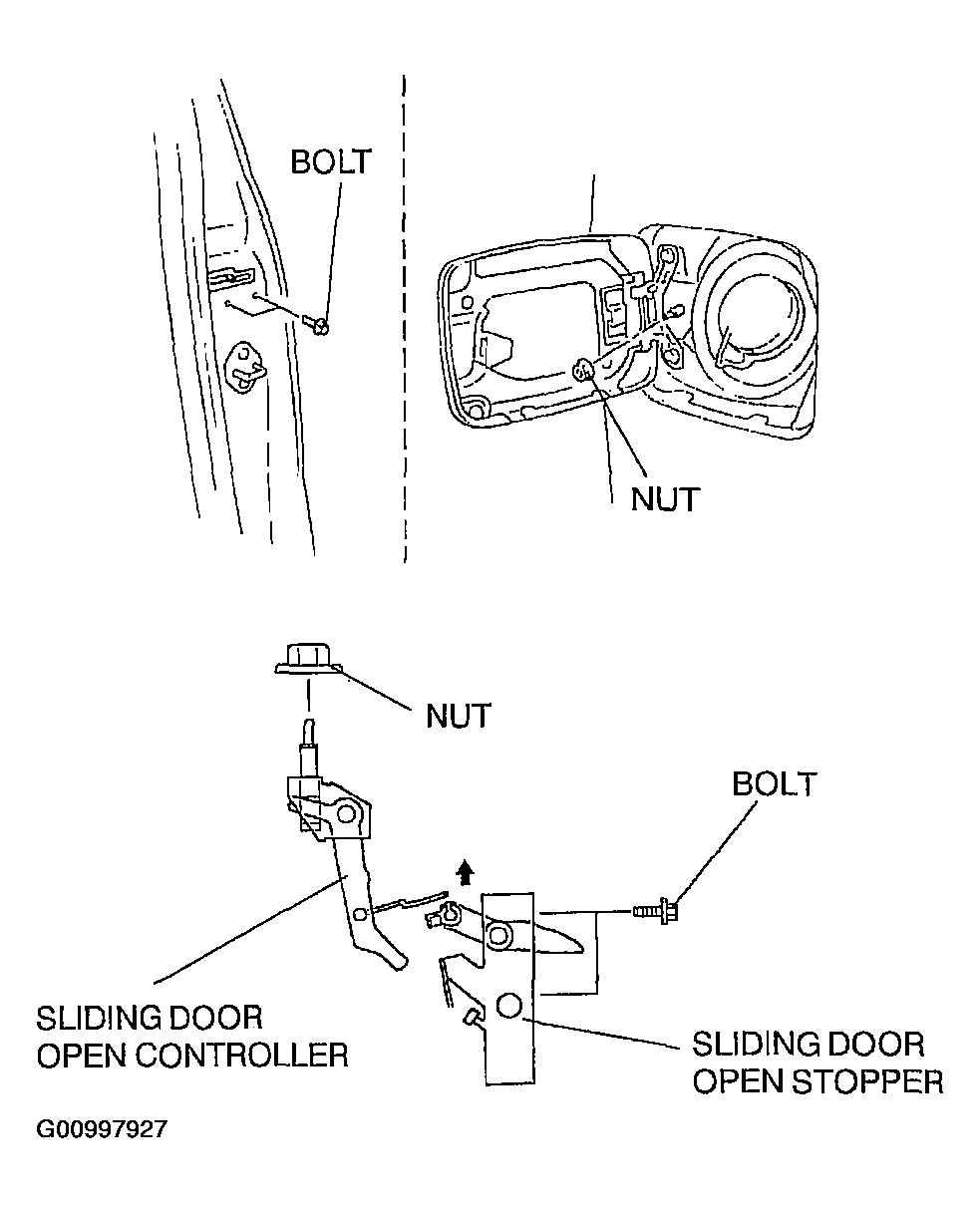

Fig 1: Removing Bolts & Nut To Disconnect Rod
Courtesy of MAZDA MOTORS CORP.
Remove the sliding door open stopper and sliding door open controller.
Install in the reverse order of removal.

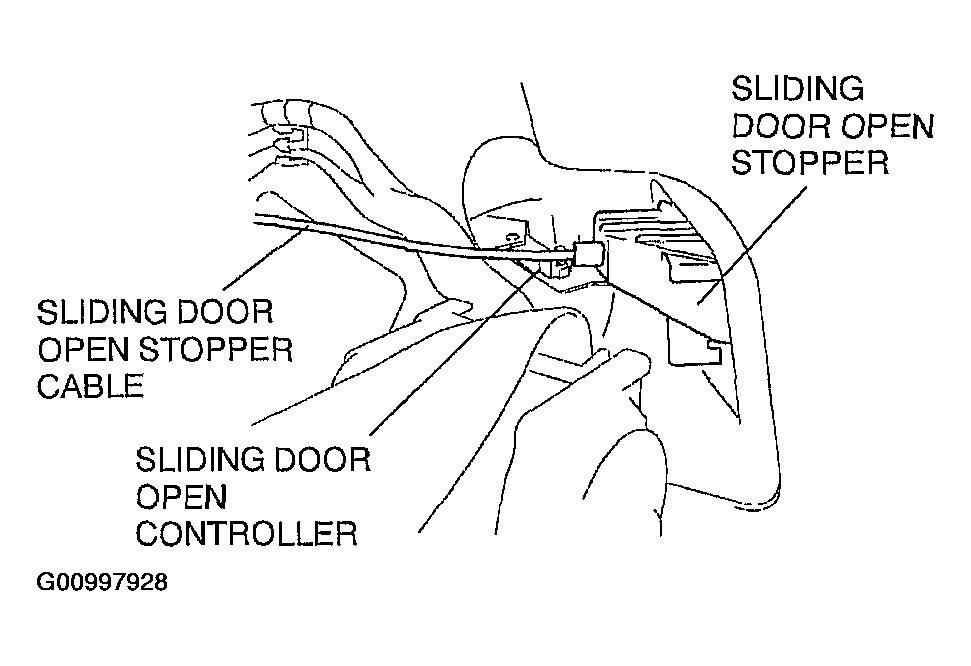

Fig 2: Removing Sliding Door Open Stopper & Sliding Door Open Controller
Courtesy of MAZDA MOTORS CORP.
