Fan Component Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator bracket.
Remove the radiator reservoir with the hoses still connected.
NOTE:
- For KL engine, move the upper radiator hose to lift the radiator.
While lifting the radiator, remove the lower bolt of the radiator cowling.

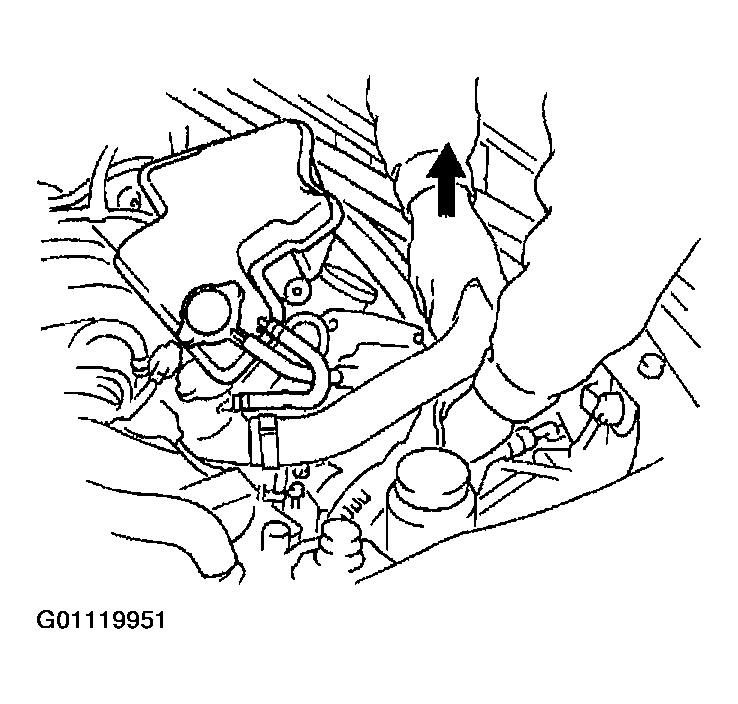

Fig 1: Removing Lower Bolt Of Radiator Cowling
Courtesy of MAZDA MOTORS CORP.
