Water Pump Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing belt. See TIMING BELT REPLACEMENT - 2.0L or TIMING BELT REPLACEMENT - 2.5L .
Drain the engine coolant. See ENGINE COOLANT REPLACEMENT .
Remove in the order indicated in the table.
Install in the reverse order of removal.

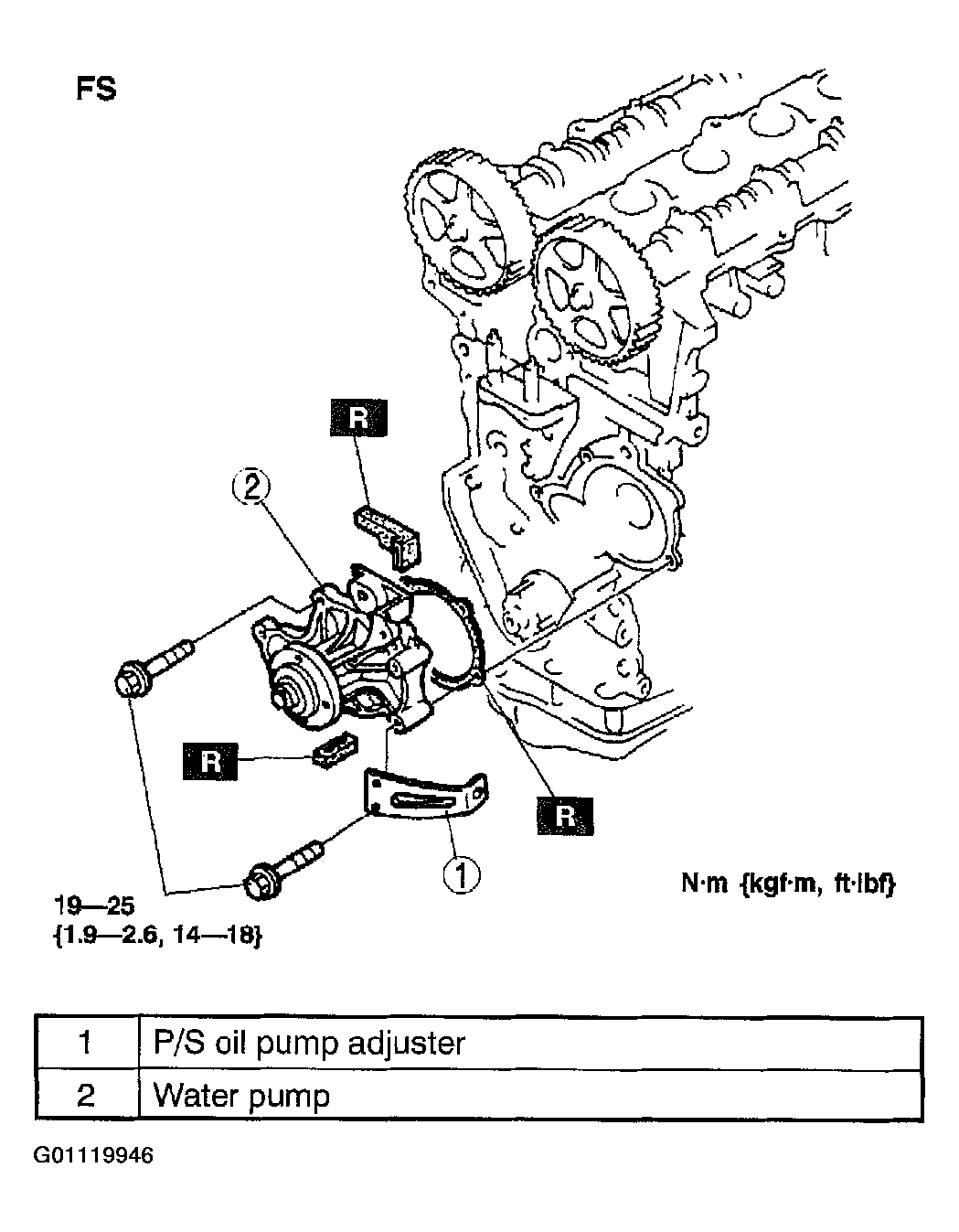

Fig 1: Identifying Water Pump Removal/Installation (2.0L)
Courtesy of MAZDA MOTORS CORP.

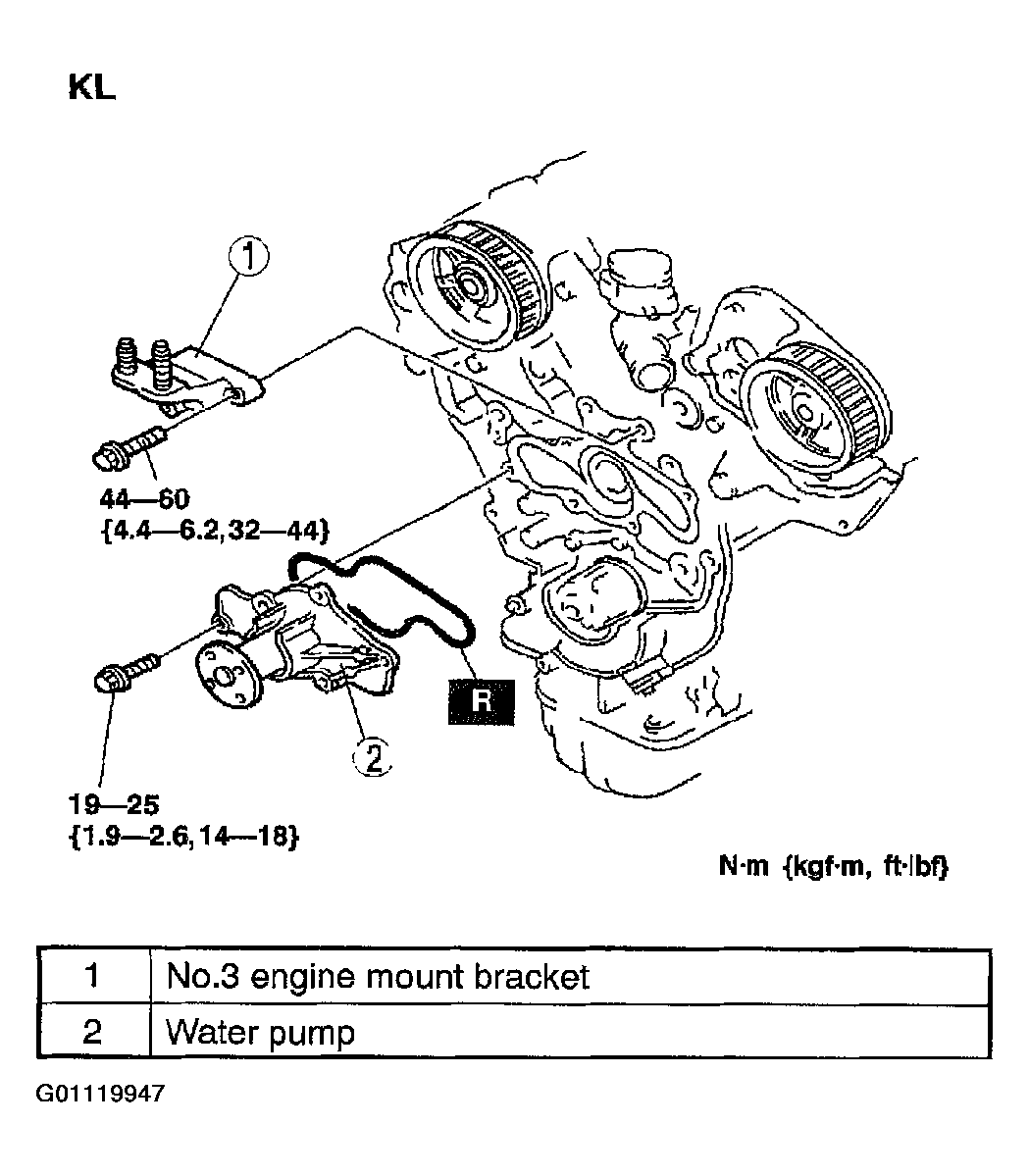

Fig 2: Identifying Water Pump Removal/Installation (2.5L)
Courtesy of MAZDA MOTORS CORP.
