Front Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the front side maker light connector.
Remove in the order indicated.

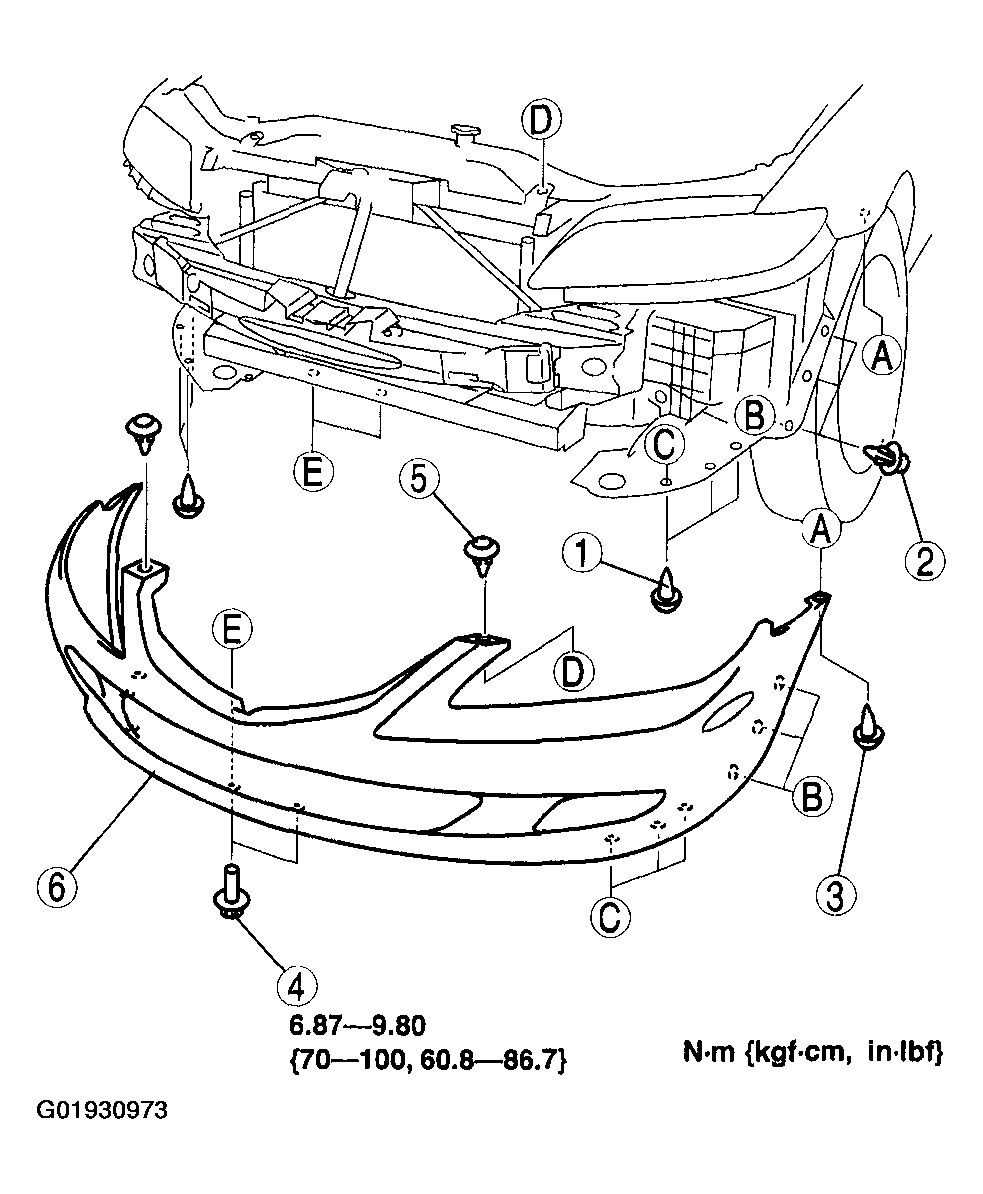

Fig 1: Identifying Front Bumper Components
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Bumper Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
