How To Use The Repair Information: Symbols

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

There are eight symbols indicating oil, grease, fluids, sealant, and the use of SST or equivalent, use. These symbols show application points or use of these materials during service.

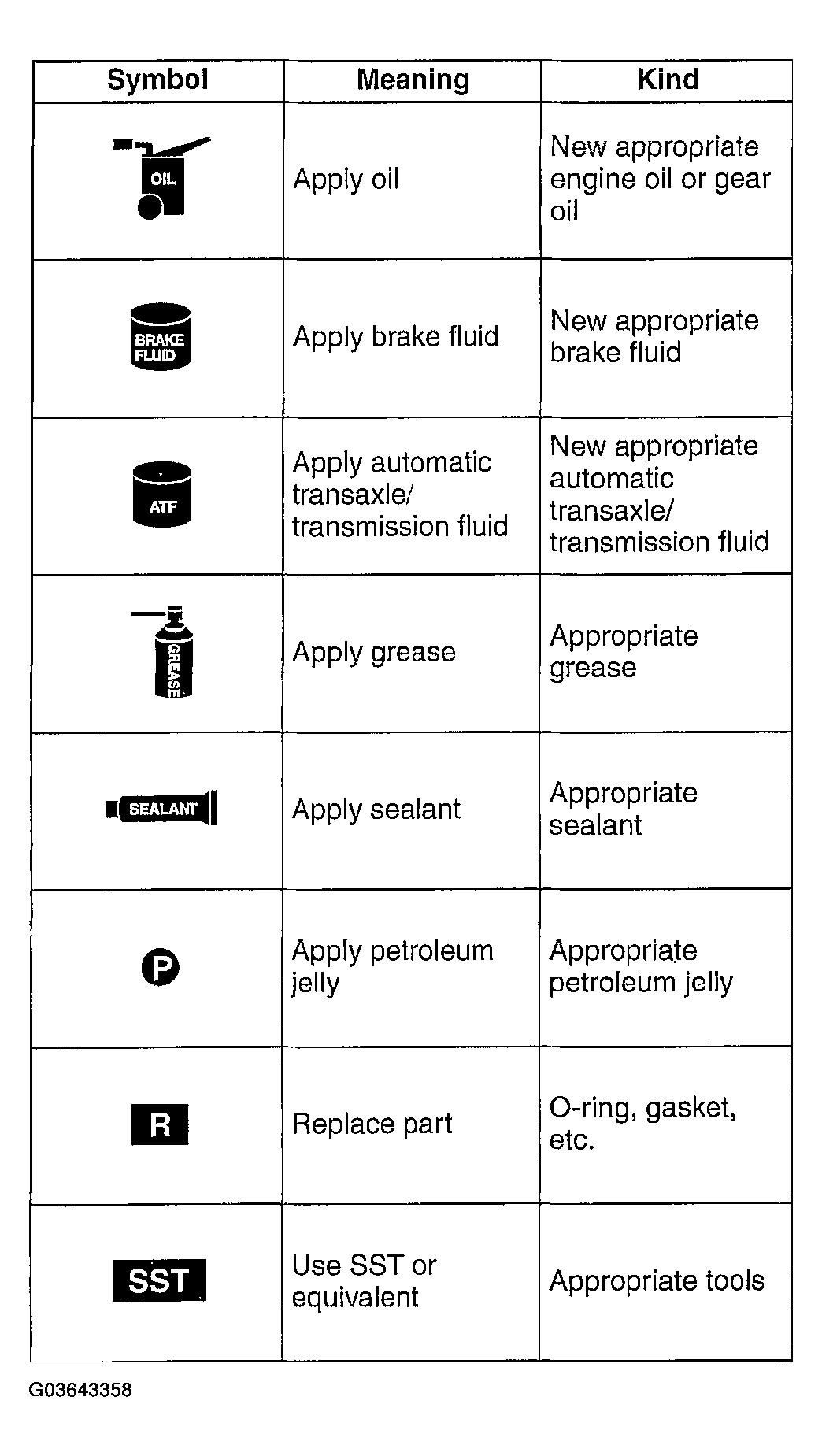

Fig 1: Symbols Meaning Chart
Courtesy of MAZDA MOTORS CORP.
