Drive Shaft Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

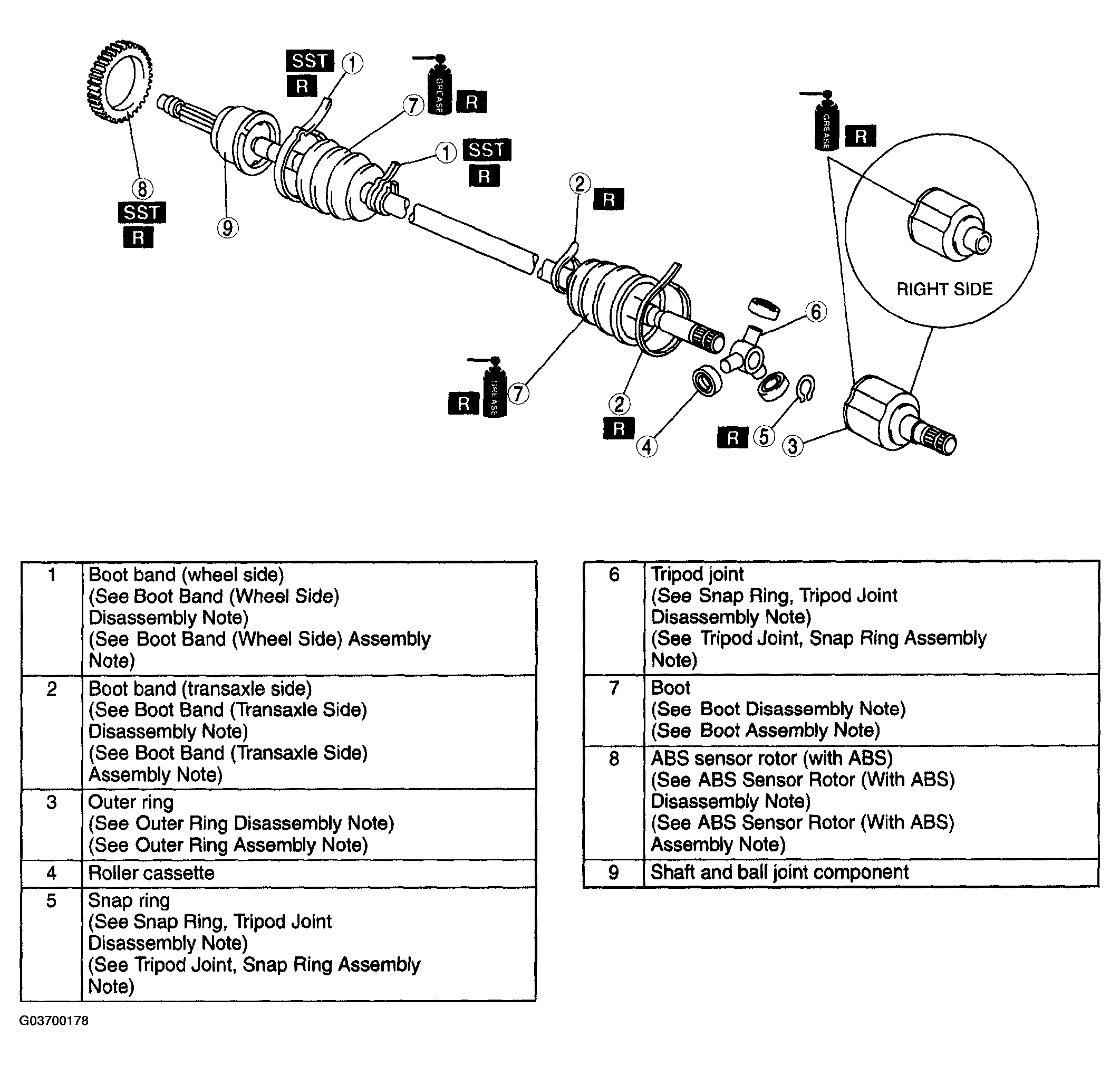

Fig 1: Disassembling Drive Shaft Components In Sequence
Courtesy of MAZDA MOTORS CORP.
