Front Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION .)
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Disconnect the front fog light connector.
  5. Remove in the order indicated in the table.

    Standard

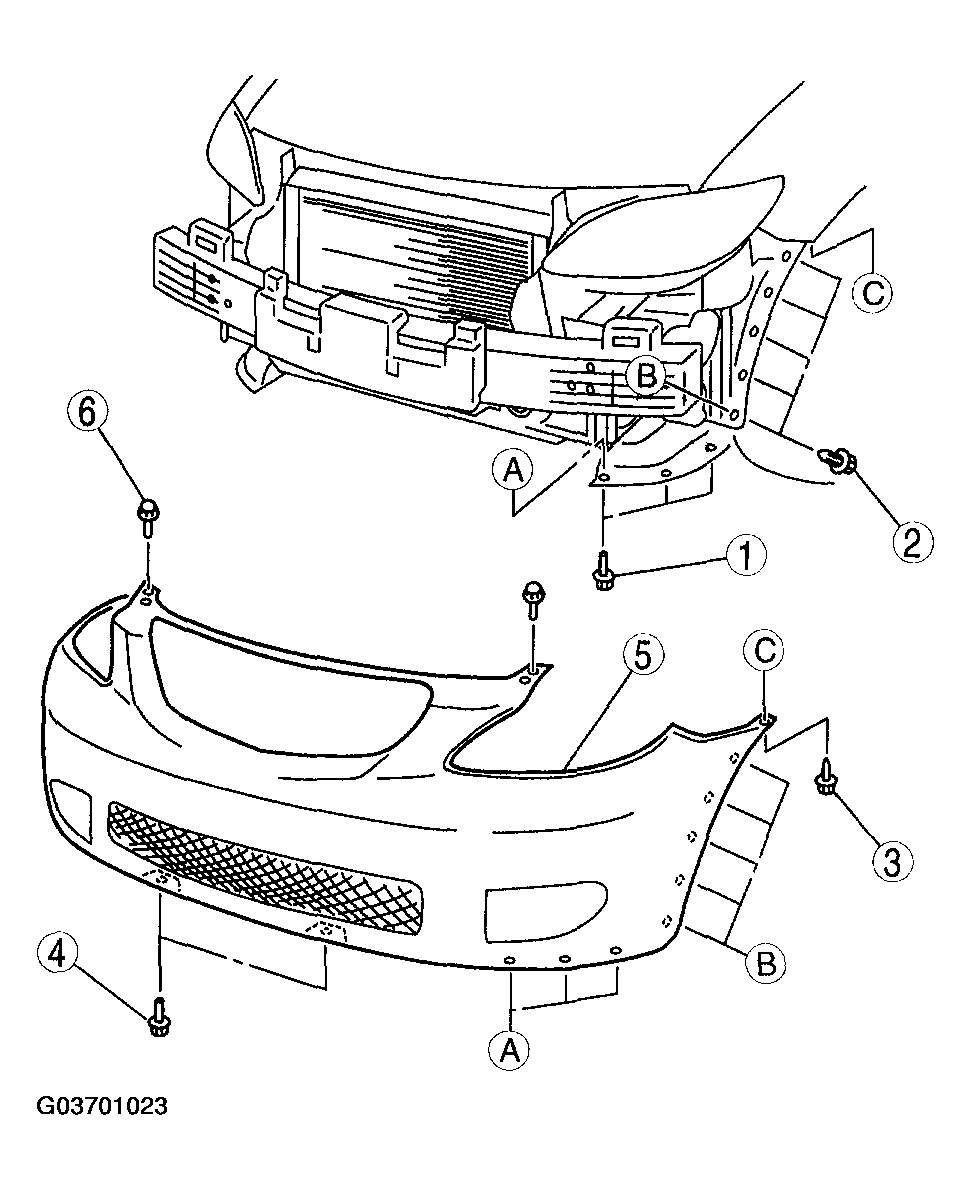

    Fig 1: Removing Front Bumper Screw And Bolts - Standard
    G03701023Courtesy of MAZDA MOTORS CORP.

    Sports

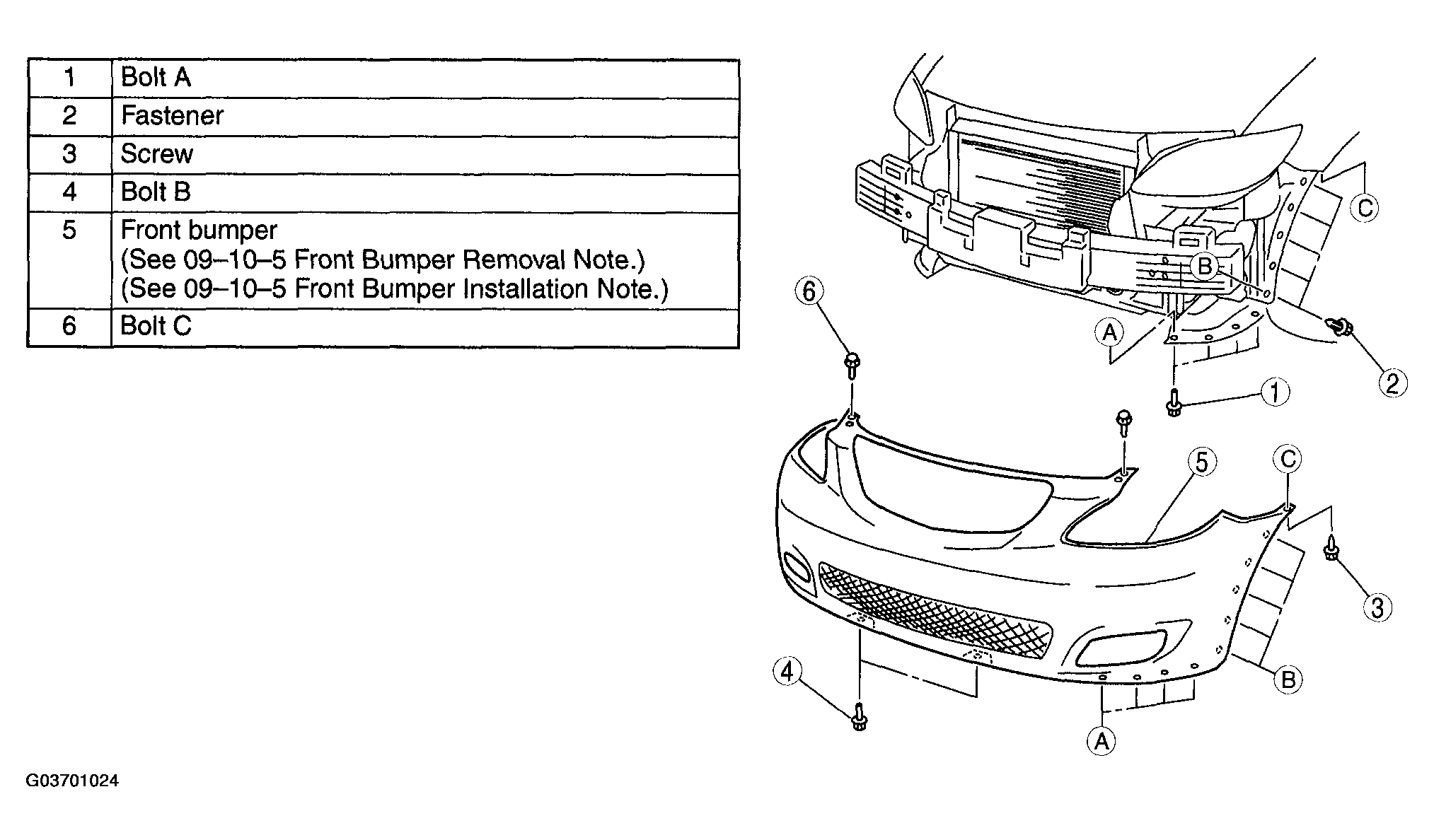

    Fig 2: Installing Front Bumper Screw And Bolts - Sports
    G03701024Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
